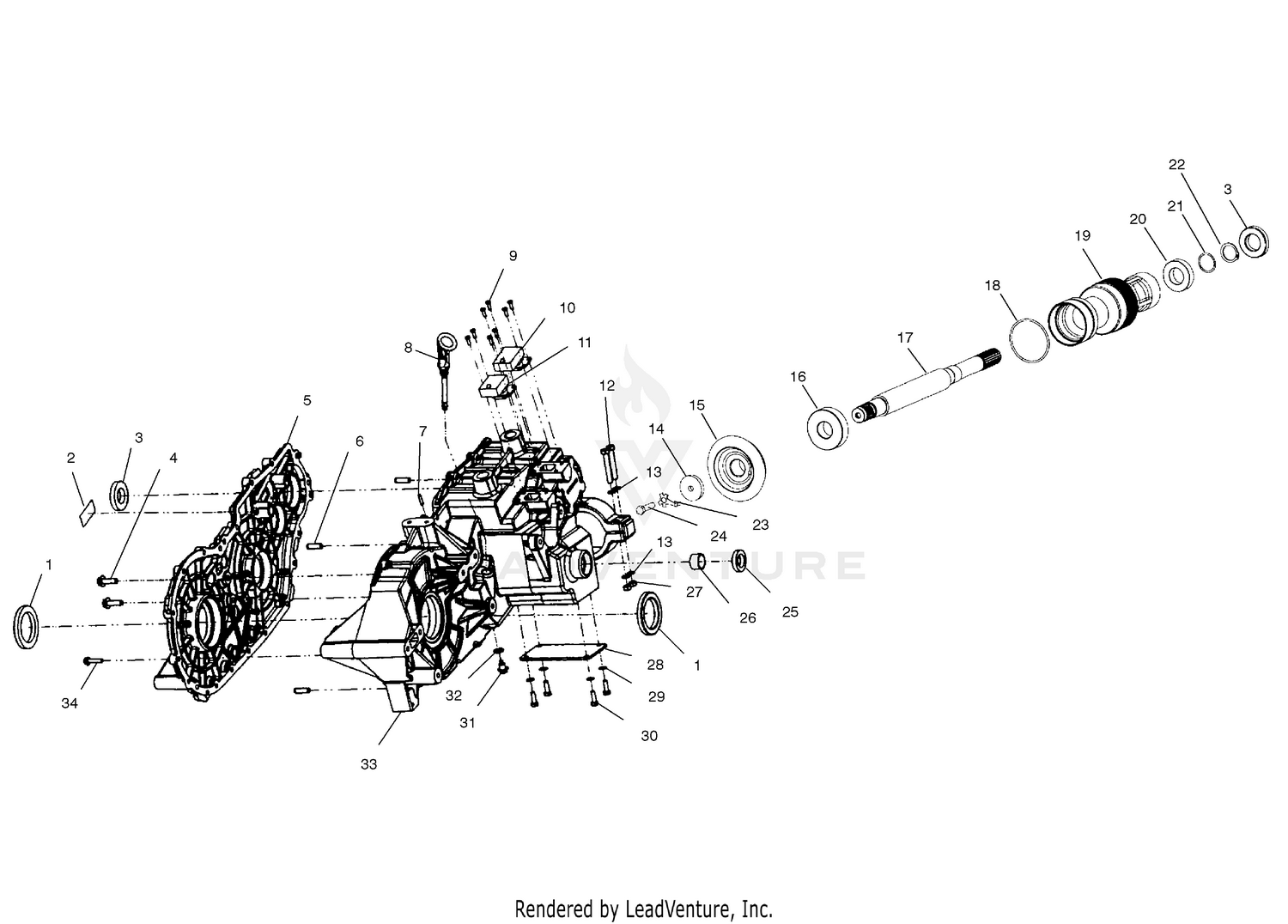

Gearcase (cases And Snorkel) - A00ch46ca (4954785478c014) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
Asm., Gearcase
-------
|
|||
|
Unavailable |
|||
|
#1
Seal, Triple Lip
3233256
Superseded by 3233878
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DECAL-SWITCH
3233636
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Seal, Triple Lip
3233248
Superseded by 3233788
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
3233252
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEARCASE-LH
3233716
|
|||
|
Unavailable |
|||
|
#6
PIN, DOWEL
3233247
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
VENT
3233037
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
DIPSTICK
3233475
|
|||
|
Unavailable |
|||
|
#9
SCREW
3233749
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Switch, 2 Position
3233617
Superseded by 3234001
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Switch, 3 Position
3233635
Superseded by 3234002
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
3233442
|
$2.79 | ||
|
Available to order. Add to View Price |
|||
|
#13
Washer
-------
|
|||
|
Unavailable |
|||
|
#14
WASHER
3233352
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR,31T,SNORKEL
3233476
|
|||
|
Unavailable |
|||
|
#16
Ball Bearing
-------
|
|||
|
Unavailable |
|||
|
#17
SHAFT,SNORKEL
3233446
|
|||
|
Unavailable |
|||
|
#18
O-RING
3233302
|
|||
|
Unavailable |
|||
|
#19
TUBE,SNORKEL
3233750
|
$236.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING,BALL
3233305
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER
3233353
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER
3233354
|
$3.19 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER
3233355
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER
3233356
|
$3.29 | ||
|
Unavailable |
|||
|
#21
SPACER
3233357
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RING,RETAINING
3233306
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT,LOCK SNORKEL GEAR
3233444
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
3233351
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAL-DUAL LIP 22X35X8
3233293
Superseded by 3234000
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BUSHING
3233292
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT,FLEXLOCK
3233291
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE,COVER
3233294
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER,LOCK
3233295
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW
3233296
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
Plug
3233253
Superseded by 3233777
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLUG, WASHER
3233254
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
GEARCASE,RH
3233748
|
$1,084.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW
3233026
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
