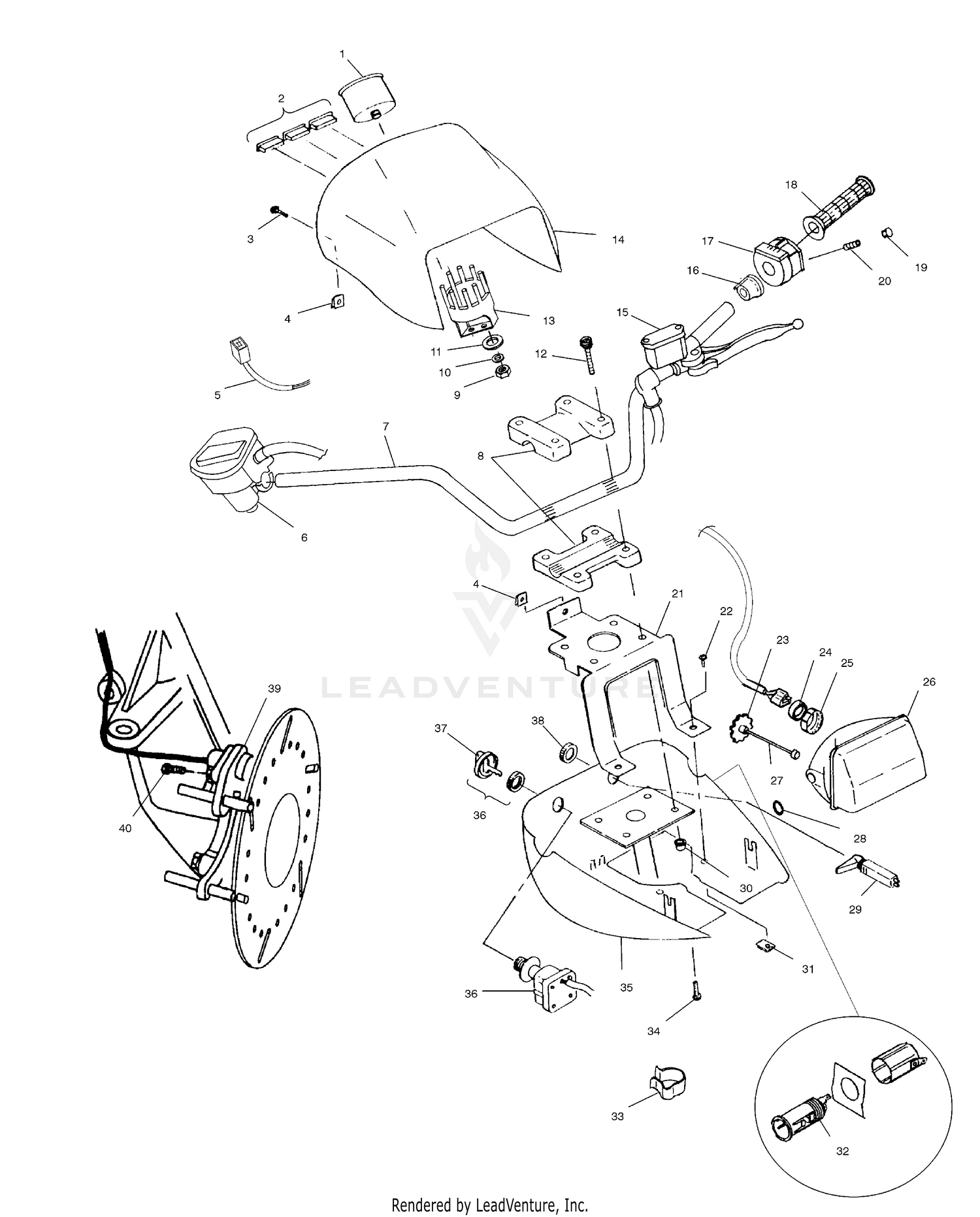

Handlebar And Headlight Pod - A00ch46ca (4954785478b011) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDO,KILO,3.38",6-PULSE,ASM. Substituted by 3280359
3280327
|
|||
|
Unavailable |
|||
|
#2
PLUG,INDIC.HOLE
5430967
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
INDIC"HOT TEMPERATURE"
4040053
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
INDIC"NEUT./REV."
4040054
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW(10)
7511881
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
7670086
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HARNESS,CTR.PNL.
2460668
|
$14.39 | ||
|
Available to order. Add to View Price |
|||
|
#6
Asm., Throttle Control
-------
|
|||
|
Unavailable |
|||
|
#7
TUBE-HANDLEBAR,GEN 4,POD,BLK
5242987-067
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
KIT-HANDLE BAR BLOCK
2200774
Superseded by 2202395
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BLOCK,H'BAR RETAINER,BLK
5630616-067
|
|||
|
Unavailable |
|||
|
#9
NUT, BRASS(10)
7541933
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, LOCK,(S.S.)(10)
7555868
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER,13/64X1/2X18GA,FL-Y
7558212
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW(10)
7515189
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP,BACK,ELEC.SPEEDO,3.38"
3280291
|
|||
|
Unavailable |
|||
|
#14
POD-HEADLIGHT,UPPER,BONNIE BLU
5433042-157
|
|||
|
Unavailable |
|||
|
#15
Asm., Master Cylinder
-------
|
|||
|
Unavailable |
|||
|
#16
SPACER,SWITCH,LH
5432926
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#17
SWITCH-HANDLEBAR,H/L/O,REV/OR
4010262
|
$254.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Grip, Handlebar
5431030
Superseded by 5433834-070
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PLUG,HOLE(10)
5432952
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW,SET
7517625
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET, POD MOUNTING, BLACK
5240586-067
Superseded by 5244969-329
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW(10)
7517317
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
KNOB,ADJUSTING
4032079
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOOT, HEADLIGHT
5411120
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
COLLAR,LOCK
4032077
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
LENS&REFLECTOR ASM.
4032075
|
$77.99 | ||
|
Unavailable |
|||
|
#26
BULB,QUARTZ.H/L,INDY
2870448
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
NOT AVAILABLE
4032078
Superseded by 9999999
|
|||
|
Available to order. Add to View Price |
|||
|
#28
O RING
5410163
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CABLE-FUEL SHUT OFF
7080757
|
|||
|
Unavailable |
|||
|
#30
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT,U-TYPE(10)
7670089
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
RECEPTACLE-POD MNT,12 VOLT
4010283
|
$18.59 | ||
|
Unavailable |
|||
|
#33
CLIP,CABLE RETAIN,(10)
7080631
|
|||
|
Unavailable |
|||
|
#34
SCREW(10)
7522021
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
POD,HEADLIGHT,LOWER,BLK
5433366-070
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Switch, Ignition
4110264
Superseded by 4012163
|
$134.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BLANK, KEY, SERIES 2000, 2100, 6700, 6800
4010278
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Blank, Key, Series 2200, 2300, 2700, 2800.
4010321
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Cover-Key
5433534
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT
7080229
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
SENSOR,HALLEFFECT
4010298
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
CAP-HALL SENSOR
5132382
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
SCREW
7517658
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
