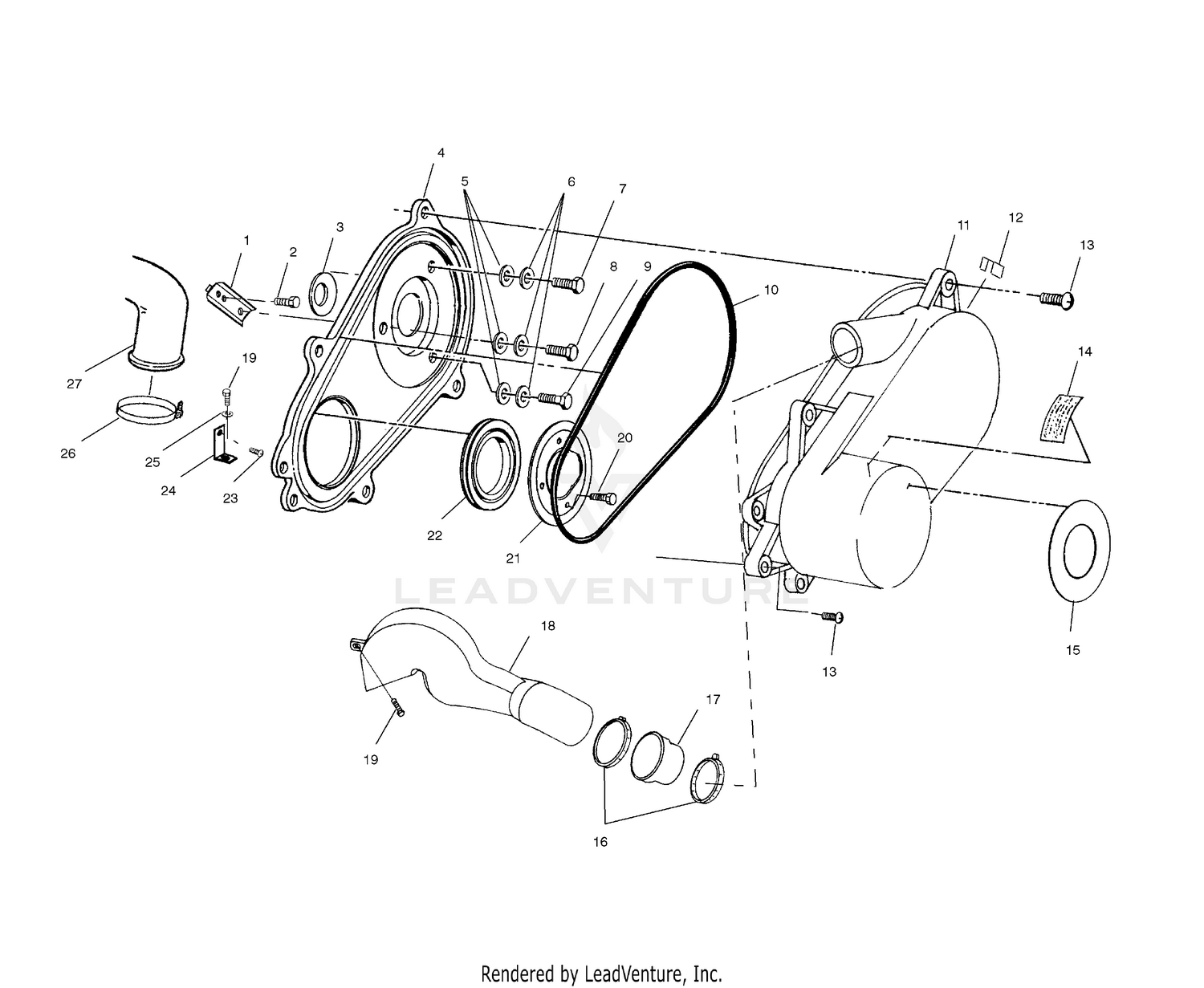

Clutch Cover - A00ch46ca (4954785478c004) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRKT,R.CLUTCH CVR,BLK.
1040519-067
|
|||
|
Unavailable |
|||
|
#2
BOLT(10)
7512240
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SEAL-CLUTCH COVER,TRANSMISSION
5411901
|
|||
|
Unavailable |
|||
|
#4
DESC NOT_AVAILABLE
2201573
|
|||
|
Unavailable |
|||
|
#5
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER(10)
7552605
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT(10)
7512247
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT(10)
7512277
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT(10)
7512278
|
$2.99 | ||
|
Unavailable |
|||
|
#10
SEAL,CLUTCHCOVER
5521301
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Cover, Clutch, Outer, Black
5433451-328
Superseded by 5438142-070
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP,CLUTCH COVER(10)
7670051
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW(10)
7512094
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DECAL,CLUTCH COVER Substituted by 7078689
7074946
|
|||
|
Unavailable |
|||
|
#15
DECAL"AUTO./EBS",CLUTCH
7077666
|
|||
|
Unavailable |
|||
|
#16
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOOT,DUCT,HI-FLOW
5411489
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DUCT-CLUTCH OUTLET,16.6
5432947
Superseded by 5433980
|
$41.19 | ||
|
Unavailable |
|||
|
#19
BOLT(10)
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Bolt & Washer
-------
|
|||
|
Unavailable |
|||
|
#21
Bracket, Clutch Seal
5240409-067
Superseded by 5242046
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Seal, Cover Case
5410575
Superseded by 5412637
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW(10)
7512095
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BRKT-CLUTCH COVER,BLK
5241156-067
|
|||
|
Unavailable |
|||
|
#25
WASHER(10)
7555935
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP, NARROW BAND(10)
7080511
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Duct, Air Inlet, Clutch
-------
|
|||
|
Unavailable |
|||
