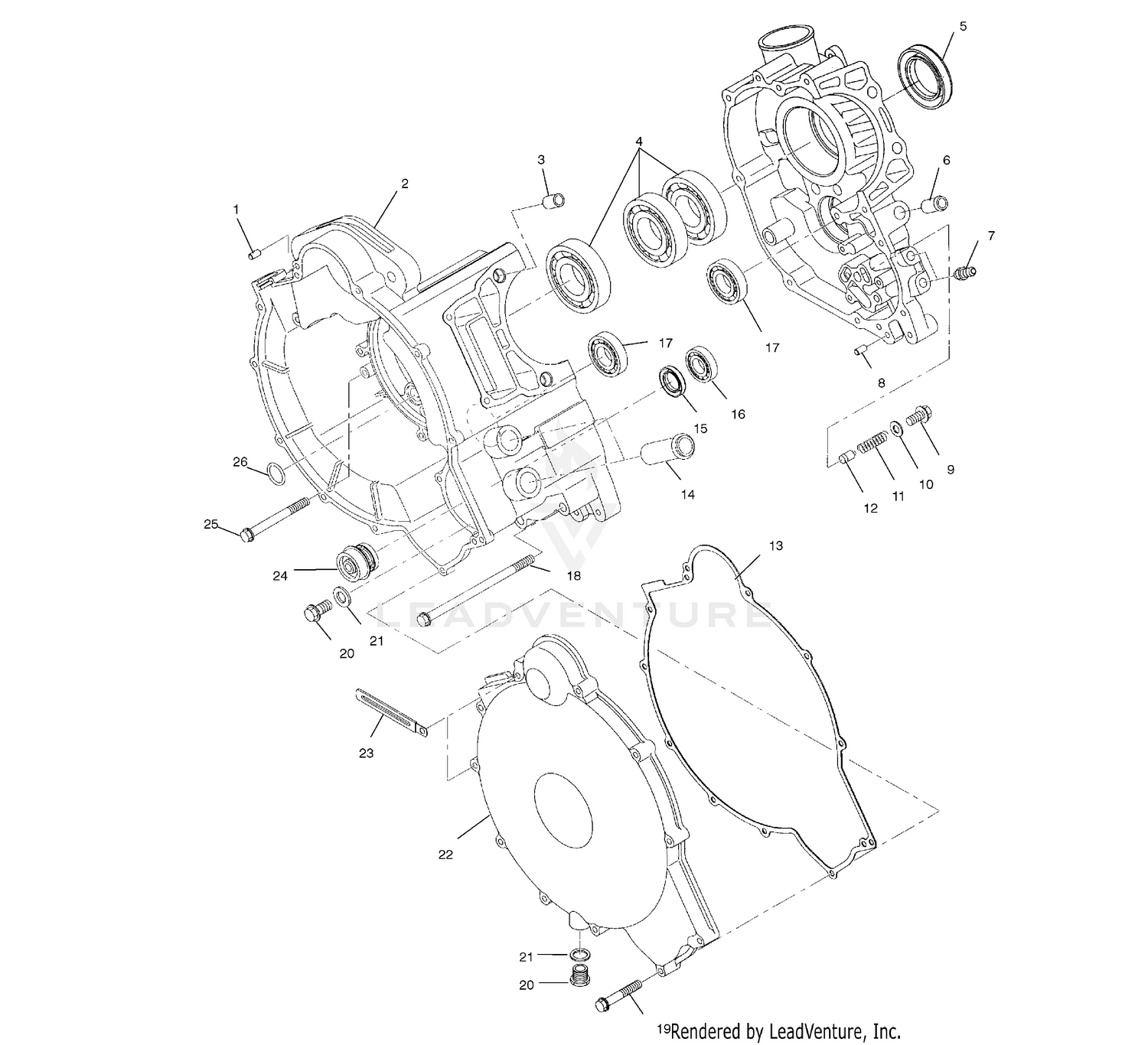

Crankcase - A00ch46ca (4954785478d005) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Pin, Dowel
3080103
Superseded by 3086838
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CRANKCASE,ASM.
3085946
|
|||
|
Unavailable |
|||
|
#3
Pipe, Knock
3084838
Superseded by 3087266
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING,BALL
3085947
|
|||
|
Unavailable |
|||
|
#5
SEAL, OIL
3084839
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE,AIR BREATHER
3085525
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
UNION
3084842
Superseded by 3090305
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, DOWEL
3084840
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG
3084845
|
|||
|
Unavailable |
|||
|
#10
GASKET,(ALUM.)(10)
3084846
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING
3084844
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Valve, One Way
3084843
Superseded by 3086810
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET,COVER
3085951
|
|||
|
Unavailable |
|||
|
#14
PIPE, WATER
3083452
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL, OIL
3084836
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BEARING,BALL
3084835
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING,BALL
3084834
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT,FLANGE
3085949
|
$6.79 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT&WASHER ASM.
3086087
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PLUG Substituted by 3086749
3083453
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET
3082956
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER-FLYWHEEL Substituted by 3087081
3087082
|
|||
|
Unavailable |
|||
|
#23
CLAMP
3083590
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SEAL,MECHANICAL
3084837
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT,FLANGE
3084841
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
3084847
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
