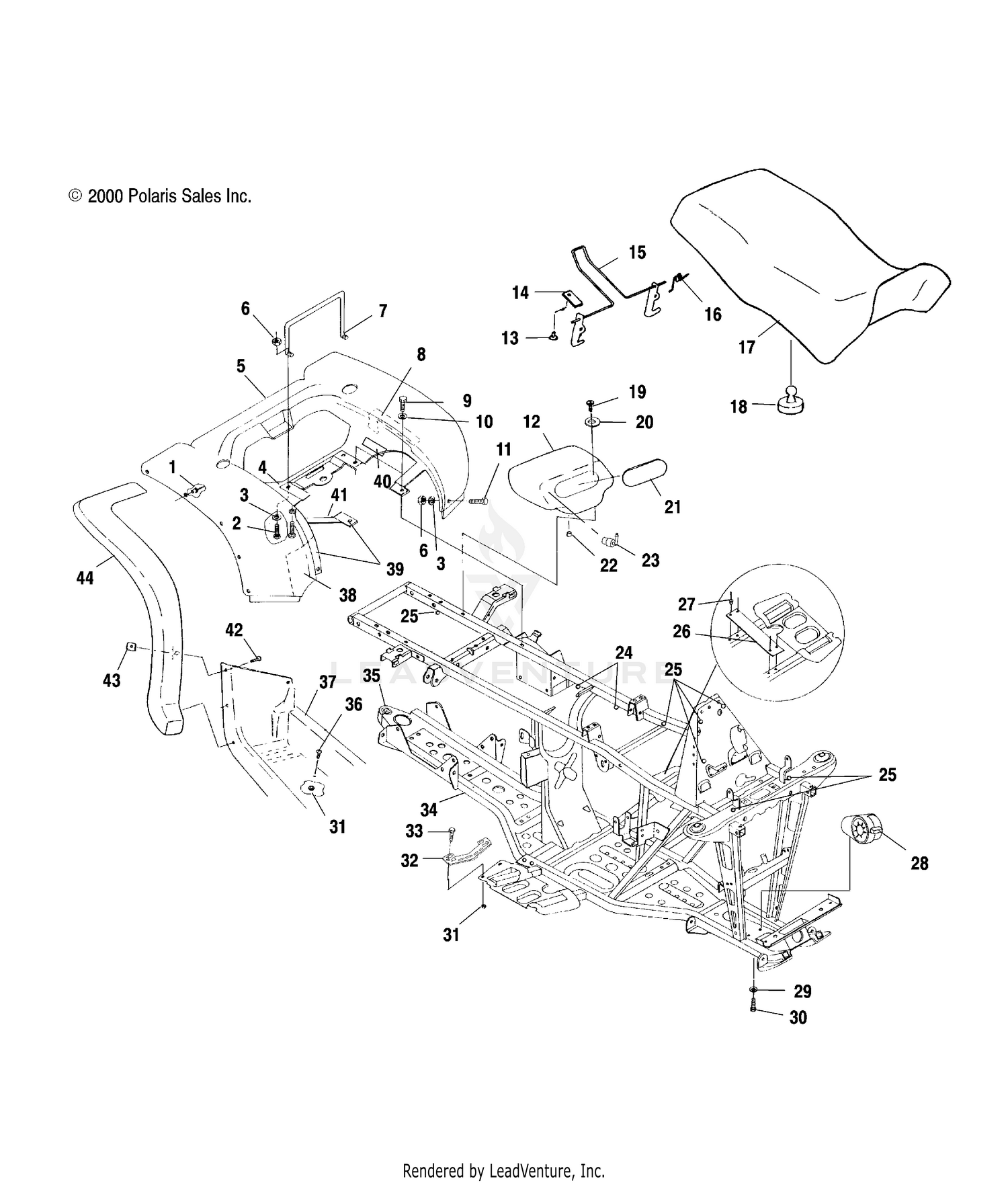

Rear Cab And Seat - A00ch46ca (4954785478a005) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RIVET(50)
7661645
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW(10)
7511930
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER(10)
7555792
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
FOIL,REAR CAB,REAR
5811107
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CAB,REAR,GEN IV,BASIC,BON.BLUE
5432988-157
|
$288.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT(10)
7541925
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
RETAINER,SEAT LATCH
5224592
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
FOIL,TAPE,3 X 12
5811308
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW(10)
7512242
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, FLAT(10)
7555859
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, MACH, PAN HEAD PHIL
7512085
Superseded by 7519641
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOX,TOOL
5432875
|
|||
|
Unavailable |
|||
|
#13
BLIND RIVET(50)
7621403
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET,LEVER RETAINER
5211033
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
LATCH,SEAT
1040387
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, LATCH
7041370
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Asm., Seat, Black
2682441-070
Superseded by 2683222-070
|
$524.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Asm., Seat Cover w/White Decal
2681747-070
Superseded by 2684055
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
FOIL,SEATBASE,LG.
5811104
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
FOIL,SEATBASE,SM.
5811105
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#18
BUMPER, RUBBER
5410414
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCR-1/4-20X.88,HXWR TAPR,GR5,Y
7517375
Superseded by 7517312
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
COVER, TOOLBOX
5431787
|
$17.49 | ||
|
Unavailable |
|||
|
#22
CAP,DRAIN
5410896
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
FITTING,VENT,1/8"
7052192
|
|||
|
Unavailable |
|||
|
#24
CLIP-ROUTING
7670109
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP,ROSEBUD
4020149
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
GUARD,CLUTCH,BLK
5242953-067
|
|||
|
Unavailable |
|||
|
#27
RIVET,INTERLOCK,B(50)
7661638
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
Asm., Front Housing
-------
|
|||
|
Unavailable |
|||
|
#29
WASHER(10)
7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW(10)
7512492
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPACER,FOOTWELL
5432280
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW
7517377
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
FRAME,DIESEL,BLK [No Longer Available]
1013002-067
|
|||
|
Unavailable |
|||
|
#35
DECAL-HITCH (1225)
7078261
|
|||
|
Unavailable |
|||
|
#36
SCREW(10)
7517376
Superseded by 7512279
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
FOOTWELL-NYLON,RH,BLK
5433219-070
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
FOOTWELL,LH,BLK,NYLON
5432221-070
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
FOIL FOAM
5811111
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
FOIL,FR,REAR CAB
5811106
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
DECAL,FILT.ELEMENT,4-S
7077446
|
|||
|
Unavailable |
|||
|
#41
FOIL-FOAM,(6X1)
5811087
|
|||
|
Unavailable |
|||
|
#42
BOLT(10)
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT, SPEED(10)
7670057
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
GUARD-MUD,REAR,LH,BLK
5431796
Superseded by 5431796-070
|
$66.99 | ||
|
Unavailable |
|||
|
#44
GUARD-MUD,REAR,RH,BLK
5431797
Superseded by 5431797-070
|
$66.99 | ||
|
Unavailable |
|||
