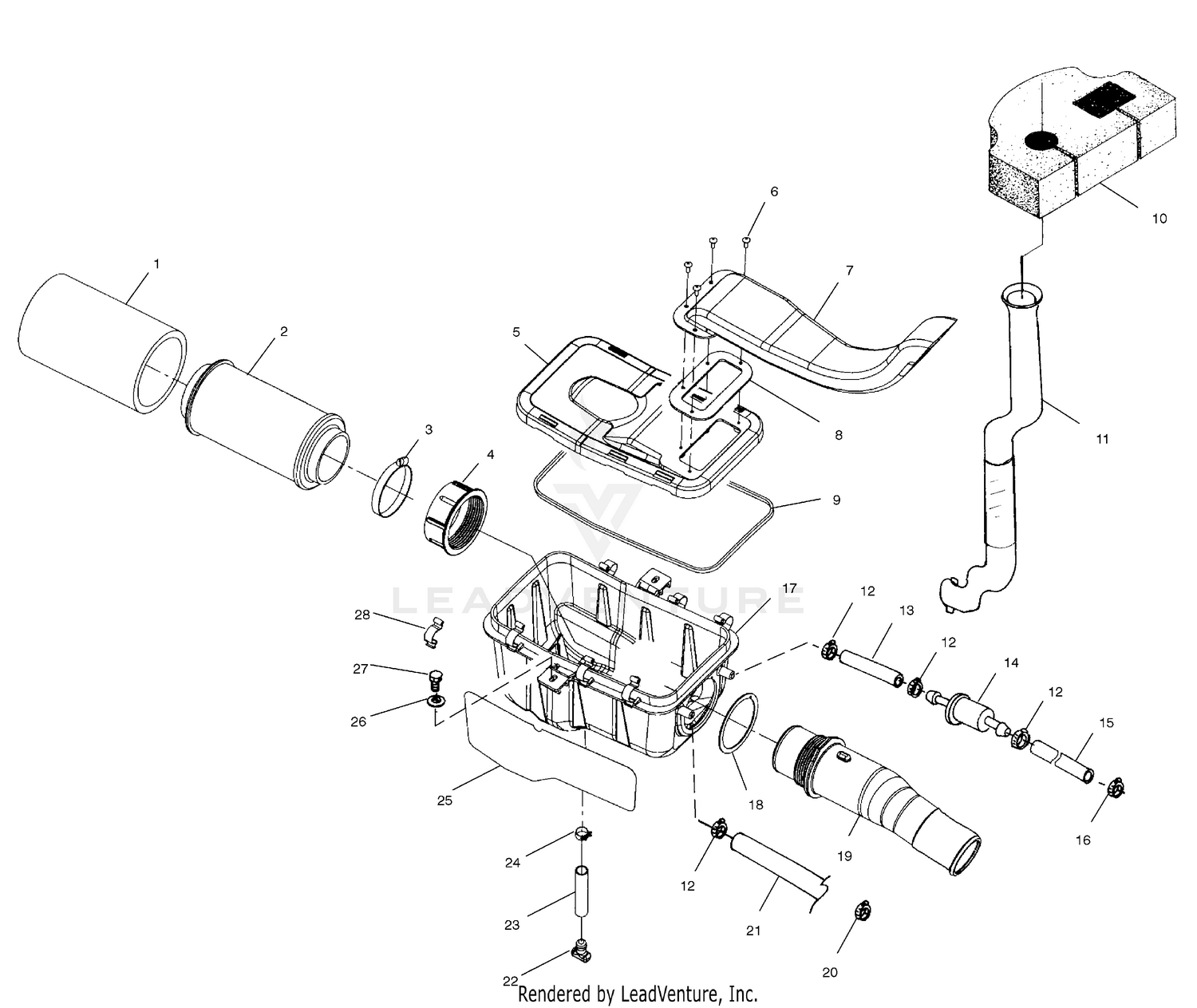

Air Box - A10ch46ca (4964376437a013) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Sleeve, Pre Cleaner
5811633
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FILTER, AIR INTAKE
7080595
Superseded by 7082101
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Clamp, Narrow Band
7080413
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Collar, Carb Inlet
5432601
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Cover, Air Box
5432868
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Screw
7517541
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
DUCT, AIR INLET
5433293
Superseded by 5436937
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Gasket, Intake
5411422
|
$8.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, COVER
5811482
Superseded by 5812829
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Seal, Foam
5811626
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Duct, Clutch Air Inlet
5432086
|
|||
|
Unavailable |
|||
|
#12
Clamp, Hose
7080699
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Line, Breather
8450073-600
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
Filter
2530029
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Hose, Breather
5411921
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Clamp, Hose
7080694
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Box, Air
5432774
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Gasket, Carb Inlet Duct
5830128
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Duct, Intake Inlet
5432884
|
|||
|
Unavailable |
|||
|
#20
Clamp
7080693
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
LINE, BREATHER
5411668
Superseded by 5413003
|
$40.19 | ||
|
Available to order. Add to View Price |
|||
|
#22
Plug, Trap
5432377
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Line, Fuel
8450059-150
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Clamp, Hose
7080650
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Foil
5811650
|
|||
|
Unavailable |
|||
|
#26
Washer, Flat
7558301
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
Screw
7515179
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP-AIR BOX
5242044
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
