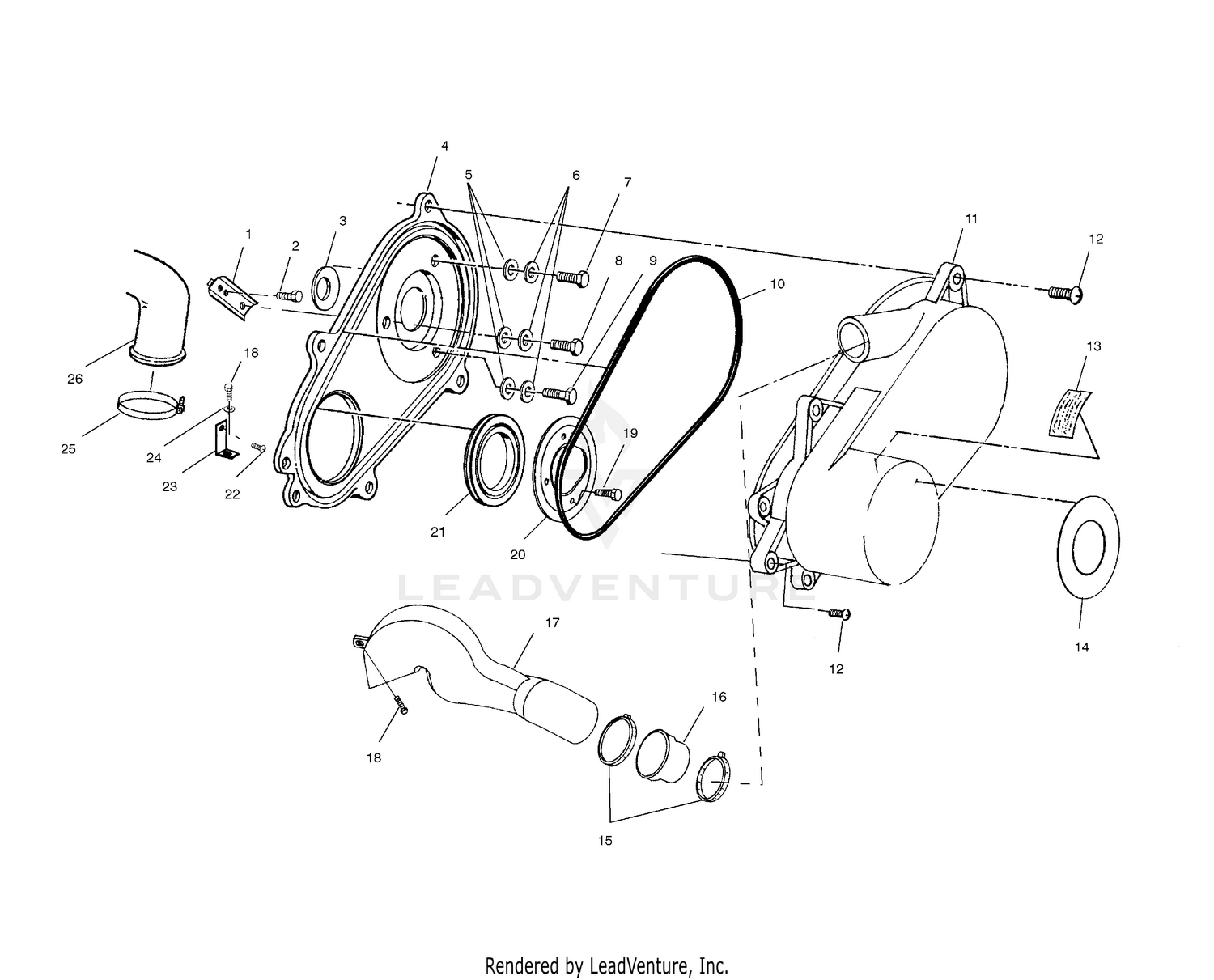

Clutch Cover - A10ch46ca (4964376437c002) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Bracket, Clutch Cover, Rear
1040519-067
|
|||
|
Unavailable |
|||
|
#2
Bolt
7512240
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Seal, Clutch Cover, Transmission
5410489
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Kit, Inner Clutch Cover (Incl. 10,12,21,22)
2201851
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER-.28X.62-.14(RBR-BK)-Z
7555748
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Washer, Split Lock
7552605
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Bolt
7512247
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Bolt
7512277
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Screw
7512278
|
$2.99 | ||
|
Unavailable |
|||
|
#10
Seal, Clutch Cover
5521301
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Cover, Clutch, Outer, Black
5433451-070
Superseded by 5438142-070
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Screw
7512094
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Decal, Clutch Cover
7078689
|
|||
|
Unavailable |
|||
|
#14
Decal, "Automatic/EBS", Clutch
7077666
|
|||
|
Unavailable |
|||
|
#15
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Boot, Duct
5411489
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Duct, Air Outlet
5433980
|
$41.19 | ||
|
Unavailable |
|||
|
#18
Screw
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
Bolt & Washer
3084205
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
Bracket, Clutch Seal
5242046-067
Superseded by 5242046
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Seal, Cover Case
5410575
Superseded by 5412637
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Screw
7512095
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Bracket, Clutch Cover
5241156-067
|
|||
|
Unavailable |
|||
|
#24
Washer
7555935
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Clamp, Narrow Band
7080511
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
Duct, Air Inlet, Clutch (See Airbox Pg. A13, Ref. 7)
-------
|
|||
|
Unavailable |
|||
