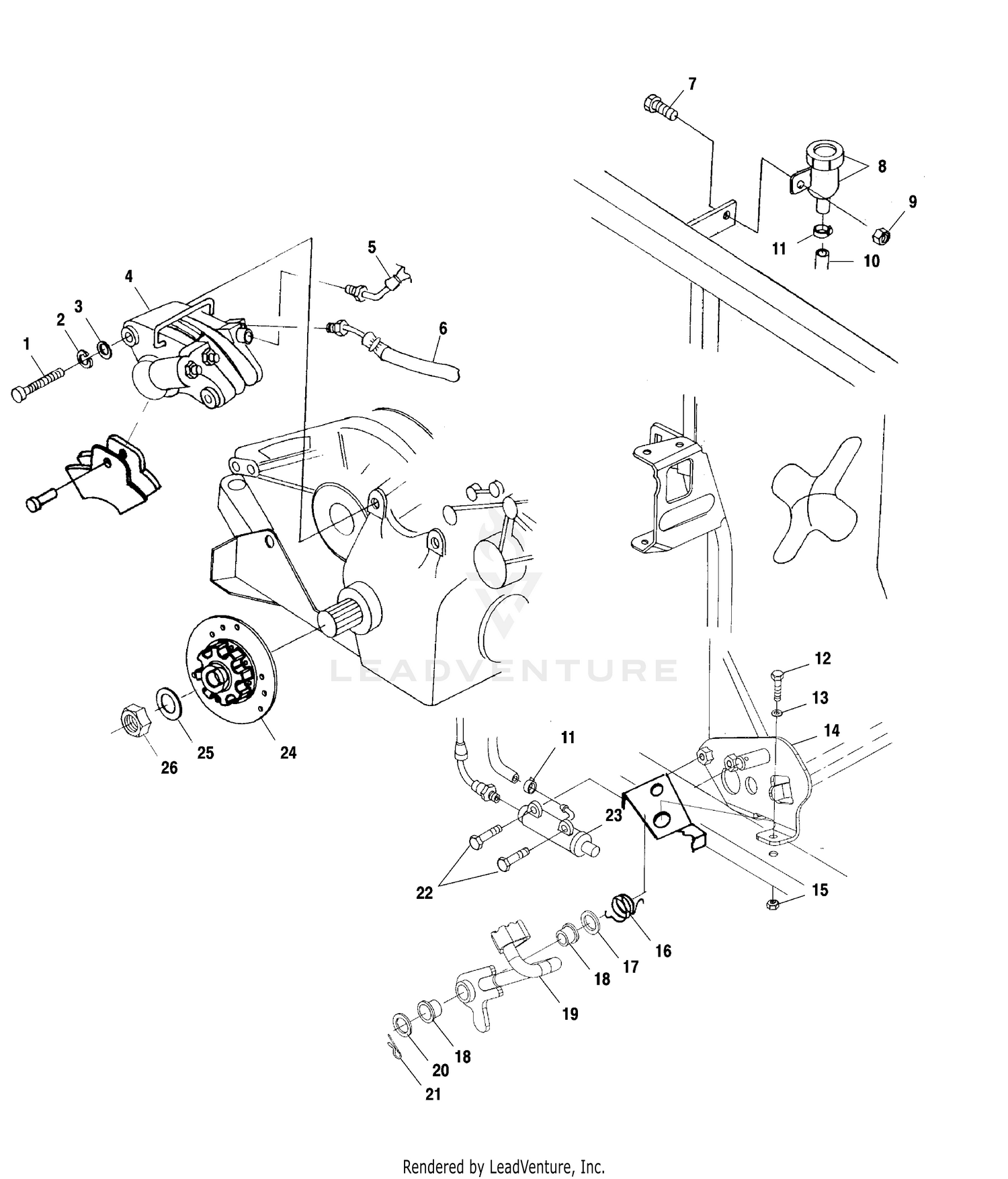

Rear Brake/foot Pedal - A10ch46ca (4964376437c007) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT(10)
7515497
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER(10)
7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER(10)
7555806
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ASM-CALIPER,BRAKE,RR,DH1P,AFT
1910553
|
$324.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Kit, Brake Pad Asm.
2201399
Superseded by 2202411
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
KIT,SEAL,CALIPER,WW
2201180
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BLEEDER REPLACEMENT,KIT
2201428
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
LINE,R.BRAKE,WWOOD
1910479
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
LINE,BRAKE CALIPER,W/FTNGS.
1910478
|
$89.99 | ||
|
Unavailable |
|||
|
#7
BOLT(10)
7512111
Superseded by 7512240
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RESERVOIR ASM,R.BRAKE
1930854
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT(10)
7542153
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE-RESERVOIR,1/4 ID,17IN.
1910326
|
|||
|
Unavailable |
|||
|
#11
HOSE CLAMP, RED
7080003
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT(10)
7512240
|
$4.99 | ||
|
Unavailable |
|||
|
#13
WASHER(10)
7558301
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRAKE MOUNT,DIESEL,BLK.
1012840-067
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT-LOCK(10)
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING-TORSION,BRAKE
7041750
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER(10)
7555919
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BUSHING-PEDAL PIVOT
5433189
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Rod, Brake
1012842-067
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER,SPRING
7556090
|
$3.29 | ||
|
Available to order. Add to View Price |
|||
|
#21
COTTER PIN(10)
7661401
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW(10)
7515158
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Asm., Master Cylinder, Brake, Rear
1910301
Superseded by 1911113
|
$214.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
DISC,BRAKE,1050
1910439
|
$269.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SLOTTED(10)
7571620
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT,NYLOC
7547046
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
