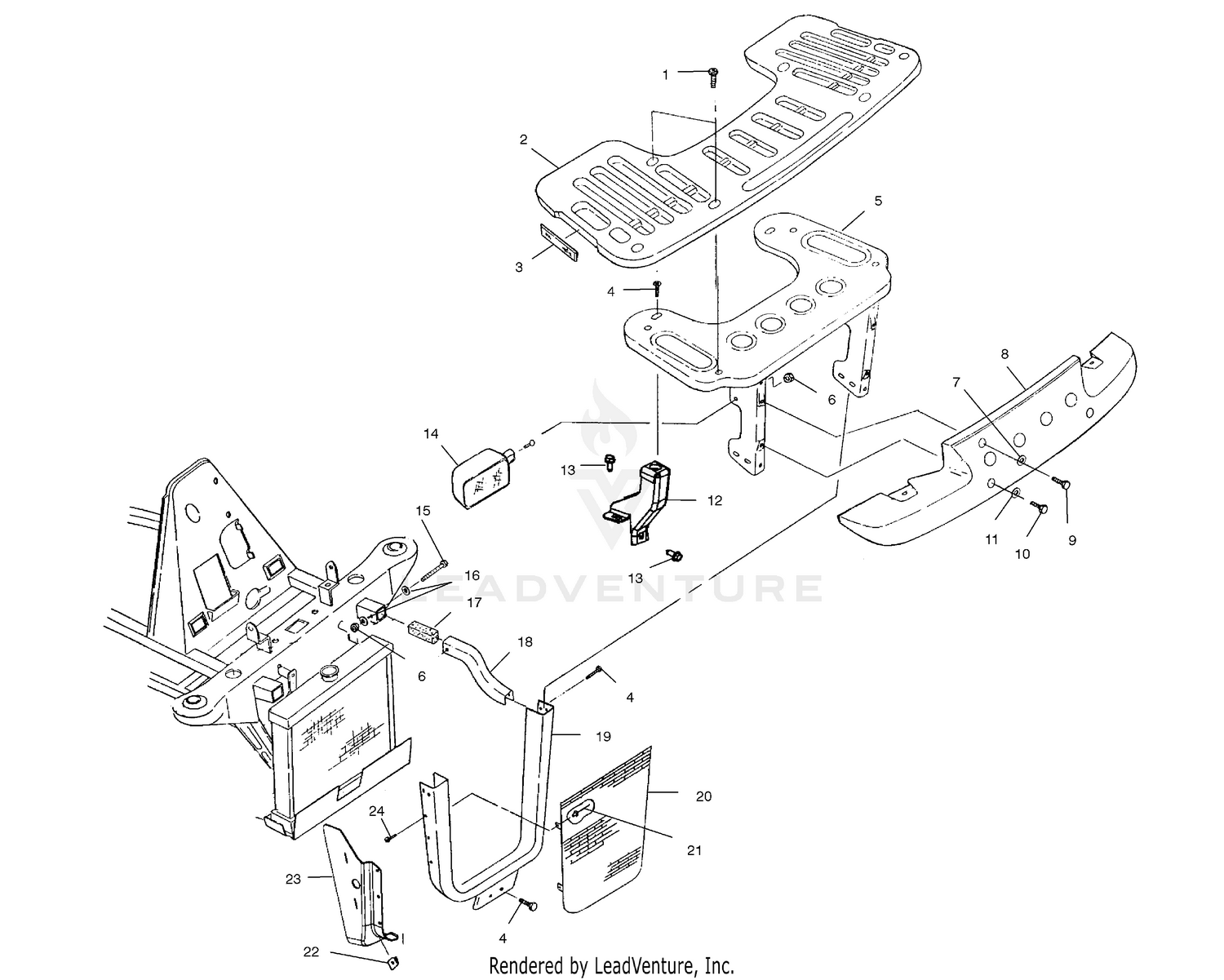

Front Rack And Bumper Mounting - A10ch46ca (4964376437a007) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Screw
7517685
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Asm., Rack, Front (Incl. Ref. 3 & Warning Decal)
2670180-070
|
$289.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Reflector, Amber (If built before 4/30/01)
2670071
|
$7.19 | ||
|
Unavailable |
|||
|
#3
Decal, Reflector, Amber (If built after 4/30/01)
7079926
|
$6.19 | ||
|
Unavailable |
|||
|
#4
Screw
7515399
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
Support, Front Rack
2200775
Superseded by 1014023-067
|
$226.99 | ||
|
Unavailable |
|||
|
#6
NUT-5/16-18 NYLOK-Y
7542324
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Washer
7558403
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Bumper
5432155-070
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Screw
7515391
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Screw
7515390
|
|||
|
Unavailable |
|||
|
#11
Washer
7555954
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Support, Front Rack, LH
1013744-067
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Support, Front Rack, RH
1013746-067
|
$94.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Screw
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Headlight, LH
2431014
|
$92.99 | ||
|
Unavailable |
|||
|
#14
Headlight, RH
2431015
|
$92.99 | ||
|
Unavailable |
|||
|
#14
Bulb, Replacement, 27W
4030059
|
|||
|
Unavailable |
|||
|
#15
Bolt
7512329
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-.344X.688X.063 FL-Y
7558402
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Plug, Frame
5810467
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Extension, Frame, LH
5244729-067
|
$164.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Extension, Frame, RH
5244730-067
|
$156.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Guard, Brush
5244731-067
|
|||
|
Unavailable |
|||
|
#20
Grill, Brush Guard
5240591-067
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
Rivet, Pop
7621330
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
Nut, U-Type
7670094
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Shield, Side, Radiator, LH
5433923
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Shield, Side, Radiator, RH
5433924
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Screw
7512097
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
