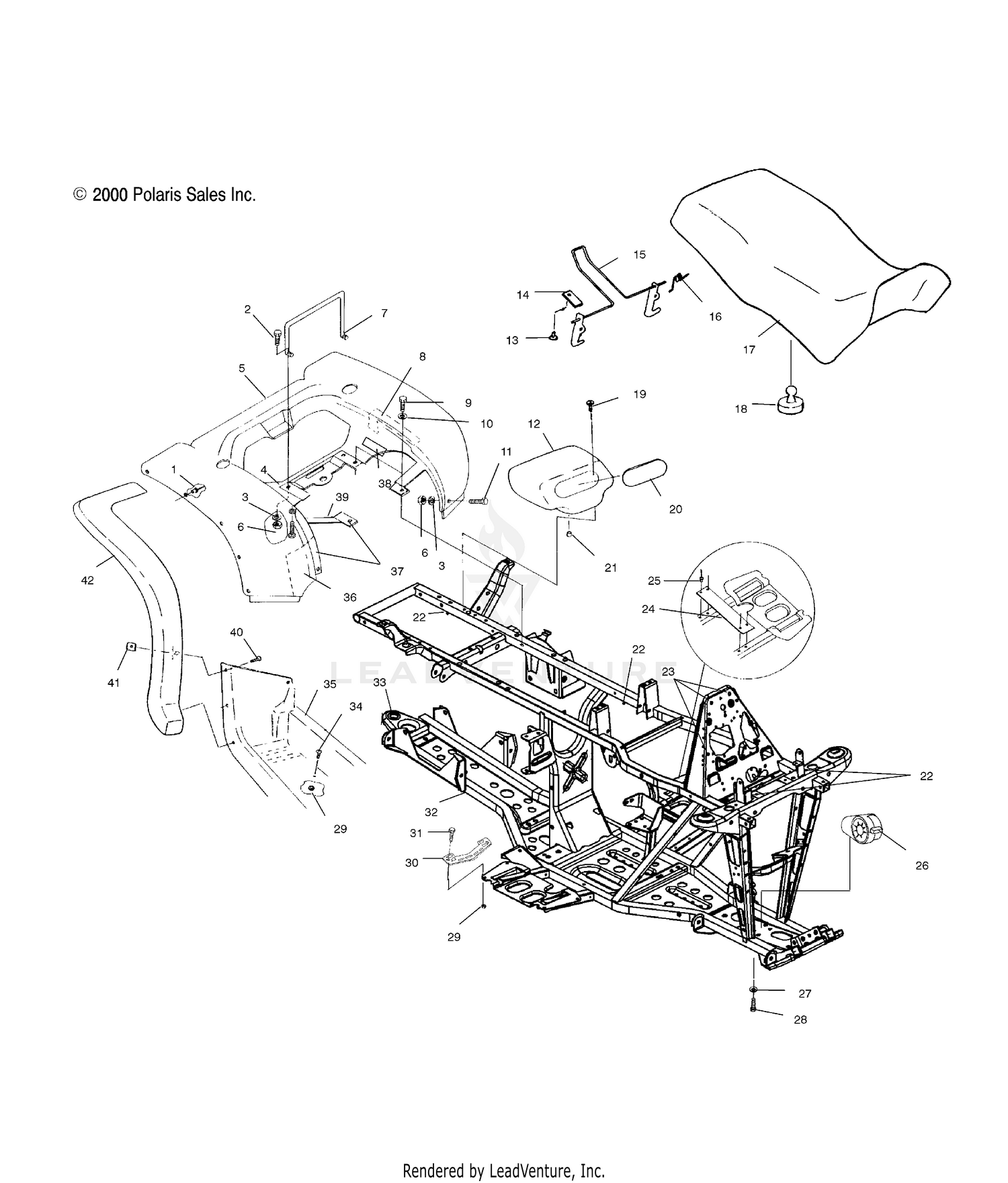

Rear Cab And Seat - A10ch46ca (4964376437a003) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Rivet, T-Lock
7661645
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
Bolt
7511930
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Washer
7555792
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Foil, Rear Cab, Rear
5811107
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
Cab, Rear, Bonnie Blue
5432988-157
|
$288.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
Nut, Nylok
7541925
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
Retainer, Seat Latch
5224592
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
Foil, Tape, Rear Cab
5811308
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Screw
7512242
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
Washer, Flat
7555859
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, MACH, PAN HEAD PHIL
7512085
Superseded by 7519641
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
Box, Tool
5432875
|
|||
|
Unavailable |
|||
|
#13
Rivet, Pop
7621403
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
Bracket, Lever Retainer
5211033
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
Latch, Seat
1040387
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Spring, Latch
7041370
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Asm., Seat, Black
2682441-070
Superseded by 2683222-070
|
$524.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Asm., Seat Cover w/White Decal
2681747-070
Superseded by 2684055
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Foil, Seat Base, Large
5811104
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Foil, Seat Base, Small
5811105
|
$12.39 | ||
|
Available to order. Add to View Price |
|||
|
#18
BUMPER-RUBBER
5412067
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCR-1/4-20X.88,HXWR TAPR,GR5,Y
7517375
Superseded by 7517312
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
Cover, Tool Box
5431787
|
$17.49 | ||
|
Unavailable |
|||
|
#21
Cap, Drain
5410896
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
Clip, Rosebud
4020149
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Clip, Rosebud
4020139
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Guard, Clutch
5242953-067
|
|||
|
Unavailable |
|||
|
#25
RIVET-3/16-.090-.290
7661637
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
Asm., Front Housing(See Front Housing Pg. D1 for Details)
-------
|
|||
|
Unavailable |
|||
|
#27
Washer, Spring Lock
7552603
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
Screw
7512492
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
Nut, Nylok
7542122
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
Spacer, Footwell
5432280
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
Screw
7517377
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Frame, Main
1013324-067
|
|||
|
Unavailable |
|||
|
#33
Decal, Hitch
7078261
|
|||
|
Unavailable |
|||
|
#34
SCREW(10)
7517376
Superseded by 7512279
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Footwell, LH, Black
5432221-070
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
Footwell, RH, Black
5433219-070
|
$284.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
Foil, Rear Fender
5811111
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
Foil, Rear Cab, Front
5811106
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Decal, Filter Element
7077446
|
|||
|
Unavailable |
|||
|
#39
Foil
5811087
|
|||
|
Unavailable |
|||
|
#40
Screw
7512232
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
Nut, U-Type Speed
7670057
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
Guard, Mud, Rear, LH
5431796-070
|
$66.99 | ||
|
Unavailable |
|||
|
#42
Guard, Mud, Rear, RH
5431797-070
|
$66.99 | ||
|
Unavailable |
|||
