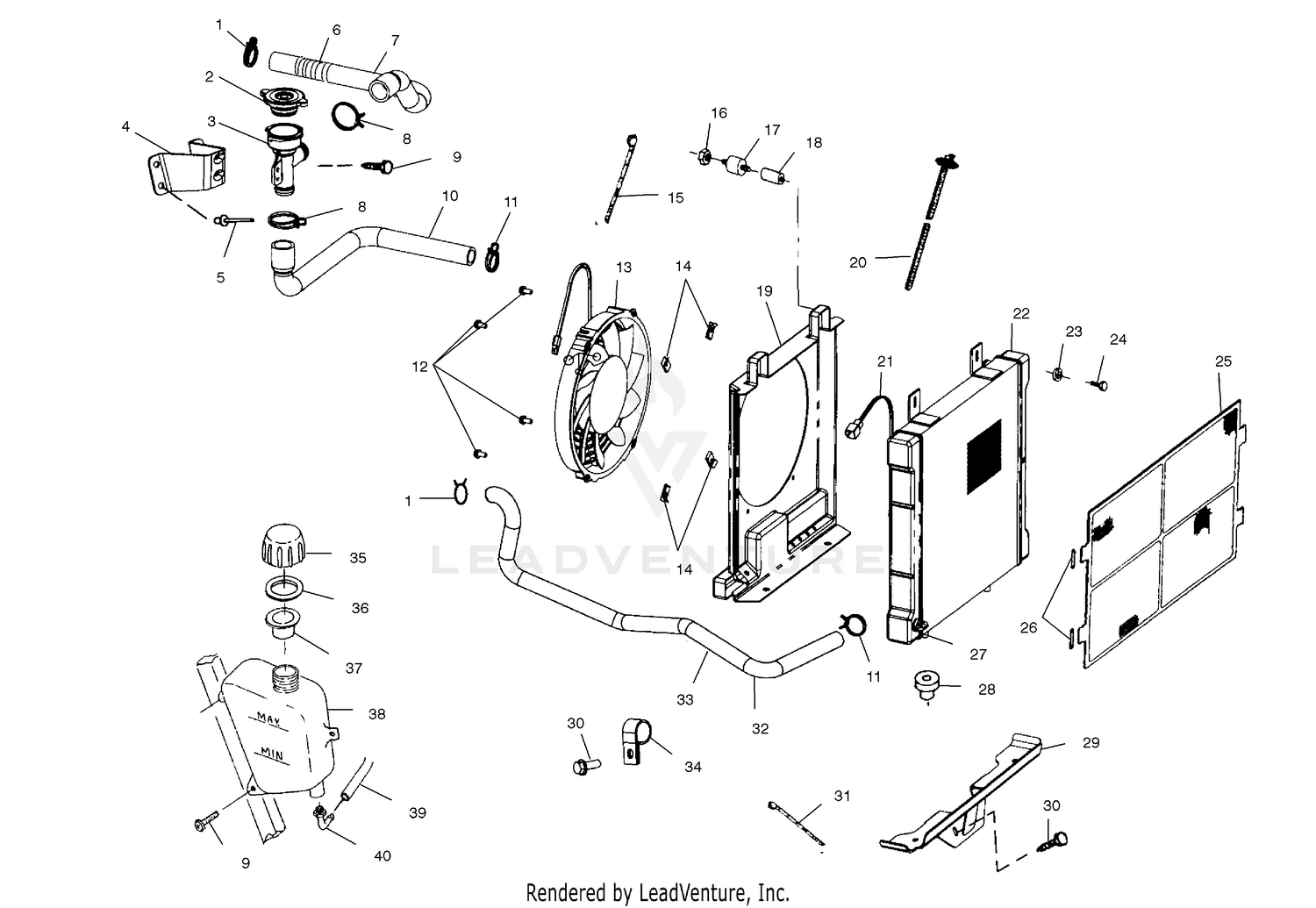

Cooling System - A10ch46ca (4964376437a009) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
Clamp, Hose
7080696
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, PRESSURE
1240044
Superseded by 1240508
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
Filler, Coolant
5433364
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
Bracket, Filler, Coolant
5243505-067
|
|||
|
Unavailable |
|||
|
#5
Rivet
7661638
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
Flexguard
5433948
|
|||
|
Unavailable |
|||
|
#7
Hose, Engine, Upper
5411783
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP, SPRINGBAND, BROWN
7080827
Superseded by 7080843
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
Screw
7512084
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
Hose, Filler Neck
5411632
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
Clamp
7080826
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
Screw
7517659
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
Asm., Fan and Motor
2410123
|
$225.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
U-Clip
7670111
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CABLE-TIE,25-76MM,WEATH.-RES.
7080492
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
Nutsert
7547069
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
Mount, Rubber
3110032
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
Spacer
5020572
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
Shroud, Fan
5433059
|
|||
|
Unavailable |
|||
|
#20
Cable Tie
7080890
|
$7.19 | ||
|
Available to order. Add to View Price |
|||
|
#21
Sensor, Thermal w/Harness
4010161
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
RADIATOR
1240045
Superseded by 1240533
|
$494.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
Washer, Split Lock
7552605
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
Screw
7512113
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
Cover, Radiator
5433317
|
$44.19 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-Ring
5410607
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
Valve, Drain
7052296
|
|||
|
Unavailable |
|||
|
#28
BUSHING-MOUNT,LOWER RADIATOR
5410584
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
Bracket, Radiator, Lower
5243503-067
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
Screw
7517386
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CABLE-TIE,DIA12-50MM,WTHR-RES.
7080138
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
Hose, Engine, Lower
5411782
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
Conduit, Flex
5521550
Superseded by 5521793-51
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP-HOSE
7080807
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CAP-OVER FLOW BOTTLE,DRILLED
5430743
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
GASKET-OVERFLOW CAP
5810279
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PLUG-CAP 9X(GREEN) FLEX TEMP
5433774
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
Tank, Surge
5432855
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
Line, Fuel
8450003-1525
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
Fitting, Barbed, 90 Degree
7052065
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
