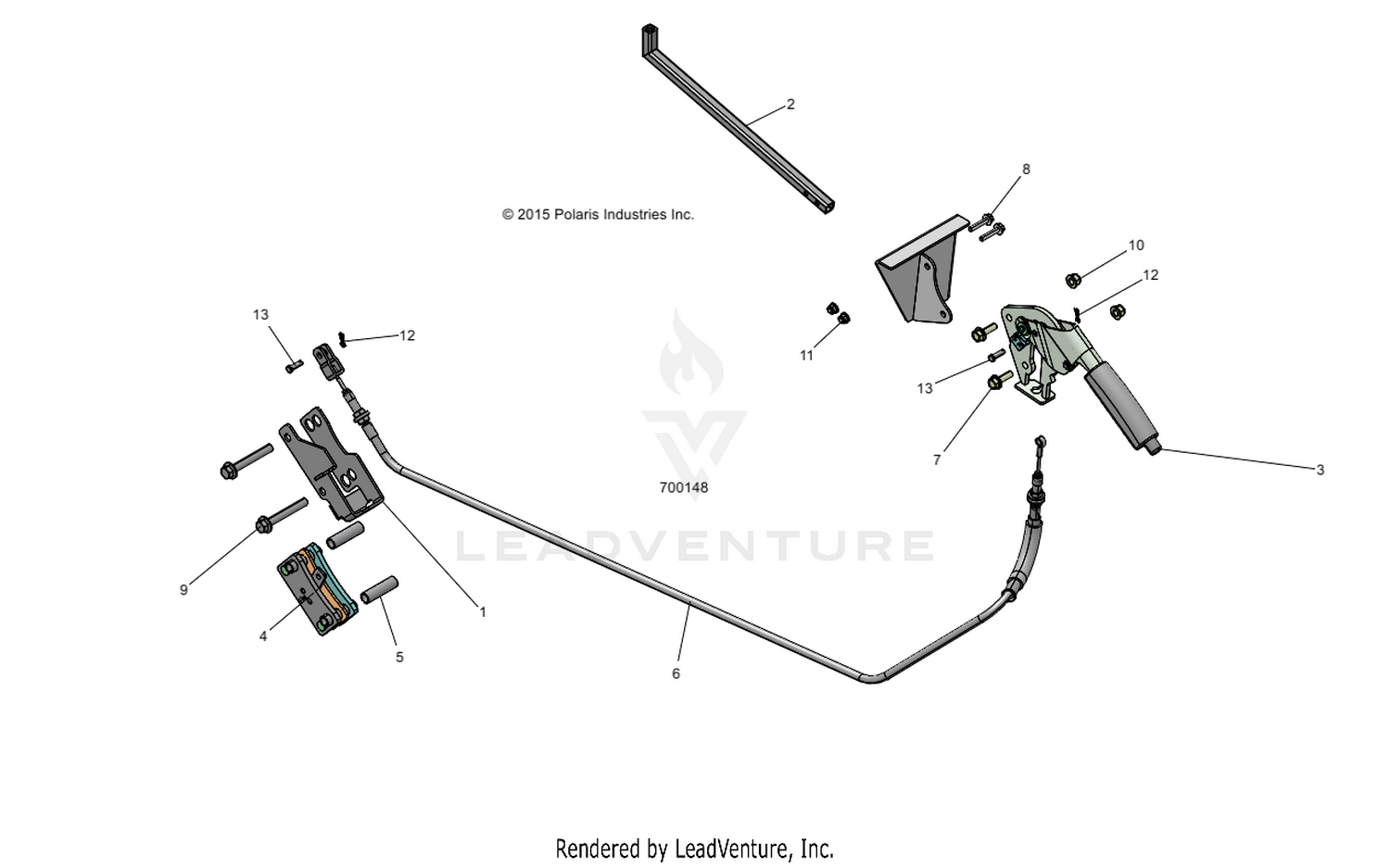

Brakes, Parking - R15rte87fa (700148) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, SHIFT, PARKING BRAKE, CABLE, MATTE BLACK
1021301-458
Superseded by 1021661-458
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PARKING BRAKE, SUPPORT,BLK
1021381-458
Superseded by 1022238-458
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-LEVER,PARK BRAKE
1911573
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
ASM-CLPR,PB,AFT-SB230C,RVT,MNI
1911972
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPACER,PARKING BRAKE, 2"
5336804
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CABLE-PARKING BRAKE,FRGR,EU
7082102
|
$124.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT-M8X1.25X25,HXFLG-OLIVE D
7518576
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT-M6X1.0X30,HXHD,FLG,BLK
7518530
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT-M10X1.25X70,HXFLG-OLIVE D
7518561
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT-HXFL-M6X1.0 8 ZB3 NYL
7547453
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN-CLIP,14MM
7661140
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN-CLEVIS, 1/4 X 3/4 -Y
7661843
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
