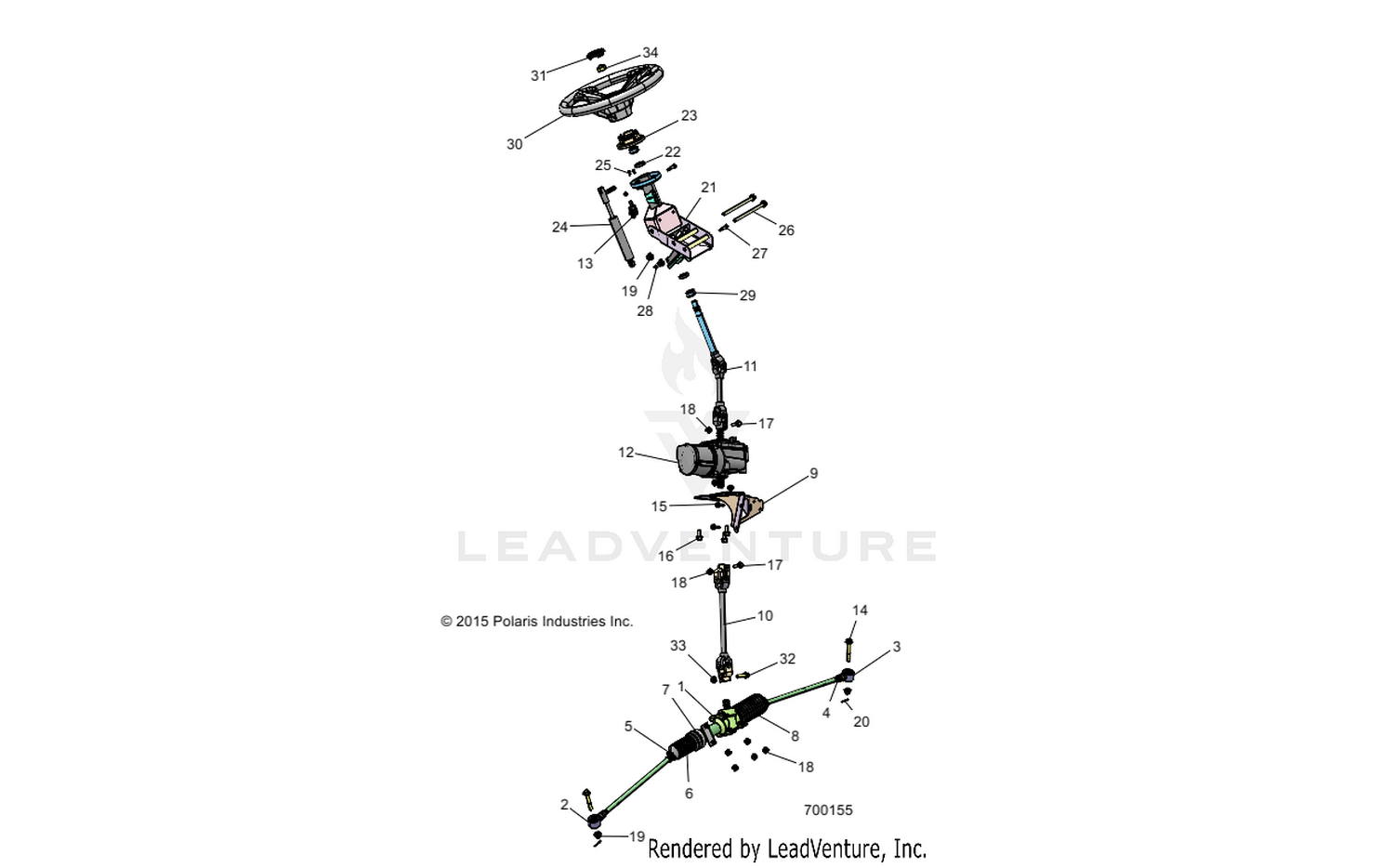

Steering, Steering Asm. - R15rte87fa (700155) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM-GEAR BOX,STEERING
1823902
|
$644.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ROD, END
7061054
Superseded by 7061138
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOOT, SEAL, ROD END
5411920
Superseded by 5412929
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, JAM, LH
7547028
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP, BOOT, SMALL
7080978
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOOT, PASSENGER, SIDE RACK
5412013
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CLAMP, BOOT, LARGE
7080979
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOOT, DRIVER SIDE, RACK
5412012
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WELD-EPAS,MNT,BLK
1018384-329
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT-STEERING LWR,W/JNT,EPAS
1823667
|
$159.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHAFT-STEERING,UPPER
1823891
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
ASM-POWER STEERING,RANGER
2412704
Superseded by 2414880
|
$1,809.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
LOCK-STEERING,1000COMBINATIONS
7082045
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-M10X1.25X65,HX WASH HD
7517909
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT-M8X1.25X20,HXFLG
7518555
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT-M10X1.25X20,HXFLG-OLV D
7518558
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW-HXFL M8X1.25X35 ZOD
7519052
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT-HXFL M10X1.25 8 ZTB NYL
7547333
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN-3/32X1-COTTER-Y
7661203
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
ASM-TILT,STEER,RVTD,M10,EU,BLK
1824294-458
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BEARING-STEERING
3514686
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR-STEERING LOCK,MATTE BLK
5632295-458
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
ASM-SHOCK,OIL LOCKING,MACH
7044098
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCR-M5X.8X10 TX BTN PIN-IN-HD
7518457
|
$2.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT-M10X1.25X130,HXFLG-OLIVED
7518665
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCR-SH-M6X1.0X11 12.9 ZB SHB
7519980
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT-6MM X 1 NYLOK-Z
7546703
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BUSHING-STEERING
7556675
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WHEEL-STEERING, 14"
1823623
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CAP-STEERING WHEEL
5436536
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
SCR-M10X1.50X35 HX/FL
7518644
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT-NY INS,M10X1.5,HEX,ZINC,YW
7547385
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT-HEX-M16X2, 8 ZC NYL
7547506
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
