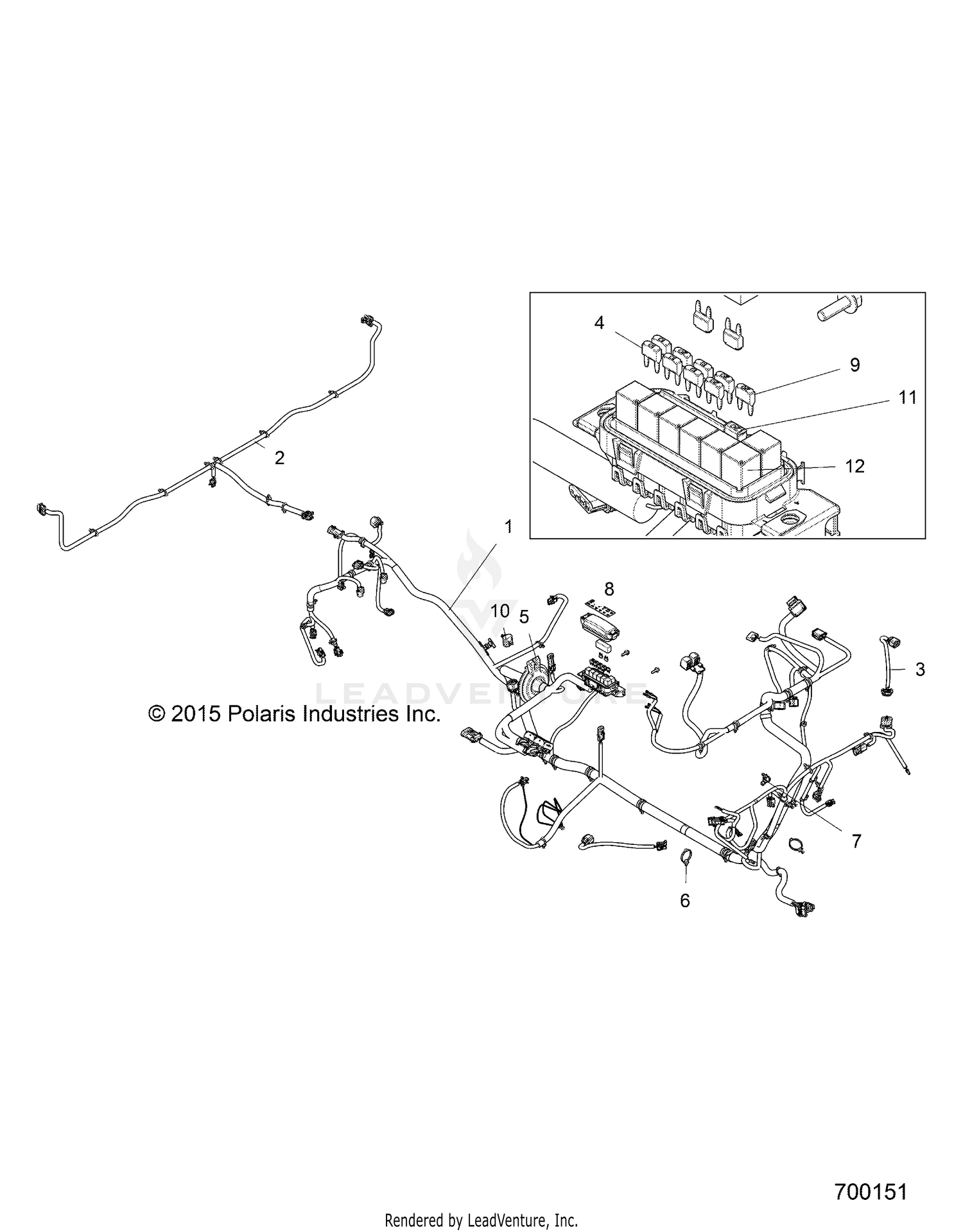

Electrical, Harness - R15rte87fa (700151) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HARNESS, CHASSIS
2413048
|
$1,244.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
FUSIBLE LINK 0.5 MM
2202147
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#1
FUSIBLE LINK 0.8 MM
2202607
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
HARNESS, BOX
2412835
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HEADLIGHT,JUMPER,DOMESTIC
2413117
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
FUSE-IGNITION,10 AMP
2434016
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
GROMMET, CHASSIS HARNESS
5414435
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLIP-ROUTING
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CABLE-TIE,DIA6-38MM,DUAL-LOOP
7081916
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DECAL, FUSEBLOCK, EU
7182514
|
|||
|
Available to order. Add to View Price |
|||
|
#9
Fuse, 20 AMP
2434017
Superseded by 4012811
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, DIAGNOSTIC, W/CLIP
4012170
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BREAKER-CIRCUIT,20 AMP
4011372
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
RELAY-SPST,12V,20A,EPXY,HFA
4011283
Superseded by 4016819
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
