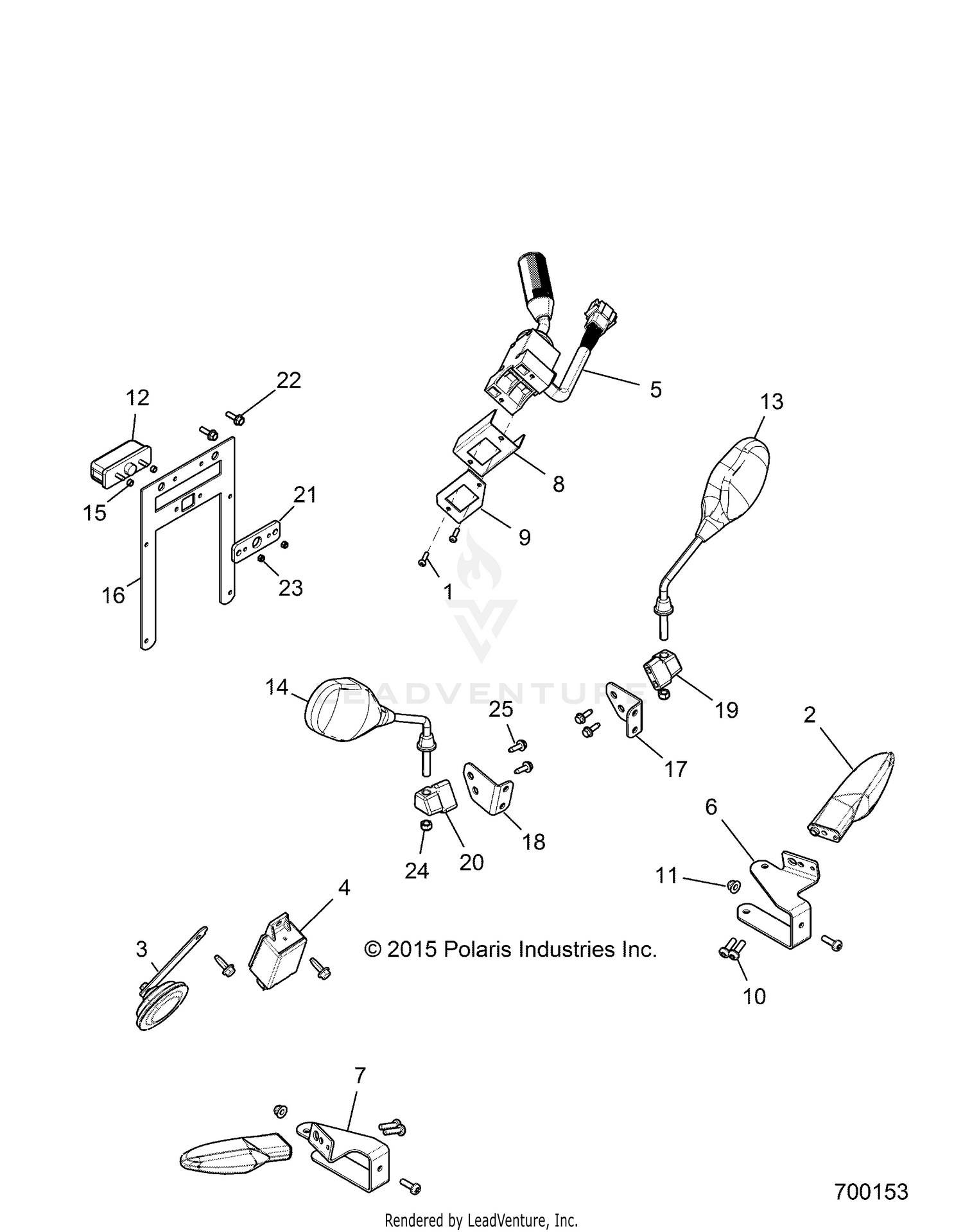

Electrical, Turn Signals, Horn And Mirrors - R15rte87fa (700153) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCR-HXBH-M5X0.8X22 10.9 ZB3
7520223
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SIGNAL-TURN,BLK
2411114-463
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
HORN-DISC
4011579
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
MODULE-FLASHER,LED
4013043
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SWITCH-BLOCK,TURN,LIGHTS,HORN
4015149
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRKT-TURN,SIGNAL,FRGR,LH,M.BLK
5260693-458
|
$11.97 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRKT-TURN,SIGNAL,FRGR,RH,M.BLK
5260694-458
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BRKT-SWITCH BLOCK,FR,FRGR,MBLK
5260695-458
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRKT-SWITCH BLOCK,BK,FRGR,MBLK
5260696-458
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCR-M6X1.0X20MM,TX,PH,8.8-B
7518546
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT- M8X1.25, FLG, NYLOC-OLIVE D
7547332
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
LIGHT-LICENSE PLATE,BLACK
2410629
|
$54.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
ASM-MIRROR,HNDLBR,LH
2633314
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
ASM-MIRROR,HNDLBR,RH
2633315
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPCR-LP LIGHT,5.0X8.0X4.0,AL
5134403
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRKT-LICENSE PLATE MATTE BLK
5259486-458
|
|||
|
Unavailable |
|||
|
#17
BRKT-MIRROR,FRGR,LH,M.BLACK
5260689-458
|
$0.39 | ||
|
Available to order. Add to View Price |
|||
|
#18
BRKT-MIRROR,FRGR,RH,M.BLACK
5260690-458
|
$0.39 | ||
|
Available to order. Add to View Price |
|||
|
#19
MOUNT-MIRROR,CAST,LH,MATTE'BLK
5632307-458
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
MOUNT-MIRROR,CAST,RH,MATTE'BLK
5632308-458
|
$64.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPACER-LP LIGHT,BD
5812520
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCR-HXFL-M6X1.0X20 8.8 RIE
7519121
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT-M5X.8,HX NYL-Y
7546601
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT-HEX,M8X1.25,NYLOCK-SS
7546804
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
