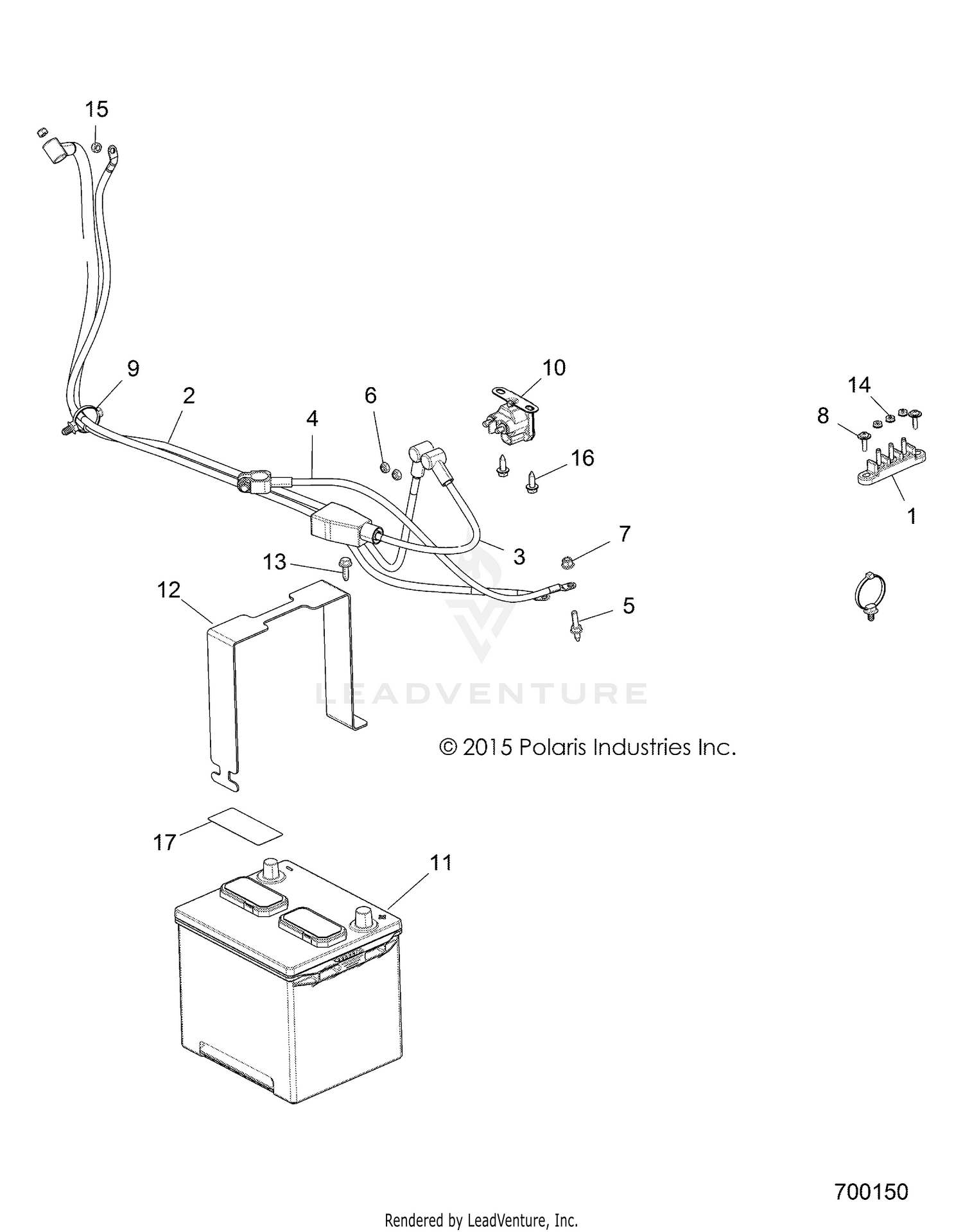

Electrical, Battery - R15rte87fa (700150) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BLOCK, TERMINAL, 3 POST
4011892
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CABLE, STARTER TO SOLENOID
4014948
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CABLE, BATTERY TO SOLENOID
4014949
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CABLE, BATTERY TO GROUND
4014947
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
STUD
7519333
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT-6MM X 1 NYLOK-Z
7546703
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
NUT-M6 FLANGE,NYLOC
7547274
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
7518196
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLIP-ROUTING
7081496
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SOLENOID, STARTER
4012001
|
$109.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BATTERY-575 CCA,FLOODED,SVC
4014132
Superseded by 4014132-P
|
$174.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BATTERY-HD,AGM,SEALED
4081481
|
$199.99 | ||
|
Unavailable |
|||
|
#12
BRKT-BATTERY STRAP GALV
5257827
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCR-M6X1.0X20,HXHD,FLG,TDFM,BK
7518529
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
7547341
|
$0.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT-6MM X 1 NYLOK-Z
7546703
|
$1.49 | ||
|
Unavailable |
|||
|
#16
SCREW
7518196
|
$1.49 | ||
|
Unavailable |
|||
|
#17
DECAL-BATTERY,POLARIS
7177052
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
