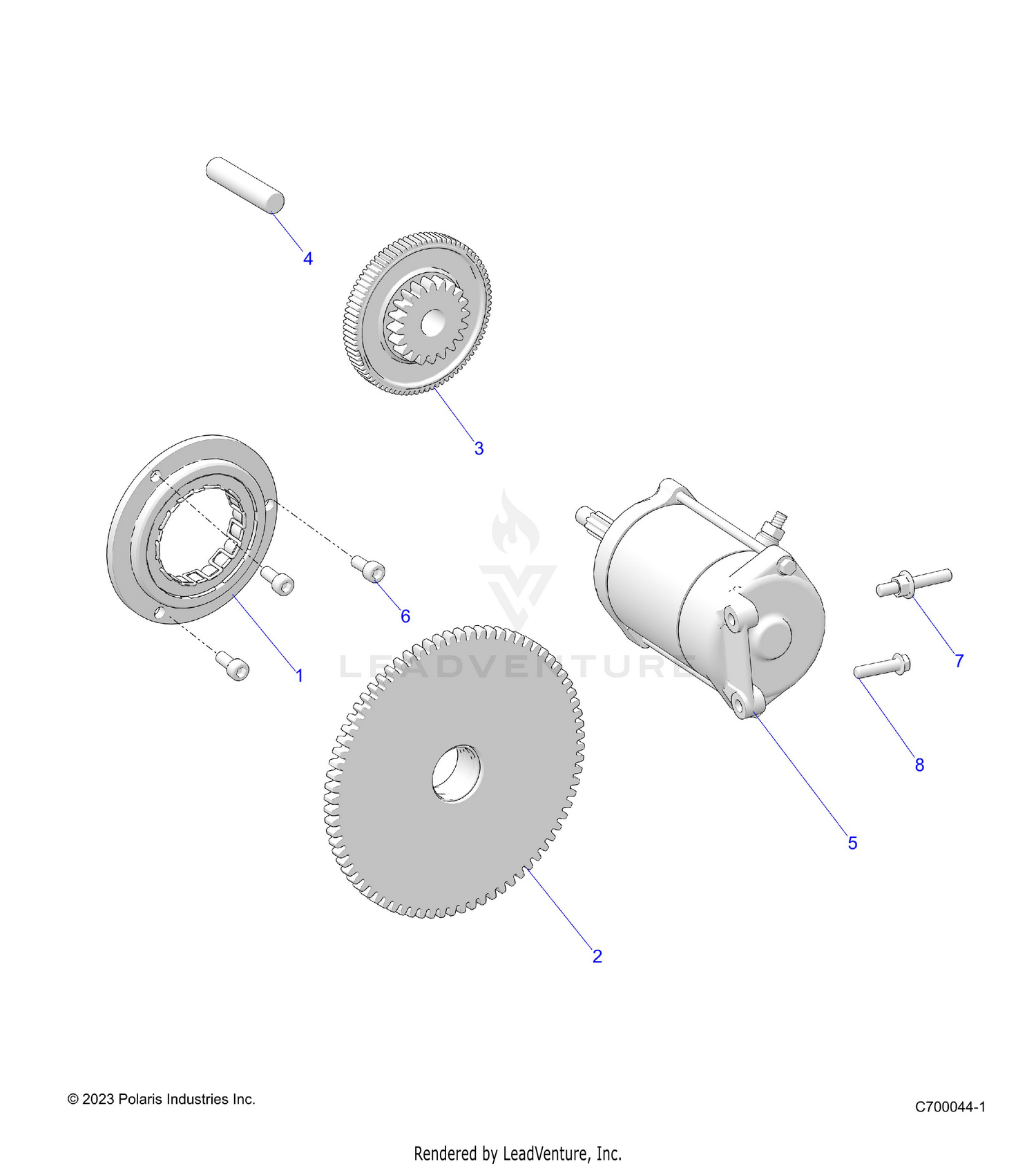

Engine, Starter And Drive - R15rte87fa (49rgrstartingmtr13900xp) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ASM., SPRAG CLUTCH, HUB, STARTER
1205021
|
$274.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
ASM-GEAR,STARTER,CRANK
1204415
|
$189.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
ASM-TLG
1204571
Superseded by 3023229
|
$127.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN-TQ,LIMIT,GEAR
3022416
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
STARTER-9T,CW
4014548
|
$449.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW-M6X1.0X14.0,HX/SOC/CP-Y/D
7517431
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
STUD-DOUBLE,END,M6X1.0X25/10
7519237
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW
7519297
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
