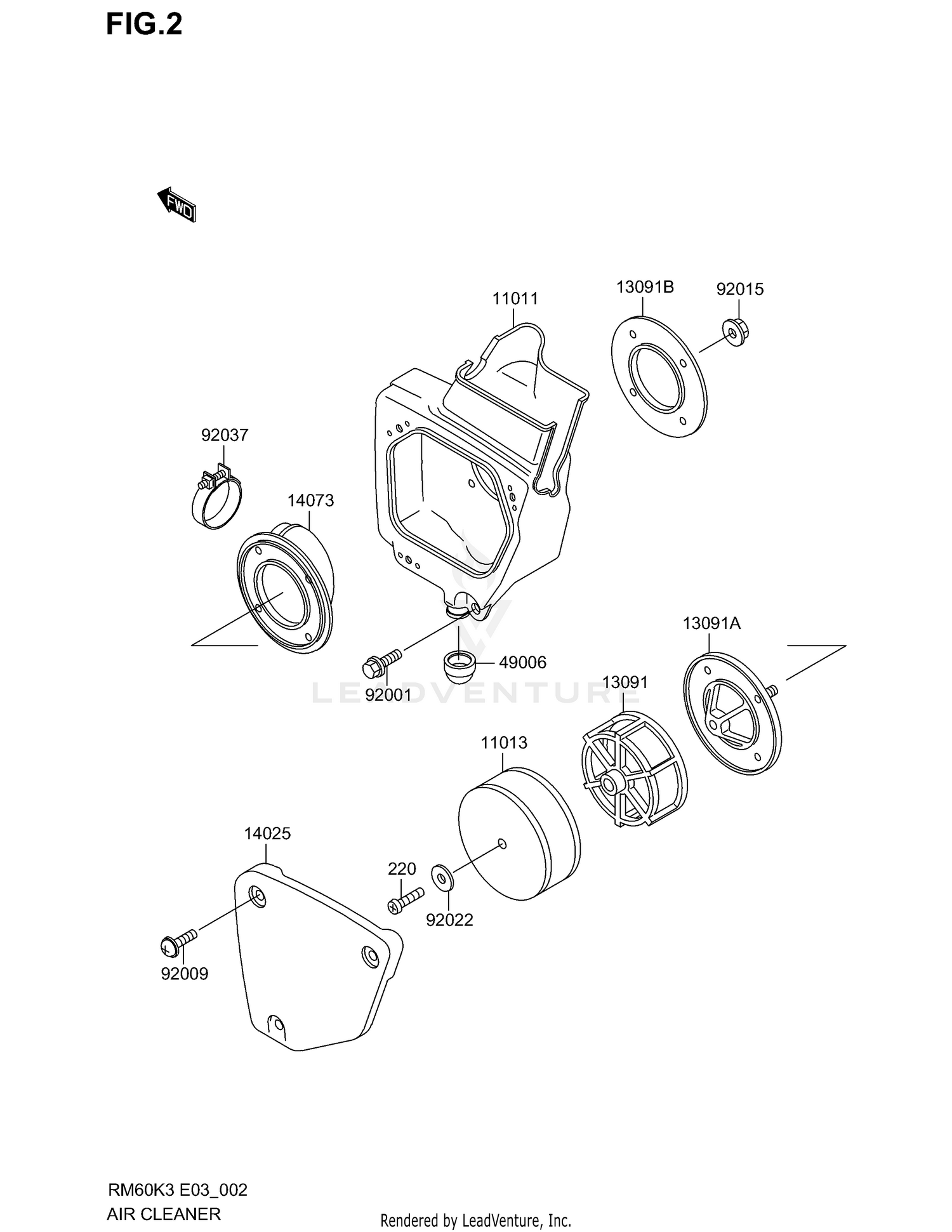

Air Cleaner Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11011
CASE-AIR FILTER
K1101-11178
|
$33.27 | ||
|
Unavailable |
|||
|
#11013
ELEMENT-AIR FILTER
K1101-31121
|
$38.87 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER,ELEMENT
K1309-11336
|
$8.94 | ||
|
Unavailable |
|||
|
#13091A
HOLDER,AIR FILTER CASE
K1309-11337
|
$15.26 | ||
|
Unavailable |
|||
|
#13091B
HOLDER,AIR FILTER CASE
K1309-11338
|
$4.68 | ||
|
Unavailable |
|||
|
#14025
COVER,AIR FILTER CASE
K1402-51958
|
$19.72 | ||
|
Unavailable |
|||
|
#14073
DUCT,AIR FILTER
K1407-31191
|
$28.02 | ||
|
Unavailable |
|||
|
#49006
BOOT,AIR FILTER
K4900-61156
|
$3.47 | ||
|
Unavailable |
|||
|
#92001
BOLT,W/WASHER,6X12
K9200-11517
|
$2.75 | ||
|
Unavailable |
|||
|
#92009
SCREW,6X14
K9200-91287
Superseded by K9217-20401
|
$1.50 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,5MM
K9201-51259
|
$2.97 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X20X1
KK920-22125
Superseded by K9220-00283
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP
K9203-71172
|
$4.68 | ||
|
Unavailable |
|||
|
#220
SCREW-PAN-CROS,
KK220-B0625
Superseded by K220A-A0625
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
