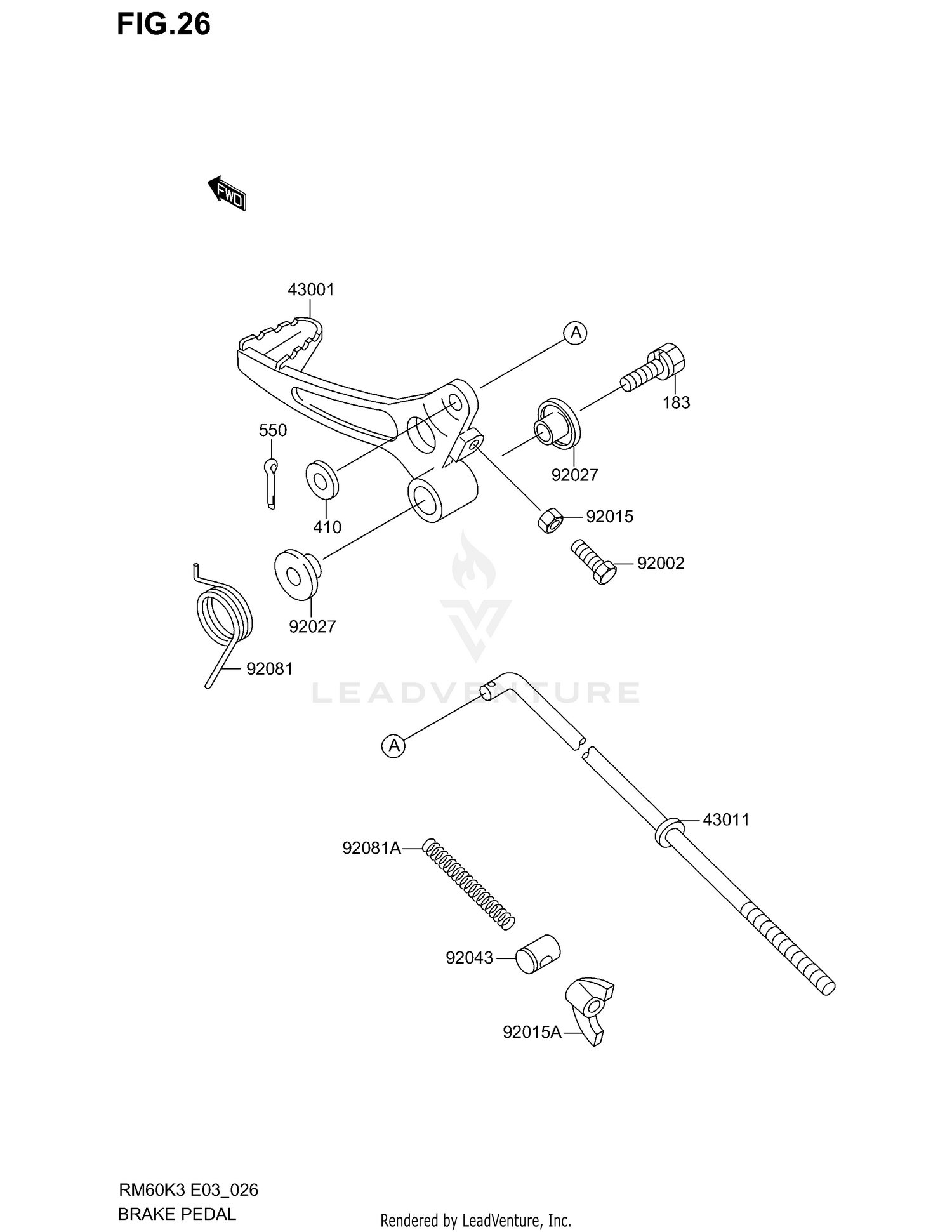

Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#43001
LEVER-BRAKE,PEDAL
K4300-11243
|
$34.78 | ||
|
Unavailable |
|||
|
#43011
ROD-BRAKE
K4301-11104
|
$11.78 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X20
K9200-21373
|
$1.69 | ||
|
Unavailable |
|||
|
#92015
NUT,6MM
K9201-51391
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,WING,6MM
K9201-54004
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,BRAKE PEDAL
K9202-71497
|
$6.20 | ||
|
Unavailable |
|||
|
#92043
PIN,BRAKE ROD
KK920-43039
Superseded by K9204-30147
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,BRAKE PEDAL
K9208-11494
|
$4.25 | ||
|
Unavailable |
|||
|
#92081A
SPRING,BRAKE ROD
K9208-11688
|
$3.42 | ||
|
Available to order. Add to View Price |
|||
|
#183
BOLT-UPSET-WS-SMALL
KK183-G0840
|
$0.97 | ||
|
Unavailable |
|||
|
#410
WASHER
KK410-B0600
Superseded by K410A-A0600
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,2.0X
KK550-D2015
Superseded by K550A-A2015
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
