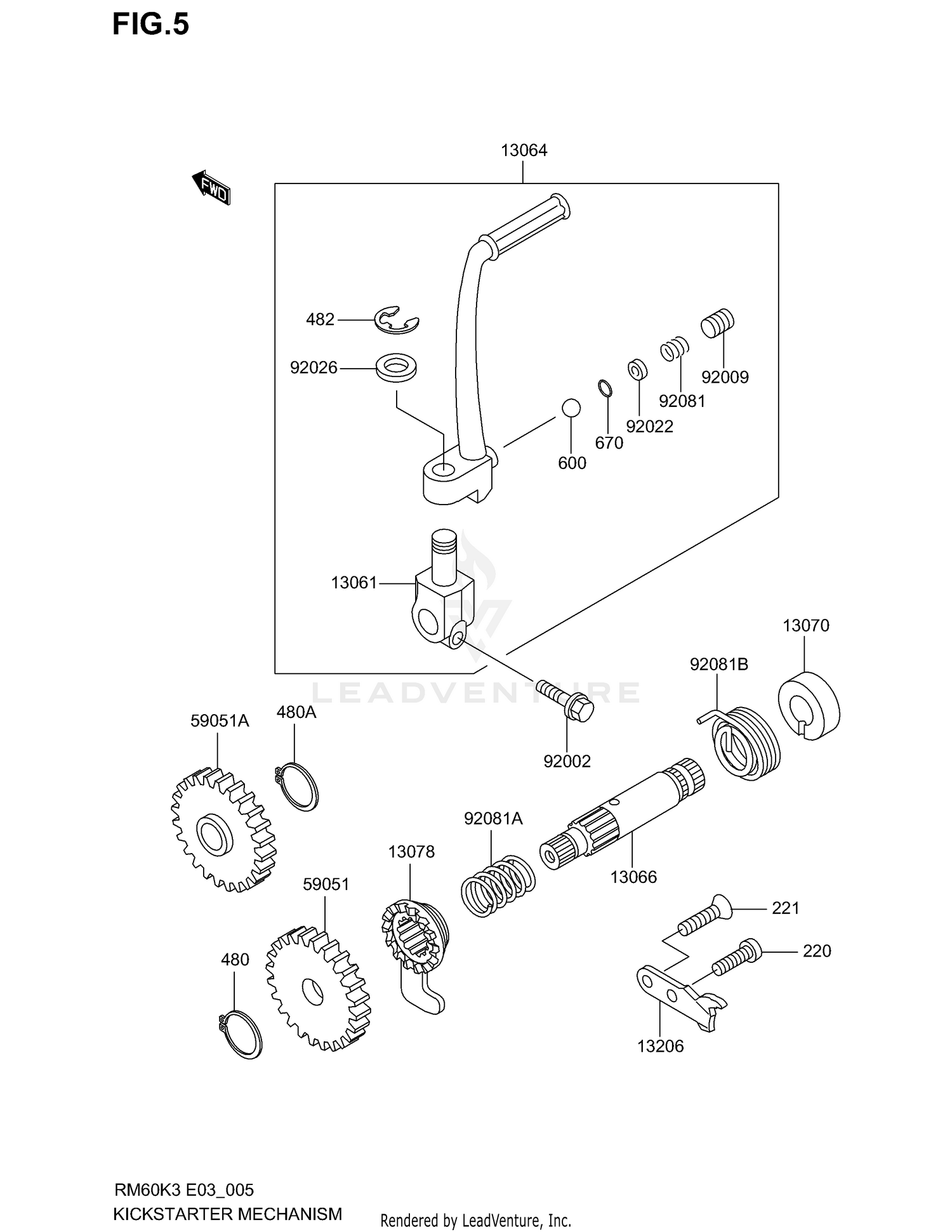

Kickstarter Mechanism Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13061
BOSS,KICK LEVER
K1306-11301
|
$29.84 | ||
|
Unavailable |
|||
|
#13064
LEVER-ASSY-KICK,PEDAL
K1306-41154
|
$110.32 | ||
|
Available to order. Add to View Price |
|||
|
#13066
SHAFT-KICK,STARTER
K1306-61093
|
$41.59 | ||
|
Unavailable |
|||
|
#13070
GUIDE,KICK SPRING
K1307-01034
|
$4.38 | ||
|
Unavailable |
|||
|
#13078
RATCHET
K1307-81004
|
$36.34 | ||
|
Unavailable |
|||
|
#13206
GUIDE-KICK
K1320-61065
|
$5.92 | ||
|
Unavailable |
|||
|
#59051
GEAR-SPUR,32T
K5905-11026
|
$32.06 | ||
|
Unavailable |
|||
|
#59051A
GEAR-SPUR,30T
K5905-11027
|
$37.34 | ||
|
Unavailable |
|||
|
#92002
BOLT,6X20
K9200-21237
|
$2.37 | ||
|
Unavailable |
|||
|
#92009
SCREW,SOCKET,8X8
K9200-91312
|
$2.22 | ||
|
Unavailable |
|||
|
#92022
WASHER
K9202-21481
|
$2.92 | ||
|
Unavailable |
|||
|
#92026
SPACER,12.2X20X1.6
K9202-61527
|
$1.65 | ||
|
Unavailable |
|||
|
#92081
SPRING,KICK PEDAL
KK920-81020
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,RATCHET
KK920-81122
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,RETURN
K9208-11434
|
$7.36 | ||
|
Unavailable |
|||
|
#220
SCREW-PAN-CROS,6X16
KK220-B0616
|
$0.62 | ||
|
Unavailable |
|||
|
#221
SCREW-CSK-CROS,
KK221-B0618
Superseded by K221A-A0618
|
$1.21 | ||
|
Unavailable |
|||
|
#480
CIRCLIP-TYPE-C,12MM
KK480-J1200
|
$0.89 | ||
|
Unavailable |
|||
|
#480A
CIRCLIP-TYPE-C,15MM
KK480-J1500
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#482
CIRCLIP-TYPE-E,8MM
KK482-K8000
|
$1.96 | ||
|
Unavailable |
|||
|
#600
BALL-STEEL,1/4"
KK600-A0800
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#670
O RING,4MM
KK670-B1504
|
$2.37 | ||
|
Available to order. Add to View Price |
|||
