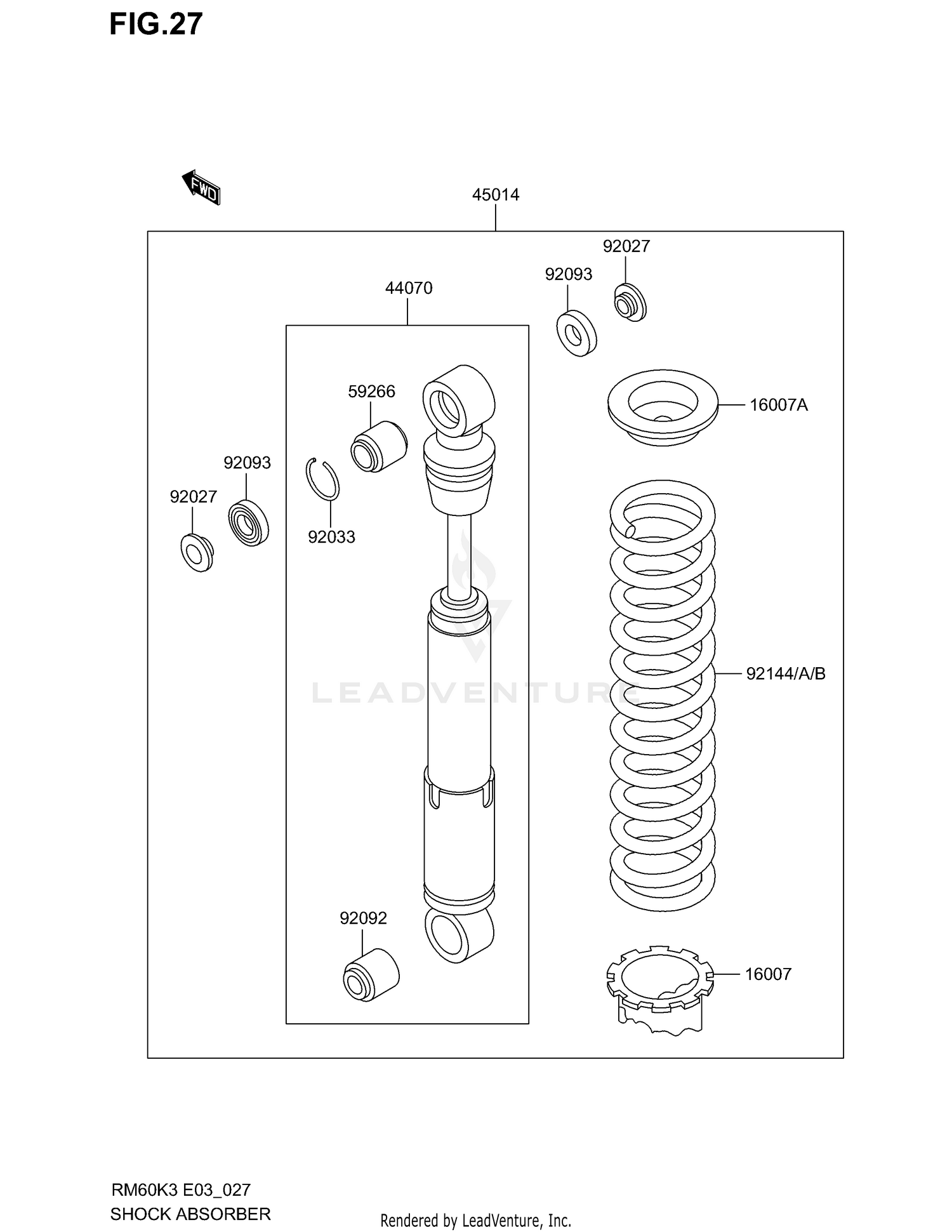

Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#16007
SEAT-SPRING,REAR SHOCK,LWR
K1600-71055
|
$14.21 | ||
|
Unavailable |
|||
|
#16007A
SEAT-SPRING,REAR SHOCK,UPP
K1600-71121
|
$5.69 | ||
|
Unavailable |
|||
|
#44070
DAMPER-ASSY,SHOCKABSORBER
K4407-01980
|
$298.30 | ||
|
Unavailable |
|||
|
#45014
SHOCKABSORBER,S.RED
KK450-14181-5VM
|
$400.73 | ||
|
Unavailable |
|||
|
#59266
JOINT-BALL
K5926-61053
|
$58.89 | ||
|
Unavailable |
|||
|
#92027
COLLAR
K9202-71862
|
$9.33 | ||
|
Unavailable |
|||
|
#92033
RING-SNAP
K9203-31090
|
$1.96 | ||
|
Unavailable |
|||
|
#92092
BUSHING-RUBBER,SHOCKABSORBER
K9209-21016
|
$15.70 | ||
|
Unavailable |
|||
|
#92093
SEAL
K9209-31183
|
$7.68 | ||
|
Unavailable |
|||
|
#92144
SPRING,SHOCKABSORBER,K=3.0,RED
KK921-44194-2VM
|
$97.54 | ||
|
Unavailable |
|||
|
#92144A
SPRING,SHOCKABSORBER,K=3.3,RED
KK921-44194-3VM
|
$97.54 | ||
|
Unavailable |
|||
|
#92144B
SPRING,SHOCKABSORBER,K=3.7,RED
KK921-44194-4VM
|
$117.49 | ||
|
Unavailable |
|||
