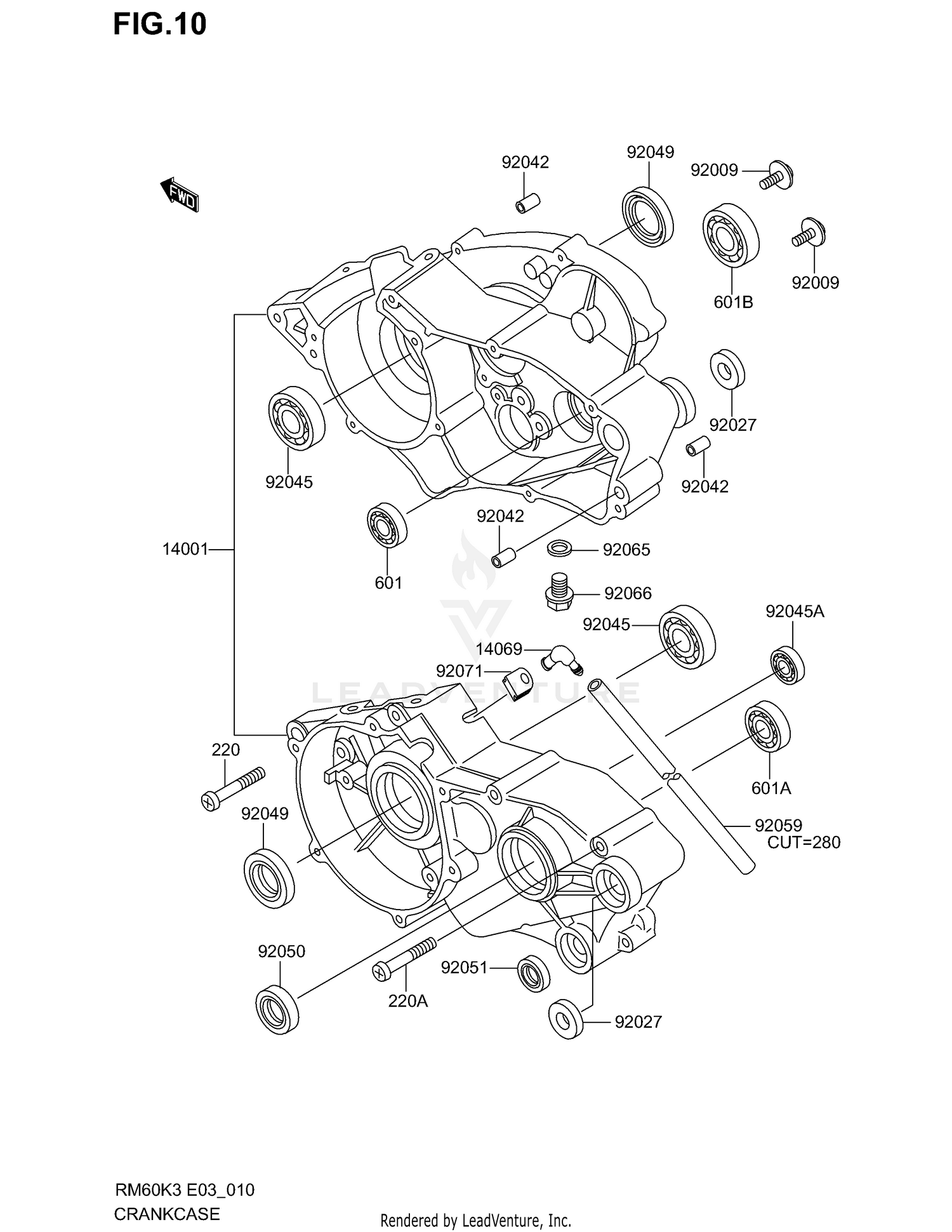

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#14001
SET-CRANKCASE
K1400-11317
|
$455.38 | ||
|
Unavailable |
|||
|
#14069
BREATHER,CRANKC
K1406-91001
Superseded by K1406-91062
|
$14.26 | ||
|
Unavailable |
|||
|
#92009
SCREW,6X15
K9200-91103
|
$1.96 | ||
|
Unavailable |
|||
|
#92027
COLLAR,12.1X26X6
K9202-71744
|
$6.51 | ||
|
Unavailable |
|||
|
#92042
PIN,DOWEL,6.3X8X14
KK920-42007
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#92045
BEARING-BALL,R-6304C3
K9204-51059
|
$28.97 | ||
|
Available to order. Add to View Price |
|||
|
#92045A
BEARING-BALL,6001C3ML01
K9204-51235
|
$10.76 | ||
|
Unavailable |
|||
|
#92049
SEAL-OIL,SD20407GS
K9204-91188
|
$13.47 | ||
|
Available to order. Add to View Price |
|||
|
#92050
SEAL-OIL,SC25376
KK920-50013
|
$10.70 | ||
|
Available to order. Add to View Price |
|||
|
#92051
SEAL-OIL,TB13225.5
KK920-51005
|
$5.88 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,6X9X1050
K9205-91939
|
$8.94 | ||
|
Unavailable |
|||
|
#92065
GASKET,10.5X16X1
KK920-65058
|
$2.83 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG,DRAIN
K9206-61241
|
$3.46 | ||
|
Unavailable |
|||
|
#92071
GROMMET,BREATHER
KK920-71042
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,
KK220-B0635
Superseded by K220A-A0635
|
$0.98 | ||
|
Unavailable |
|||
|
#220A
SCREW-PAN-CROS,6X60
KK220-B0660
|
$0.79 | ||
|
Unavailable |
|||
|
#601
BEARING-BALL,#6002
KK601-A6002
|
$11.24 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING-BALL,#6004
KK601-A6004
|
$12.05 | ||
|
Available to order. Add to View Price |
|||
|
#601B
BEARING-BALL,#6203
KK601-A6203
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
