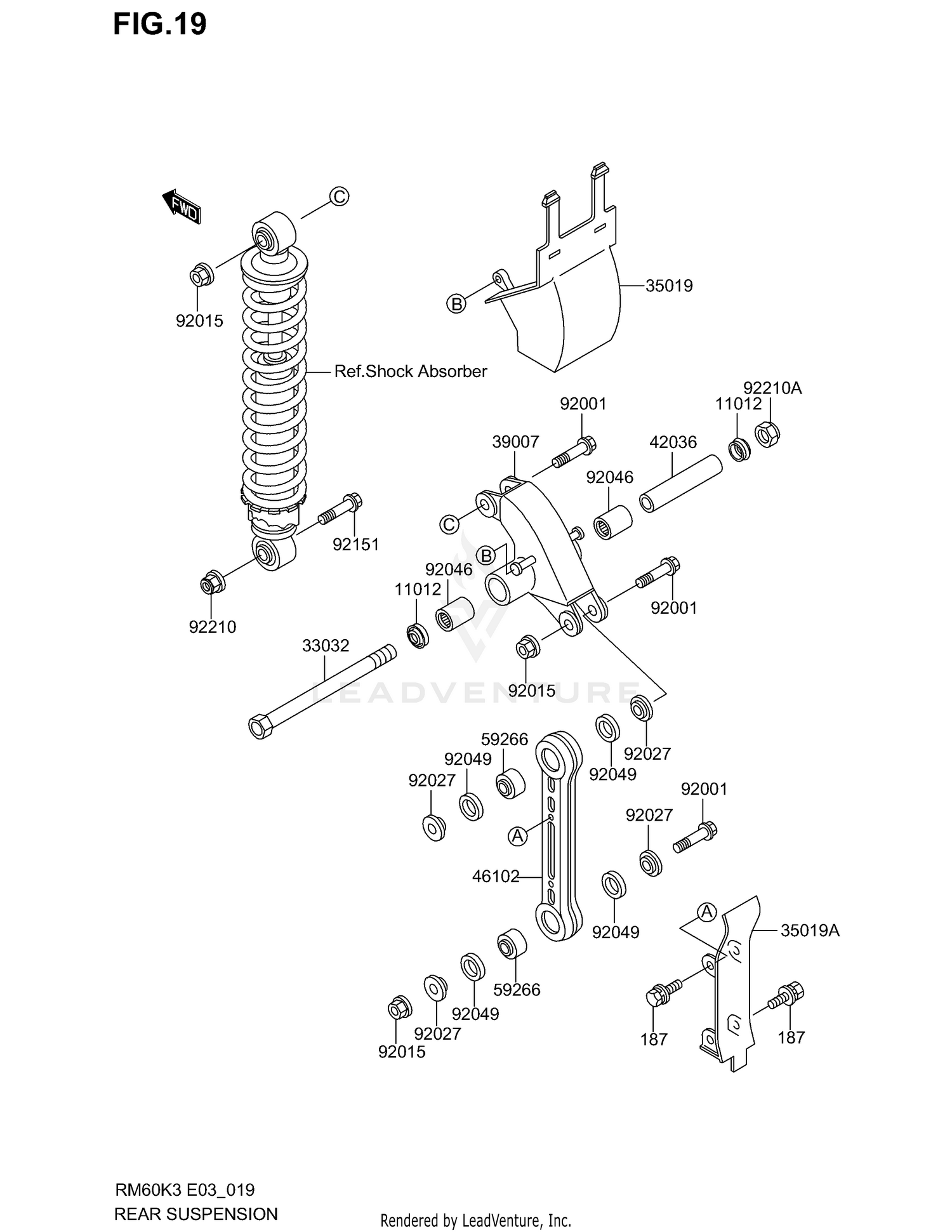

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11012
CAP
K1101-21263
|
$12.50 | ||
|
Available to order. Add to View Price |
|||
|
#33032
SHAFT-SUSPENSION ARM,L=168
K3303-21032
|
$12.41 | ||
|
Unavailable |
|||
|
#35019
FLAP,SUSPENSION ARM
K3501-91046
|
$33.27 | ||
|
Unavailable |
|||
|
#35019A
FLAP,SUSPENSION ROD
K3501-91137
|
$6.36 | ||
|
Unavailable |
|||
|
#39007
ARM-SUSP,UNI-TRAK
K3900-71062
|
$97.54 | ||
|
Unavailable |
|||
|
#42036
SLEEVE,SUSPENSION ARM,L=86
K4203-61068
|
$11.84 | ||
|
Unavailable |
|||
|
#46102
ROD,SUSPENSION
K4610-21125
|
$104.31 | ||
|
Unavailable |
|||
|
#59266
JOINT-BALL
K5926-61011
|
$33.47 | ||
|
Unavailable |
|||
|
#92001
BOLT,FLANGED,10X42
K9200-11711
|
$3.30 | ||
|
Unavailable |
|||
|
#92015
NUT,FLANGED,10MM
K9201-51415
|
$2.39 | ||
|
Unavailable |
|||
|
#92027
COLLAR,SUSPENSION ROD
K9202-71496
|
$6.77 | ||
|
Unavailable |
|||
|
#92046
BEARING-NEEDLE
K9204-61046
|
$21.10 | ||
|
Unavailable |
|||
|
#92049
SEAL-OIL
K9204-91098
|
$5.29 | ||
|
Unavailable |
|||
|
#92151
BOLT,FLANGED,10X41
K9215-11831
|
$4.41 | ||
|
Unavailable |
|||
|
#92210
NUT,LOCK,FLANGED,10MM
K9221-01080
|
$8.40 | ||
|
Available to order. Add to View Price |
|||
|
#92210A
NUT,LOCK,12MM
K9221-01249
|
$7.83 | ||
|
Unavailable |
|||
|
#187
BOLT-UPSET-WSP
KK187-B0614
|
$0.79 | ||
|
Unavailable |
|||
