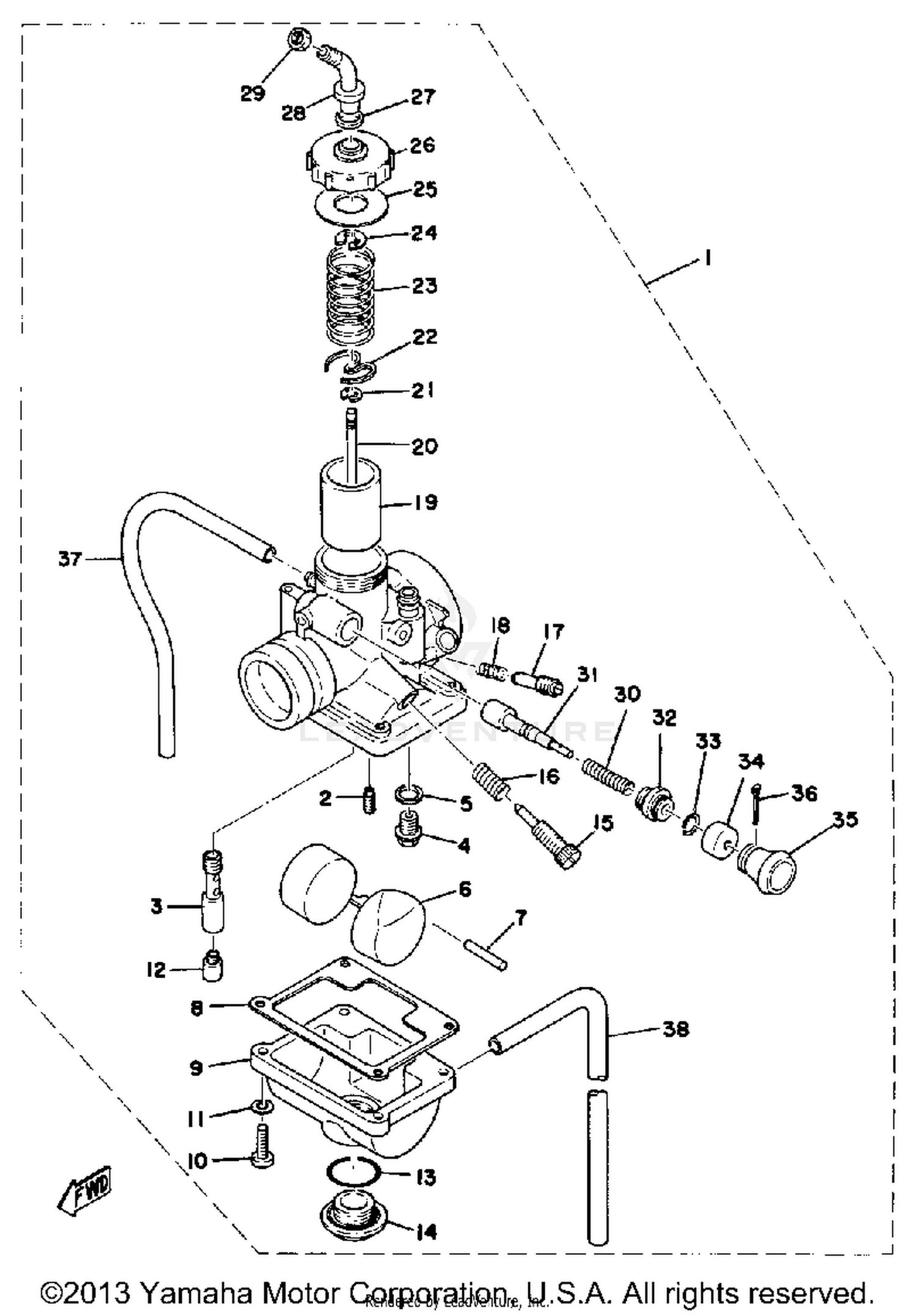

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
558-14101-60-00
|
$89.16 | ||
|
Unavailable |
|||
|
#2
JET, PILOT #22.5
260-14142-22-A0
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
NOZZLE, MAIN
558-14141-30-00
|
$16.49 | ||
|
Unavailable |
|||
|
#4
NEEDLE VALVE ASSEMBLY
353-14190-15-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, NEEDLE VALVE
127-14195-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
FLOAT
304-14185-00-00
Superseded by 4NR-14185-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, FLOAT
127-14186-00-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, FLOAT CHAMBER
304-14184-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BODY, FLOAT CHMBR 1
539-14181-08-00
|
$108.99 | ||
|
Unavailable |
|||
|
#10
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
JET, MAIN #150
137-14143-30-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN #160
137-14143-32-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN #170
137-14143-34-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
558-14147-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLUG, SCREW
500-14115-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, THROTTLE
493-14122-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#16
SPRING, THROTTLE STOP
493-14133-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
AIR SCREW SET
22K-14104-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPRING, AIR ADJUSTING
174-14134-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
VALVE,THROTTLE 1
304-14112-20-00
Superseded by 53V-14112-20-00
|
$103.99 | ||
|
Unavailable |
|||
|
#20
NEEDLE
166-14116-13-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
SEAT, SPRING
137-14136-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#23
SPRING, THRTL VALVE
3X3-14131-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
363-14137-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET
193-14126-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
TOP, MIXING CHAMBER
558-14158-00-00
|
$17.16 | ||
|
Unavailable |
|||
|
#27
GASKET
363-14198-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
GUIDE, CABLE
363-14155-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#29
NUT, CABLE ADJUSTING
127-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SPRING, PLUNGER
156-14135-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
PLUNGER, STARTER
304-14171-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CAP, PLUNGER
152-14174-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CLIP, PLUNGER
152-14138-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#34
COVER, PLUNGER CAP
132-14173-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOLDER
304-14261-00-00
|
$38.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIPE, AIRVENT
183-14197-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIPE, AIRVENT
23F-14197-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
