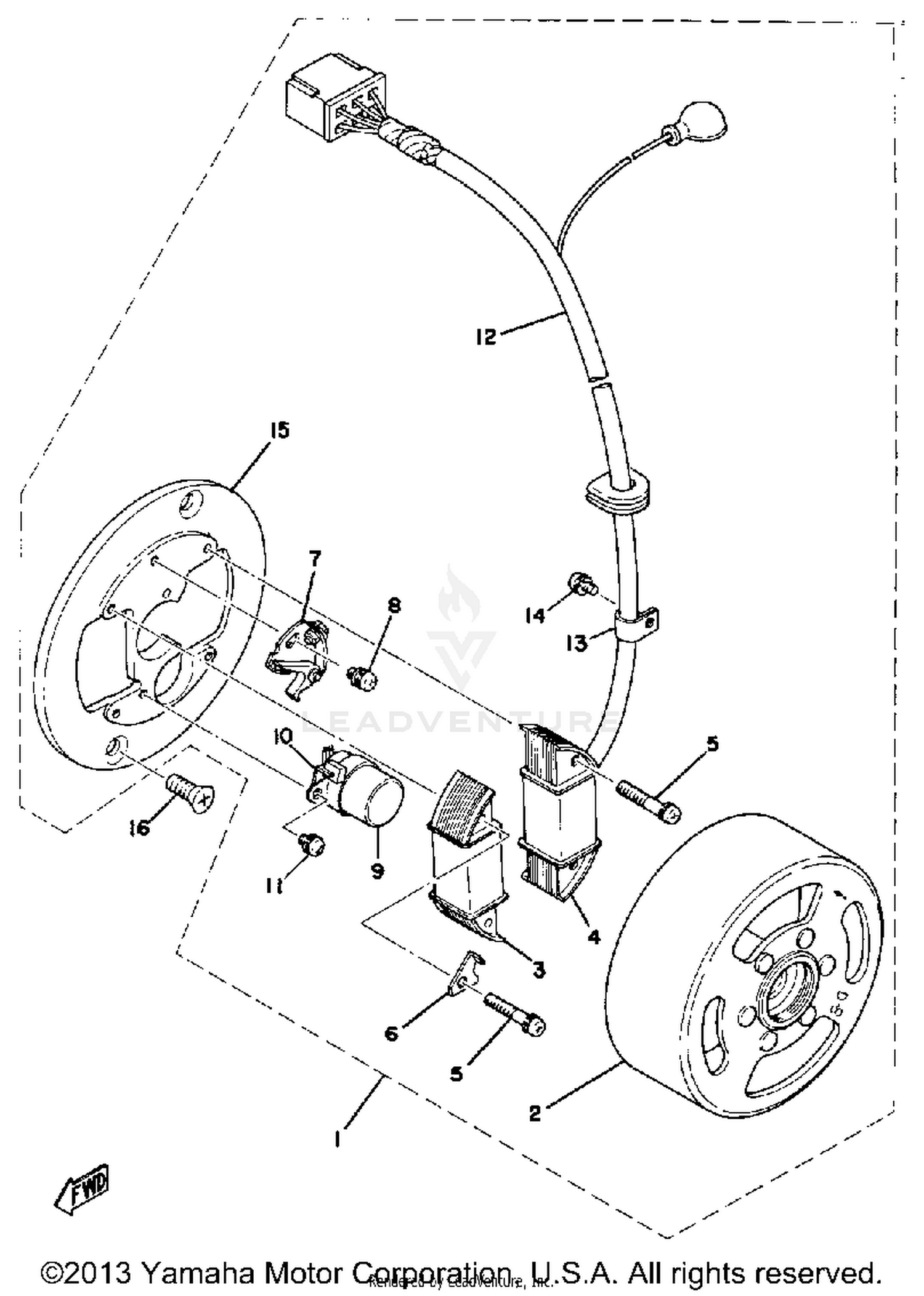

Flywheel Magneto Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FLYWHL MAGNETO ASSEMBLY
594-81300-20-00
|
$168.99 | ||
|
Unavailable |
|||
|
#2
COIL, SOURCE
2U7-81312-21-00
|
$100.99 | ||
|
Unavailable |
|||
|
#3
COIL, SOURCE
2U7-81312-21-00
|
$100.99 | ||
|
Unavailable |
|||
|
#4
COIL, LIGHTING 1
594-81313-20-00
|
$88.99 | ||
|
Unavailable |
|||
|
#5
SCREW, PAN HEAD
97602-04125-00
Superseded by 98517-04025-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, TIMING
296-81332-20-00
|
$6.68 | ||
|
Unavailable |
|||
|
#7
CONTACT BRKR ASSEMBLYASSY
2A6-81321-20-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
110-81346-21-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CONDENSER 1
1K8-81325-20-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
LUBRICATOR
116-81331-20-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
110-81346-21-00
|
$5.49 | ||
|
Unavailable |
|||
|
#12
LEAD WIRE ASSEMBLY
437-81315-20-00
|
$24.99 | ||
|
Unavailable |
|||
|
#13
CLAMP
109-81328-11-00
|
$9.49 | ||
|
Unavailable |
|||
|
#14
SCREW, PAN HEAD
97601-04106-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
BASE, MAGNETO
437-81309-20-00
|
$54.99 | ||
|
Unavailable |
|||
|
#16
SCREW, OVAL HEAD (92701-06012)
98603-06012-00
|
$1.85 | ||
|
Unavailable |
|||
