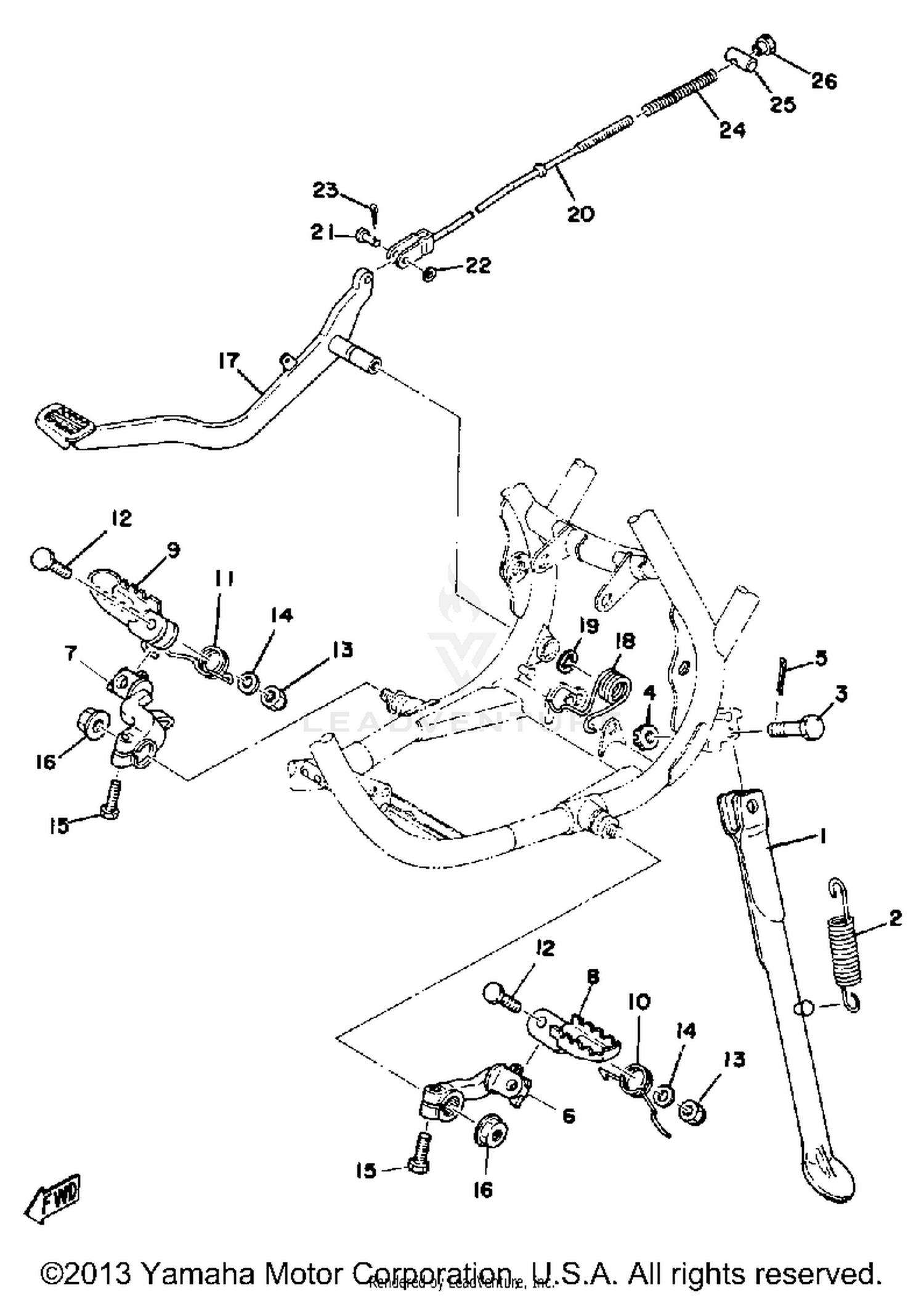

Stand - Footrest - Brake Pedal Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
458-27311-00-00
|
$14.84 | ||
|
Unavailable |
|||
|
#2
SPRING, TENSION
90507-29021-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, WITH HOLE (278-27317-00)
90102-10006-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, CASTLE
90171-10012-00
Superseded by 90171-10049-00
|
$2.90 | ||
|
Unavailable |
|||
|
#5
PIN, COTTER
91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BRACKET, FOOTREST 1
437-27412-10-00
|
$41.99 | ||
|
Unavailable |
|||
|
#7
BRACKET, FOOTREST 2
437-27422-10-00
|
$61.99 | ||
|
Unavailable |
|||
|
#8
FOOTREST 1
434-27411-00-35
|
$67.99 | ||
|
Unavailable |
|||
|
#9
FOOTREST 2
434-27421-00-35
|
$67.99 | ||
|
Unavailable |
|||
|
#10
SPRING, TORSION
90508-26138-00
|
$3.76 | ||
|
Unavailable |
|||
|
#11
SPRING, TORSION
90508-26139-00
|
$3.36 | ||
|
Unavailable |
|||
|
#12
BOLT
90101-08250-00
|
$6.99 | ||
|
Unavailable |
|||
|
#13
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-08452-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
97001-08025-00
Superseded by 97017-08025-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, FLANGE
95701-12500-00
Superseded by 90179-12588-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
PEDAL, BRAKE
558-27211-00-33
|
$21.34 | ||
|
Unavailable |
|||
|
#18
SPRING, TORSION
90508-45290-00
|
$13.49 | ||
|
Unavailable |
|||
|
#19
CIRCLIP
93430-10015-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
ROD, BRAKE
403-27231-01-00
|
$14.49 | ||
|
Unavailable |
|||
|
#21
PIN, CLEVIS
90240-06006-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLAIN
92990-06200-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING, COMPRESSION
90501-10245-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN
90249-12008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
90179-06411-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
