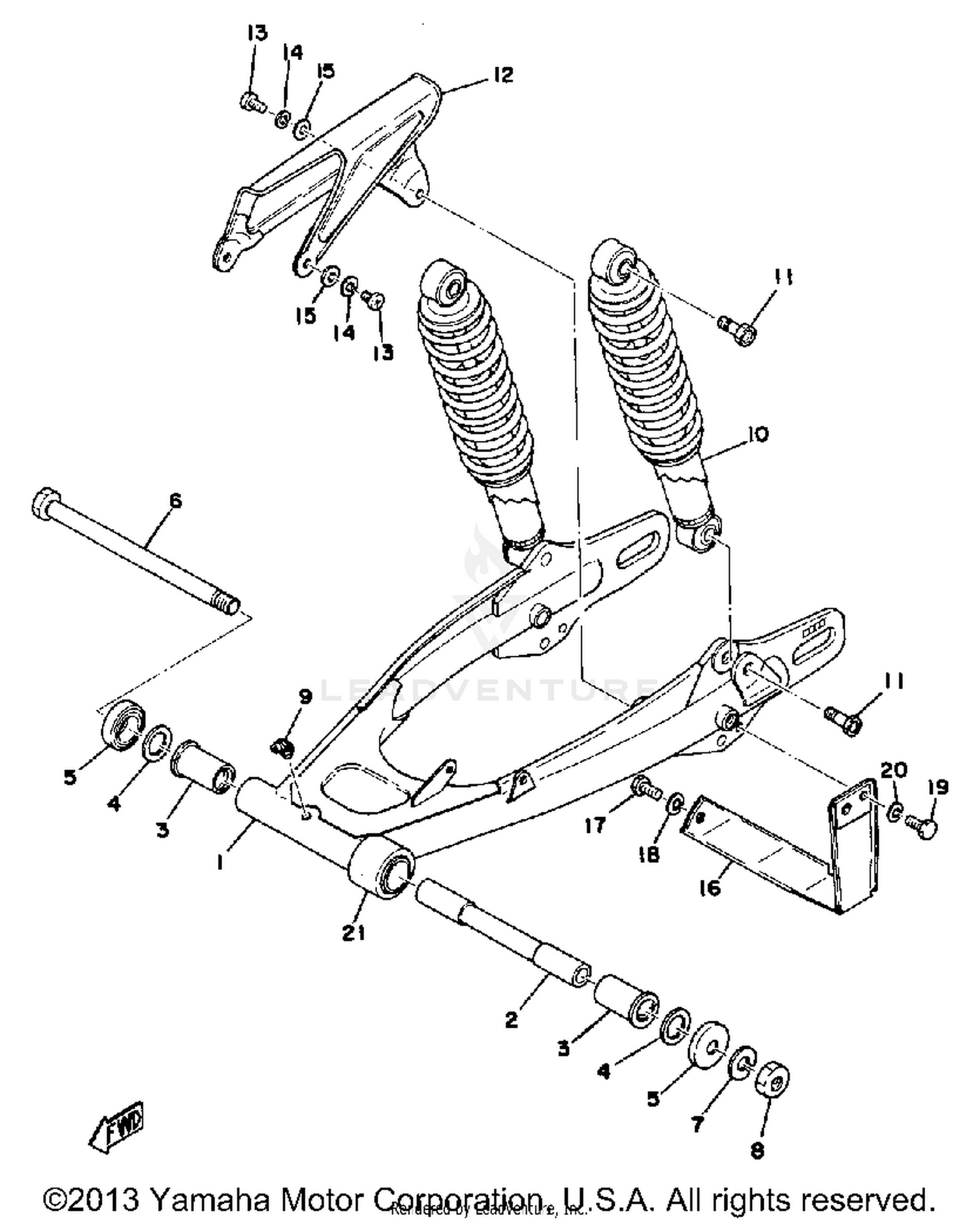

Rear Arm-rear Cushion Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
558-22110-00-33
|
$64.70 | ||
|
Unavailable |
|||
|
#2
BUSH 2
18G-22124-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH
90386-18028-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SHIM
401-22127-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, THRUST 1
401-22128-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHAFT, PIVOT
537-22141-01-00
|
$30.99 | ||
|
Unavailable |
|||
|
#7
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT
90170-12175-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NIPPLE, GREASE
93700-06005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHK/ABS ASSEMBLY, REAR
558-22210-01-00
|
$55.42 | ||
|
Unavailable |
|||
|
#11
BOLT
90109-10195-00
|
$6.99 | ||
|
Unavailable |
|||
|
#12
CASE, CHAIN
437-22311-02-33
|
$16.99 | ||
|
Unavailable |
|||
|
#13
SCREW, PAN HEAD
98580-05010-00
Superseded by 97885-05010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#16
GUARD, CHAIN
248-22318-00-33
|
$8.06 | ||
|
Unavailable |
|||
|
#17
BOLT
97001-06018-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, HEX
97313-08018-00
Superseded by 90101-08691-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL, GUARD
437-22151-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
