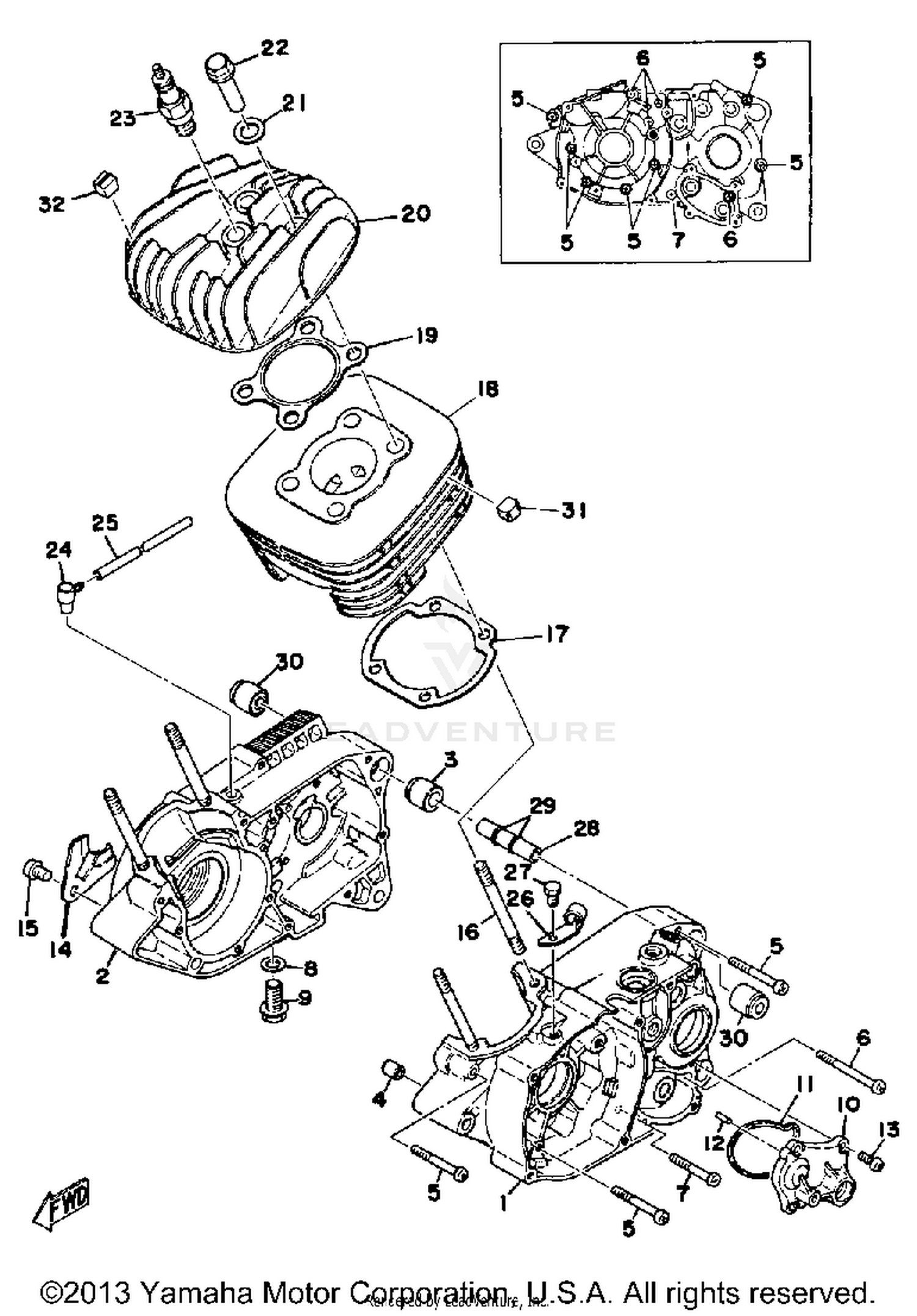

Crankcase - Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
437-15111-03-00
|
$84.18 | ||
|
Unavailable |
|||
|
#2
CRANKCASE 2
437-15121-02-00
|
$134.99 | ||
|
Unavailable |
|||
|
#3
PIN, DOWEL
99510-20020-00
Superseded by 99530-20020-00
|
$2.55 | ||
|
Unavailable |
|||
|
#4
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, PAN HEAD
98580-06550-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD (92580-06560-00
92580-06560-00
Superseded by 98580-06560-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD (90501-06040-00
98580-06040-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLUG, STRAIGHT SCREW
90340-12005-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
COVER, SHIFTER 1
437-15419-01-00
|
$78.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
RING, RUBBER
401-15449-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PIN, DOWEL
93603-12007-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER
304-15128-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD (9806-08012)
98501-08012-00
Superseded by 98580-08012-00
|
$8.49 | ||
|
Unavailable |
|||
|
#16
BOLT, STUD
90116-08065-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
GASKET, CYLINDER
3UL-11351-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
CYLINDER 1
558-11311-00-00
|
$92.76 | ||
|
Unavailable |
|||
|
#19
GASKET, CYLINDER HEAD 1
276-11181-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
HEAD, CYLINDER 1 (558-11111-00)
558-11111-01-00
|
$79.99 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-12362-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90179-08303-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
B7ES NGK SPLUG 4PK
NGK-B7ES0-00-00
Superseded by B7E-S0000-00-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
BREATHER
583-15371-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
HOSE (L200)
90445-07176-00
|
$7.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOLDER, CLUTCH CABLE
401-15441-02-00
|
$14.49 | ||
|
Unavailable |
|||
|
#27
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPACER, ENGINE MOUNT
401-15317-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
O-RING
93210-11073-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
Damper
328-15316-00-00
Superseded by 90388-08003-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
ABSORBER 1
434-11161-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
ABSORBER 1
427-11161-00-00
|
$2.77 | ||
|
Unavailable |
|||
