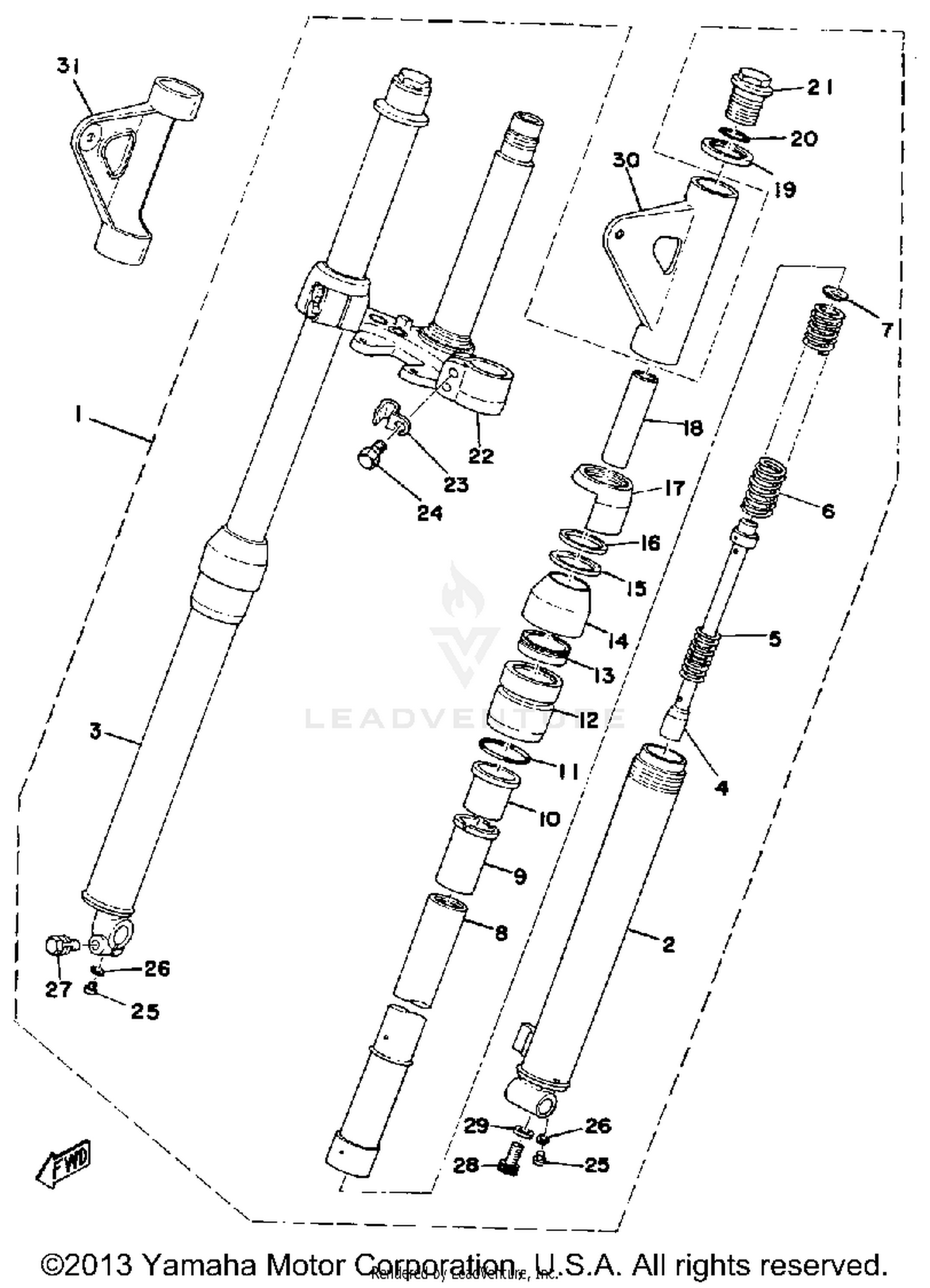

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
437-23101-01-00
|
$298.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
437-23126-00-00
|
$51.99 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 2
437-23136-00-00
|
$55.99 | ||
|
Unavailable |
|||
|
#4
CYLINDER, FRTFRK
248-23170-01-00
|
$50.99 | ||
|
Unavailable |
|||
|
#5
SPRING, SUB
248-23152-00-00
|
$1.98 | ||
|
Unavailable |
|||
|
#6
UNAVAILABLE IN PRICE BOOK (43
318-23141-01-00
|
|||
|
Unavailable |
|||
|
#7
SEAT, SPRING UPPER
304-23142-50-00
|
$4.60 | ||
|
Unavailable |
|||
|
#8
TUBE, INNER 1
437-23124-00-00
|
$58.50 | ||
|
Unavailable |
|||
|
#9
SPACER, OIL LOCK
248-23166-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#10
METAL, SLIDE 1
137-23125-01-00
|
$7.99 | ||
|
Unavailable |
|||
|
#11
O-RING
137-23147-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#12
OUTER NUT
193-23150-40-00
|
$22.99 | ||
|
Unavailable |
|||
|
#13
OIL SEAL
137-23145-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, DUST
248-23144-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET
437-23163-00-00
|
$3.85 | ||
|
Unavailable |
|||
|
#16
WASHER, LIGHT STAY
437-23161-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#17
COVER, OUTER 1
304-23122-50-00
|
$8.88 | ||
|
Unavailable |
|||
|
#18
SPACER
248-23118-00-00
|
$8.46 | ||
|
Unavailable |
|||
|
#19
GUIDE, COVER UPPER
248-23115-01-00
|
$4.80 | ||
|
Unavailable |
|||
|
#20
O-RING
146-23114-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, CAP
2K5-23111-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#22
UNDER BRACKET
437-23340-00-33
|
$94.60 | ||
|
Unavailable |
|||
|
#23
HOLDER, CABLE 1
256-23318-60-00
|
$3.30 | ||
|
Unavailable |
|||
|
#24
BOLT, W/WASHER
18G-23128-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, WITH WASHER
90119-08010-00
|
$2.65 | ||
|
Unavailable |
|||
|
#28
BOLT, HEXAGON SOCKET HEAD
91311-08020-00
Superseded by 91314-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
GASKET
214-23158-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#30
COVER, UPPER 1
438-23121-00-20
|
$41.99 | ||
|
Unavailable |
|||
|
#31
COVER, UPPER 2
438-23131-00-20
|
$41.99 | ||
|
Unavailable |
|||
