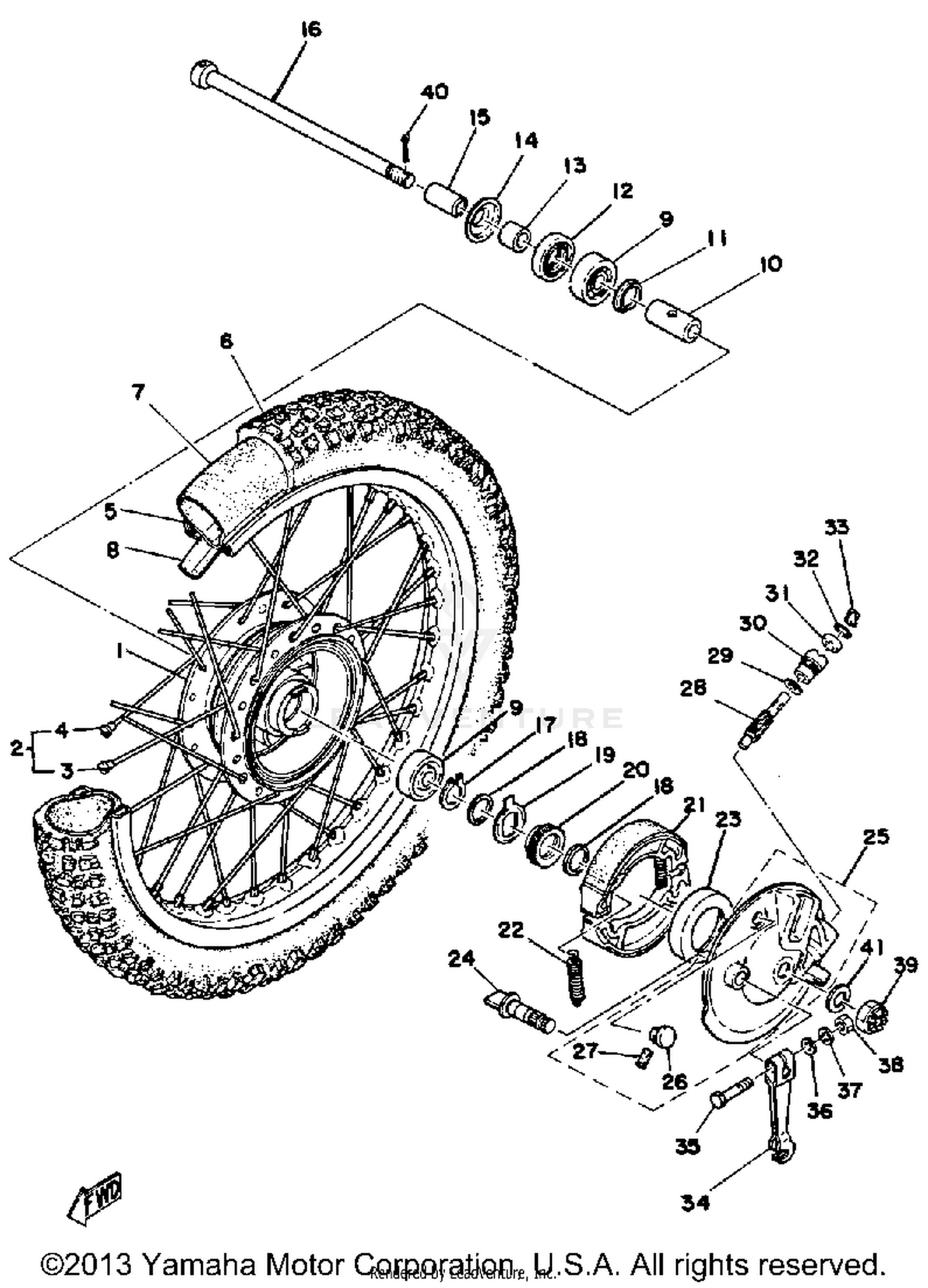

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
248-25111-00-38
Superseded by 248-25111-10-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPOKE SET, FRONT
276-25104-10-00
|
$31.99 | ||
|
Unavailable |
|||
|
#3
SPOKE SET, INNER 1
276-25196-90-00
|
$3.16 | ||
|
Unavailable |
|||
|
#4
SPOKE SET, OUTER 1
276-25197-80-00
|
$6.04 | ||
|
Unavailable |
|||
|
#5
RIM (1.40-19)
94414-19056-00
Superseded by 94414-19003-00
|
$139.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
275X19 YOKO Y620
94127-19321-00
|
$31.99 | ||
|
Unavailable |
|||
|
#7
TUBE (2.75-19)(3GX)
94227-19037-00
Superseded by 94227-19292-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, RIM (2.00-19)
94325-19027-00
Superseded by 94327-19111-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BEARING
93306-30103-00
Superseded by 93306-30102-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER
90560-12261-00
Superseded by 90560-12138-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FLANGE, SPACER
109-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL
93102-18008-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COLLAR
90387-12095-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, HUB DUST
2K5-25118-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-12099-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
AXLE, WHEEL (427-25181-00)
427-25181-10-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
99009-20400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-20269-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLUTCH, METER
183-25149-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, DRIVE
301-25135-00-00
|
$23.99 | ||
|
Unavailable |
|||
|
#21
BRAKESHOE SET
22F-W2534-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#22
SPRING, TENSION
90506-16150-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL
93105-47007-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CAMSHAFT
3Y6-25351-00-00
Superseded by 4GL-25351-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRAKE SHOE PLT ASSEMBLY
558-25120-00-38
|
$39.99 | ||
|
Unavailable |
|||
|
#26
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
LABEL, INDICATOR
437-25134-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#28
GEAR, METER
301-25138-00-00
|
$18.22 | ||
|
Unavailable |
|||
|
#29
WASHER, PLATE
90201-07076-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BUSH
109-25136-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL
93104-07003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
RING, STOP
102-25137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
LEVER, CAMSHAFT 1
5H0-25155-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, CASTLE
90171-12005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
