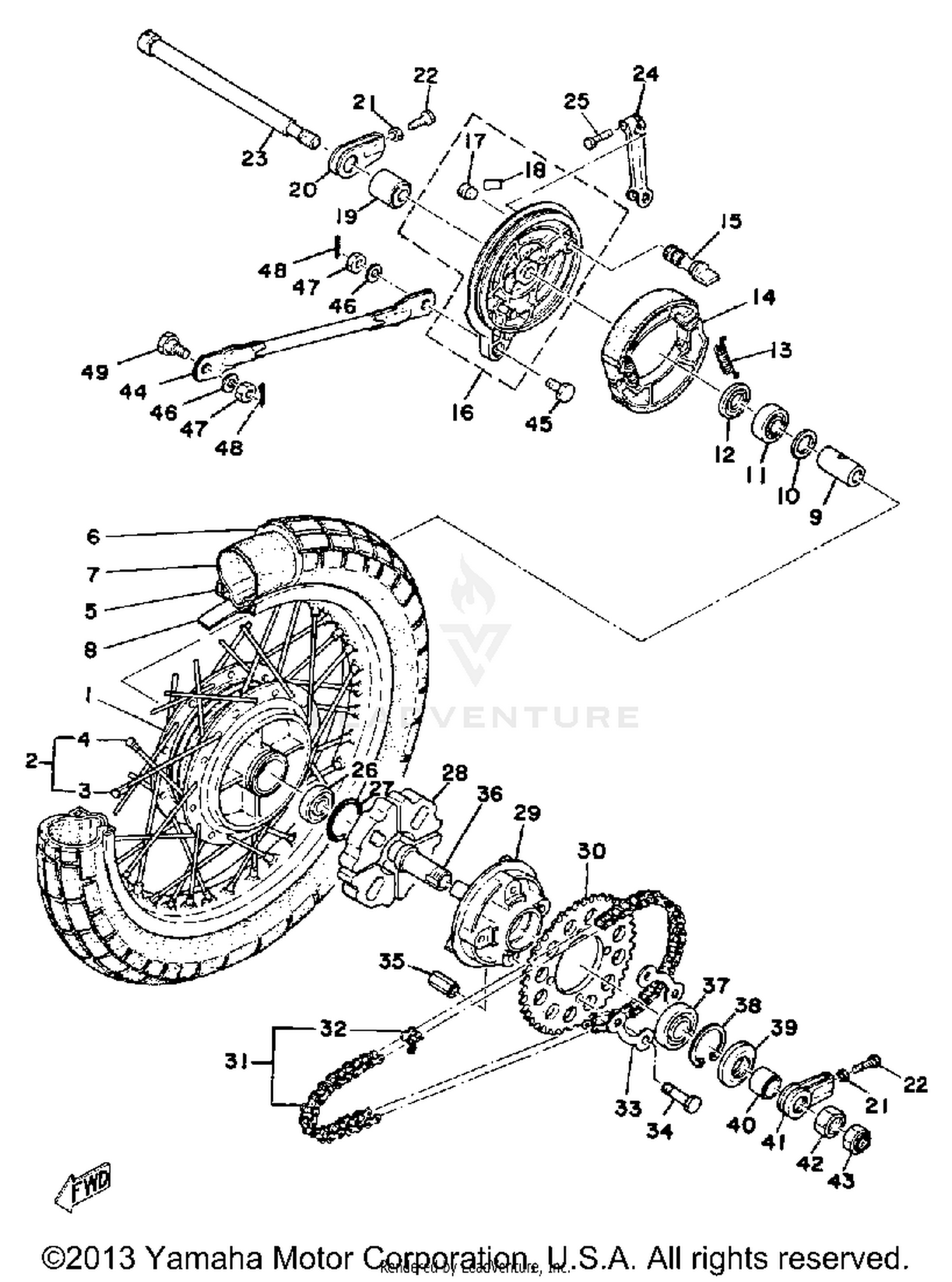

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB,REAR
183-25311-00-38
Superseded by 183-25311-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPOKE SET, REAR
183-25304-01-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPOKE SET, INNER 2
183-25396-90-00
|
$2.44 | ||
|
Unavailable |
|||
|
#4
SPOKE SET, OUTER 2
183-25397-90-00
|
$7.46 | ||
|
Unavailable |
|||
|
#5
RIM (1.40-18)
94414-18007-00
Superseded by 94414-18545-00
|
$108.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
300X18 YOKO Y620
94130-18322-00
|
$24.99 | ||
|
Unavailable |
|||
|
#7
TUBE
94230-18084-00
Superseded by 94227-18195-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, RIM (2.50-18)
94325-18043-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPACER (136-25317-00)
90560-15136-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
FLANGE, SPACER 2
146-25116-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING
93306-20209-00
Superseded by 93306-20205-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL
93104-22018-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, TENSION
90506-17328-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRAKE SHOE SET-2PCS
437-W2536-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#15
CAMSHAFT
2RH-25351-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRAKE SHOE PLATE ASSEMBLYASSY (
437-25026-10-35
|
$198.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GROMMET
90480-10068-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
LABEL, INDICATOR
437-25134-00-00
|
$1.59 | ||
|
Unavailable |
|||
|
#19
COLLAR
90387-15425-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
PULLER, CHAIN 1
248-25388-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
AXLE, WHEEL
382-25381-00-00
|
$33.99 | ||
|
Unavailable |
|||
|
#24
LEVER, CAMSHAFT
214-25355-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#26
BEARING
93306-20204-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
O-RING
93210-42101-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER
304-25364-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLUTCH, HUB
58K-25366-00-00
|
$112.99 | ||
|
Unavailable |
|||
|
#30
SPROCKET, DRIVN 49T (49T)
276-25449-10-00
|
$85.99 | ||
|
Unavailable |
|||
|
#
STD (HT1BM) PN302SPROCKET, DRIV
276-25452-10-00
|
$49.99 | ||
|
Unavailable |
|||
|
#
SPROCKET, DRVN45T (45T)
183-25446-20-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CHAIN
94580-24116-00
Superseded by 9Y582-51115-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CHAIN JOINT
94680-24001-00
Superseded by 94681-64001-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER
102-25412-00-00
Superseded by 4AW-25412-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
90101-08672-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, SPEC''L SHAPE (30)
90179-08639-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
AXLE, SPROCKET
183-25387-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BEARING
93306-00406-00
Superseded by 93306-00438-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CIRCLIP
99009-42500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
OIL SEAL
93106-26005-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#40
COLLAR
90387-20165-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
PULLER, CHAIN 1
214-25388-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT, HEXAGON (137-25385-00)
90170-20167-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
BAR, TENSION
401-25371-01-00
|
$4.20 | ||
|
Unavailable |
|||
|
#45
BOLT
90109-08063-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#47
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Unavailable |
|||
|
#48
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT
90109-08368-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
