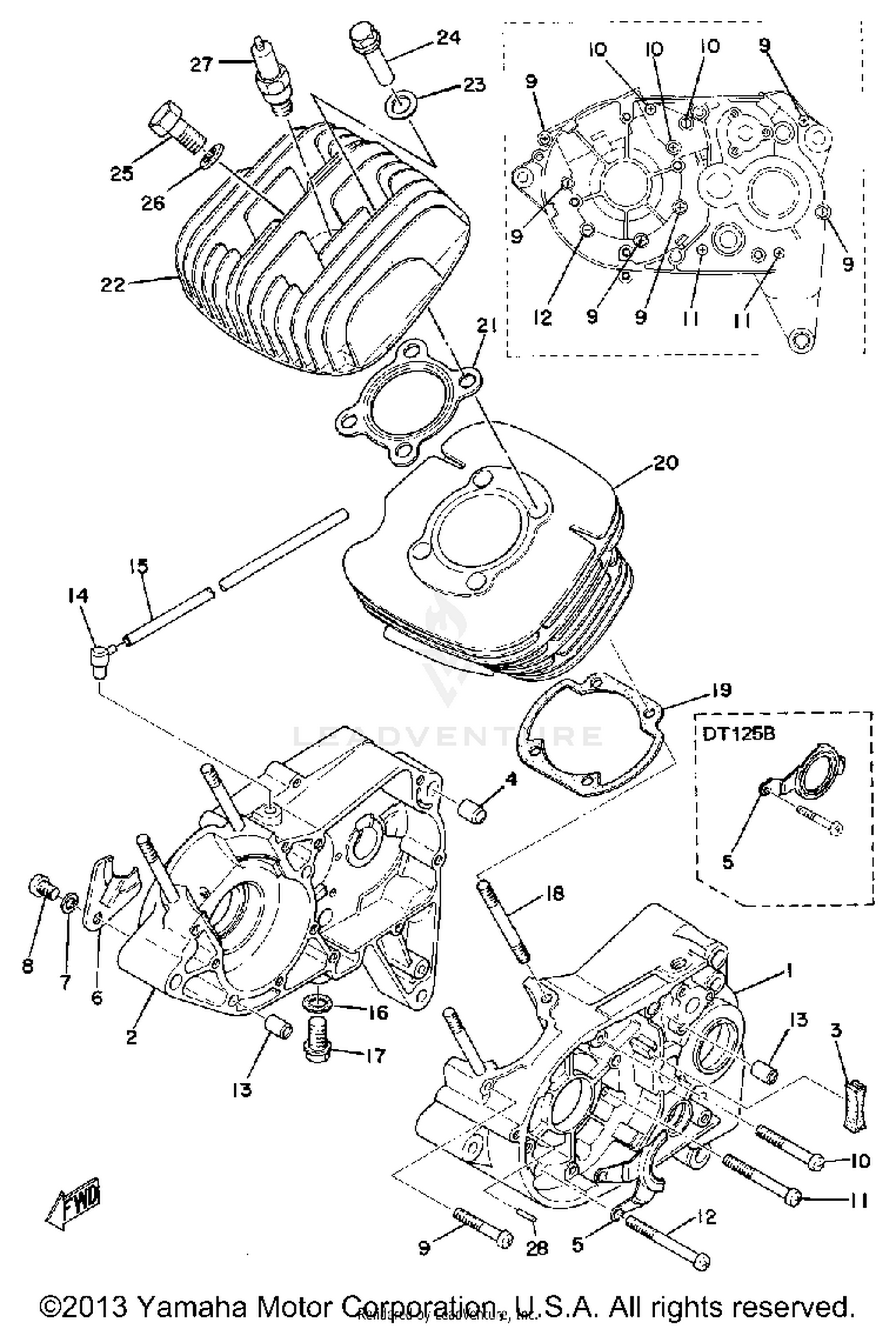

Crankcase - Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE 1
248-15111-02-00
|
$111.99 | ||
|
Unavailable |
|||
|
#
HOLDER
444-15118-00-00
|
$8.88 | ||
|
Unavailable |
|||
|
#2
CRANKCASE 2
444-15121-01-00
|
$133.99 | ||
|
Unavailable |
|||
|
#3
GROMMET
248-15357-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOLDER
304-15118-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#6
HOLDER
304-15128-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
92502-08016-00
Superseded by 98580-08016-00
|
$7.49 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD (92503-06045-00
98580-06545-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW,PANHEAD
98580-06055-00
Superseded by 98580-06555-00
|
$5.10 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN HEAD
98580-06565-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD (92580-06560-00
92580-06560-00
Superseded by 98580-06560-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
PIN, DOWEL
99530-10014-00
Superseded by 99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
BREATHER
583-15371-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
HOSE
90446-07009-00
|
$1.05 | ||
|
Unavailable |
|||
|
#16
GASKET
90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLUG, STRAIGHT SCREW
90340-12005-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, STUD
90116-08064-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GASKET, CYLINDER
248-11351-00-00
Superseded by 1WE-11351-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
CYLINDER 1
316-11311-02-00
|
$234.99 | ||
|
Unavailable |
|||
|
#21
GASKET, CYLINDER HEAD 1
248-11181-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
HEAD, CYLINDER 1
444-11111-00-00
|
$56.50 | ||
|
Unavailable |
|||
|
#23
WASHER, PLATE
90201-12362-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT
90179-08303-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLUG, STRAIGHT SCRW (214-11197-
90340-14022-00
|
$4.40 | ||
|
Unavailable |
|||
|
#26
GASKET
214-11198-01-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#27
BR8ES NGK SCREW TOP
NGK-B8ES0-00-00
Superseded by BR8-ES000-00-00
|
$3.49 | ||
|
Unavailable |
|||
|
#28
PIN, DOWEL
93603-14026-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
