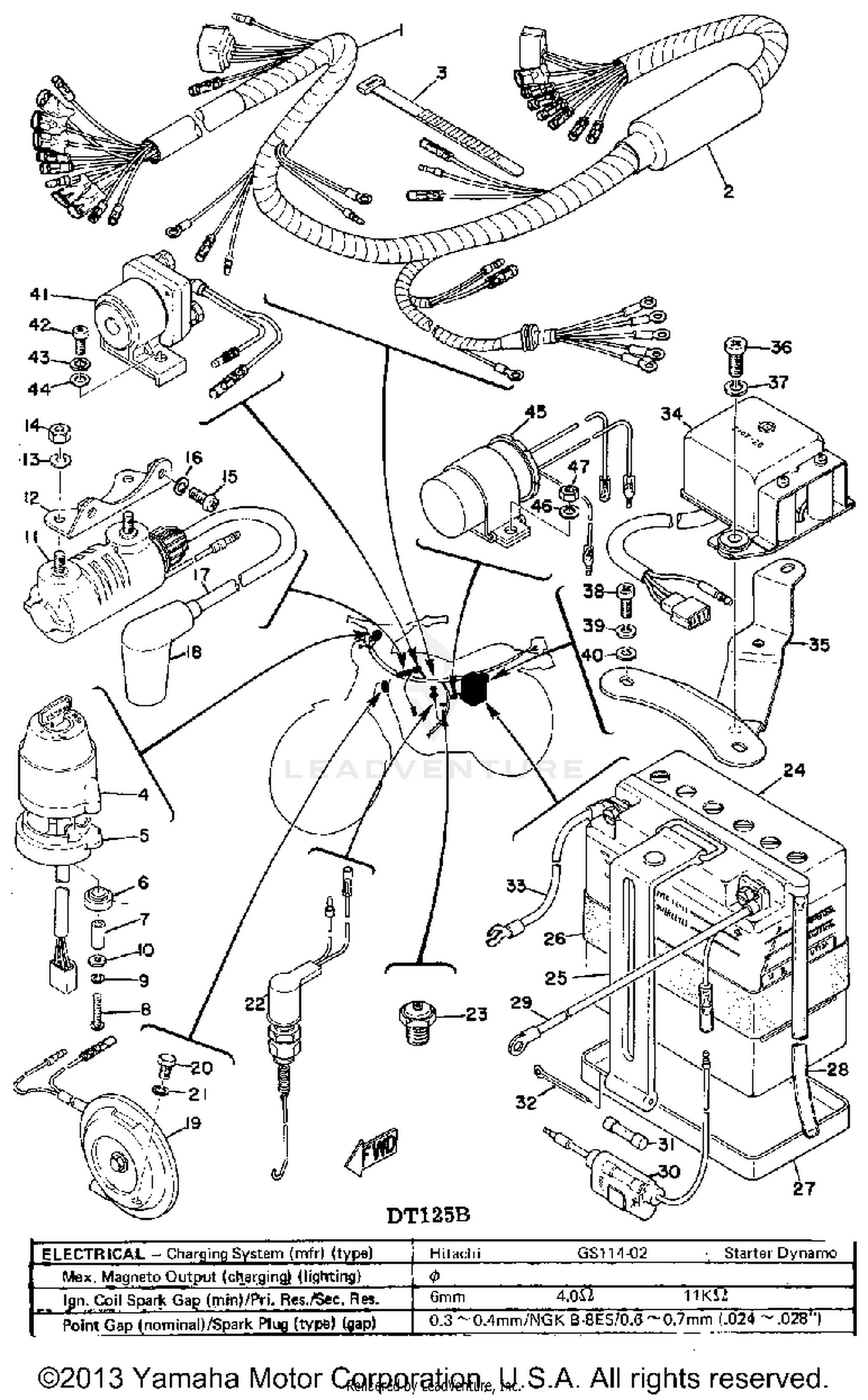

Electrical Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
WIRE HARNESS ASSEMBLY
444-82590-10-00
|
$57.16 | ||
|
Unavailable |
|||
|
#
WIRE HARNESS ASSEMBLY
444-82590-11-00
|
$51.88 | ||
|
Unavailable |
|||
|
#2
COVER, CONNECTER
444-82599-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#3
BAND, SWITCH CORD
437-83936-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
MAIN SWITCH ASSEMBLY
444-82508-11-00
|
$38.92 | ||
|
Unavailable |
|||
|
#
MAIN SWITCH ASSEMBLY
444-82508-12-00
|
$31.56 | ||
|
Unavailable |
|||
|
#5
DAMPER, MAIN SWCH 1SWITCH 1
437-82555-00-00
|
$6.66 | ||
|
Unavailable |
|||
|
#6
DAMPER, STOPPER
1M1-82556-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#7
COLLAR, MAIN SWITCH
437-82516-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98580-05020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#11
IGNITION COIL ASSEMBLY
254-82310-60-00
|
$196.99 | ||
|
Unavailable |
|||
|
#12
BRACKET, IGN COIL
248-82316-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#13
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#17
CORD, HIGHT TENSION 1
137-82341-01-00
|
$17.99 | ||
|
Unavailable |
|||
|
#18
PLUG CAP ASSY
56J-82370-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
HORN
444-83371-21-00
|
$31.56 | ||
|
Unavailable |
|||
|
#20
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#22
STOP SWITCH ASSEMBLY
248-82530-02-00
|
$40.99 | ||
|
Unavailable |
|||
|
#23
REVERSE SWITCH ASSEMBLY
136-82540-00-00
Superseded by 136-82540-03-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
12N73BY YUASA BATTE
BTY-12N73-B0-00
Superseded by 12N-73BY0-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAND, BATTERY
261-82131-00-00
|
$7.52 | ||
|
Unavailable |
|||
|
#26
BAND, BATTERY
1UA-82124-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#27
SEAT, BATTERY
173-82122-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#28
HOSE
90445-08248-00
Superseded by 90445-08719-00
|
$10.99 | ||
|
Unavailable |
|||
|
#29
WIRE, PLUS LEAD
261-82115-01-00
|
$11.49 | ||
|
Unavailable |
|||
|
#30
FUSE HOLDER ASSY
2UJ-82150-01-00
Superseded by 2UJ-82150-02-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
FUSE
1A0-82161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN,COTTER
91401-40040-00
Superseded by 91490-40045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
WIRE, MINUS LEAD
261-82116-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#34
VOLTAGE REG ASSEMBLY
444-81910-10-00
|
$290.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
PLATE, REG FITTING
444-81915-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#36
SCREW, PAN HEAD
98503-06014-00
Superseded by 98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#38
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Unavailable |
|||
|
#39
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#40
WASHER, PLATE
90201-06038-00
Superseded by 90201-06431-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#41
STARTER RELAY ASSY
8J9-81940-10-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Unavailable |
|||
|
#43
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#44
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#45
FLASHER RELAY ASSEMBLY
444-83350-71-00
|
$56.99 | ||
|
Unavailable |
|||
|
#46
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#47
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Unavailable |
|||
