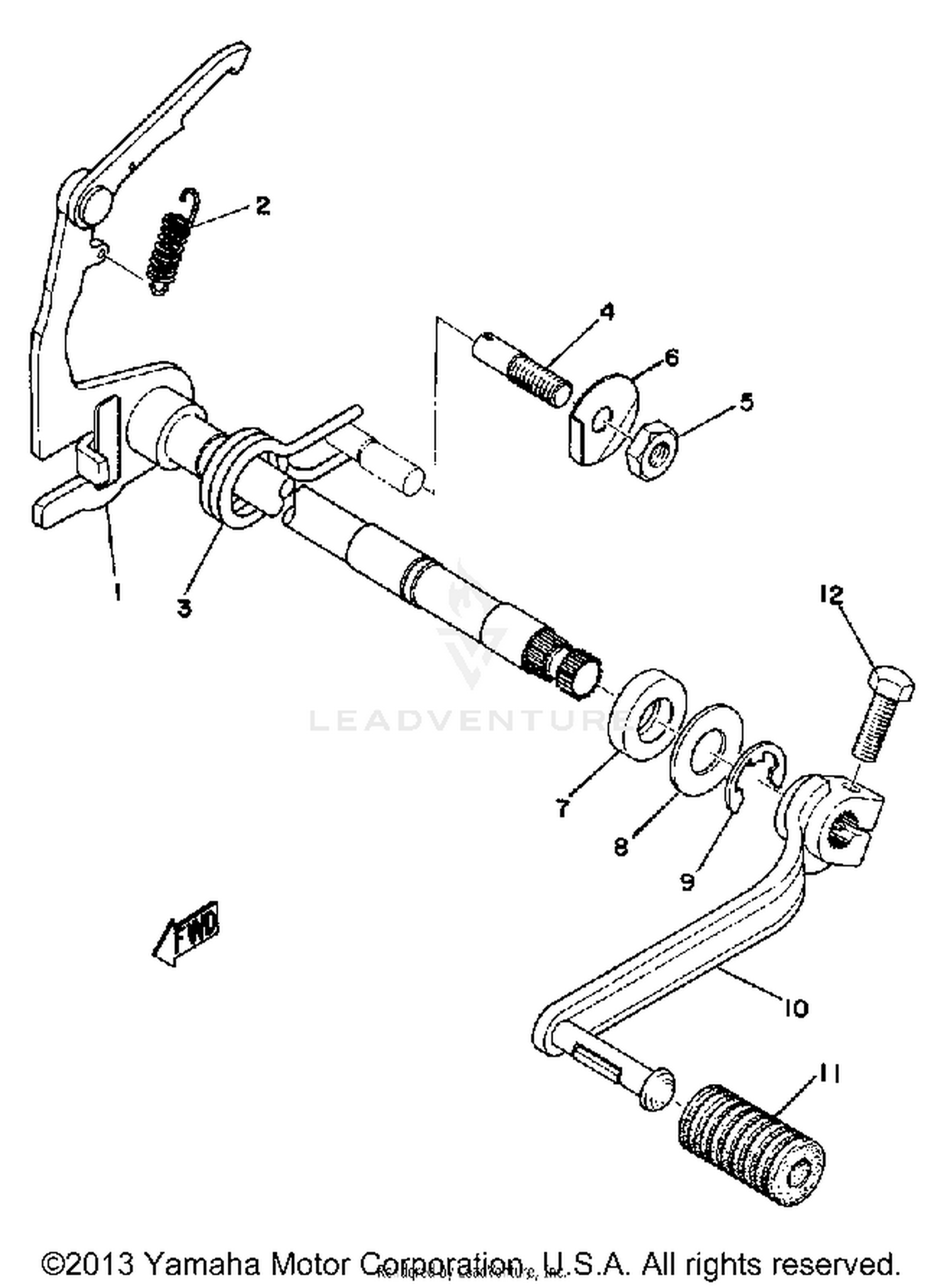

Shifter 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHIFT SHAFT ASY. 1
248-18101-02-00
Superseded by 3M5-18101-01-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, TENSION
90506-09009-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, TORSION (132-18124-00)
90508-32207-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW
90149-08094-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, HEXAGON
90170-08029-00
Superseded by 90170-08193-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, LOCK
90215-08014-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL, SDO-TYPE
93109-14010-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-14220-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CIRCLIP
99001-12600-00
|
$5.70 | ||
|
Available to order. Add to View Price |
|||
|
#10
PEDAL, SHIFT
173-18111-01-93
|
$40.99 | ||
|
Unavailable |
|||
|
#11
COVER, SHIFT PEDAL
132-18113-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
