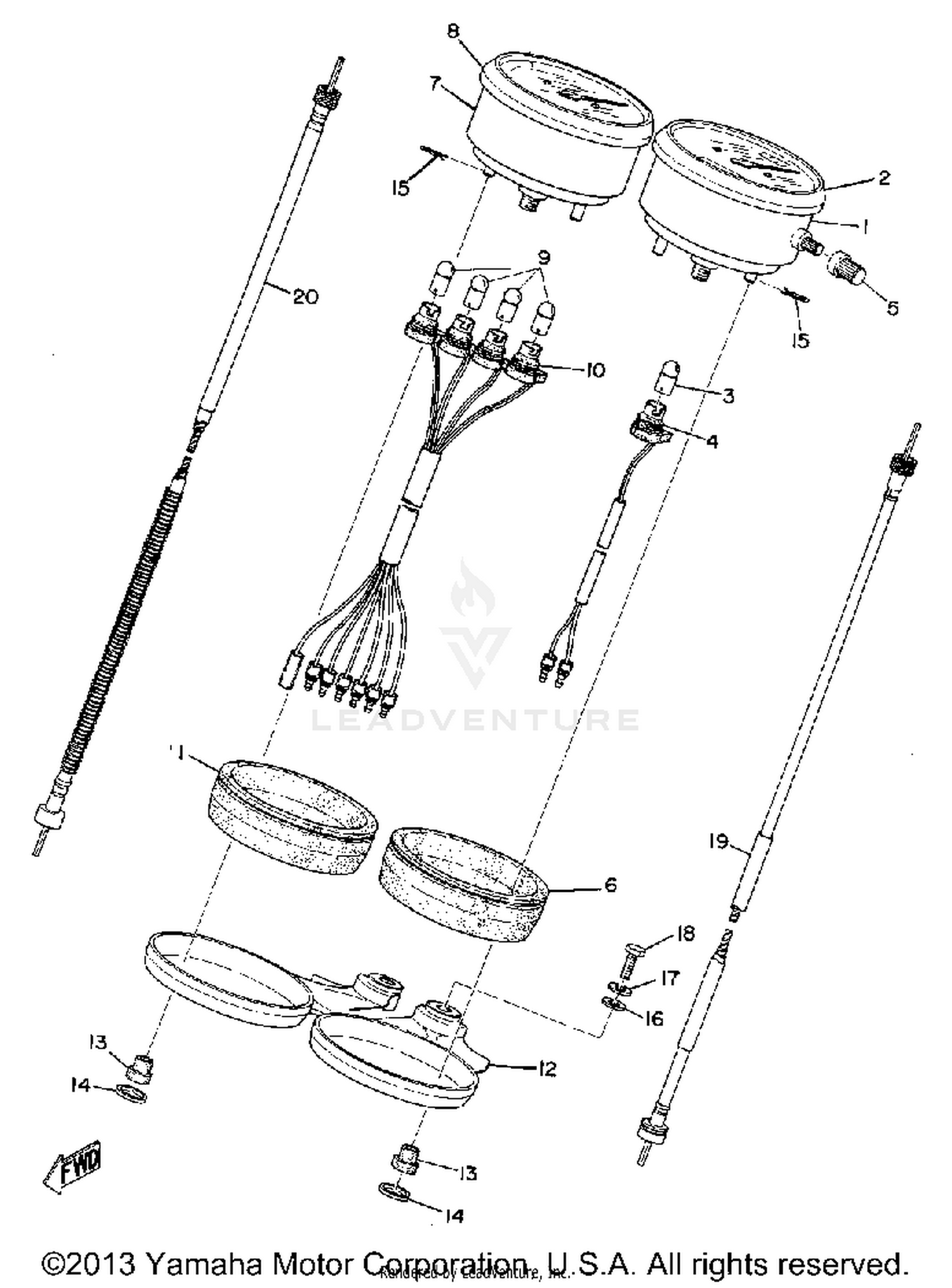

Speedometer - Tachometer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSEMBLY
444-83570-41-00
|
$93.99 | ||
|
Unavailable |
|||
|
#2
DAMPER
437-83513-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#3
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
SOCKET, METER
438-83536-30-00
|
$9.28 | ||
|
Unavailable |
|||
|
#5
KNOB, TRIP METER
308-83578-30-00
|
$3.76 | ||
|
Unavailable |
|||
|
#6
DAMPER 2
438-83526-00-00
|
$6.66 | ||
|
Unavailable |
|||
|
#7
TACHOMETER ASSEMBLY
444-83540-01-00
|
$96.99 | ||
|
Unavailable |
|||
|
#8
DAMPER
437-83513-00-00
|
$5.86 | ||
|
Unavailable |
|||
|
#9
BULB (12V-3.4W)
123-83516-21-00
Superseded by 123-83516-21-XX
|
$4.75 | ||
|
Unavailable |
|||
|
#10
SOCKET CORD ASSEMBLY
443-83520-00-00
|
$19.50 | ||
|
Unavailable |
|||
|
#11
DAMPER
438-83592-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#12
BRACKET, METER
438-83519-02-98
|
$71.99 | ||
|
Unavailable |
|||
|
#13
DAMPER
437-83523-00-00
|
$6.24 | ||
|
Unavailable |
|||
|
#14
WASHER, SPECIAL
437-83524-00-00
|
$4.75 | ||
|
Unavailable |
|||
|
#15
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
97313-06030-00
Superseded by 97013-06030-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPEEDOMETER CABLE AS
3J0-83550-00-00
Superseded by 1JN-83550-02-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
TACHOMETER CABLE
444-83560-01-00
|
$16.99 | ||
|
Unavailable |
|||
