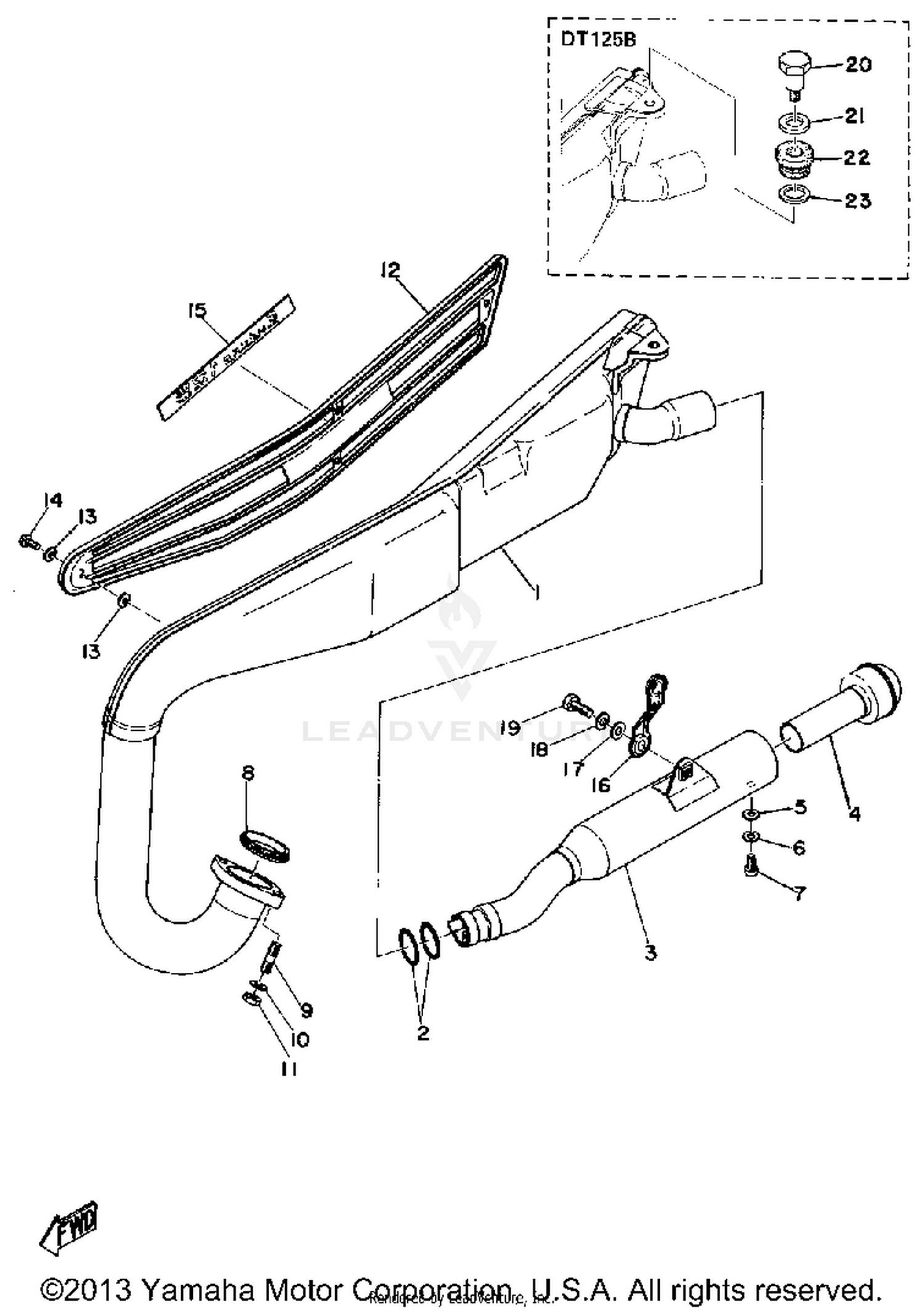

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE ASSEMBLY L
444-14610-01-00
|
$222.99 | ||
|
Unavailable |
|||
|
#2
O-RING
93210-27250-00
|
$8.99 | ||
|
Unavailable |
|||
|
#3
SILENCER, EXHAUST
444-14753-01-00
|
$73.89 | ||
|
Unavailable |
|||
|
#4
PIPE, OUTLET
438-14752-00-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, EXHAUST PIPE
152-14613-00-00
Superseded by 3PA-14613-10-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, STUD (392-14651-00)
90116-06146-00
|
$5.49 | ||
|
Unavailable |
|||
|
#10
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#12
PROTECTOR, MUFF 1
444-14718-00-00
|
$62.99 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER, PLATE
90202-05005-00
Superseded by 90202-05188-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, BIND
98903-06010-00
Superseded by 98980-06010-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
EMBLEM, PROTECTOR
444-14729-01-00
|
$4.40 | ||
|
Unavailable |
|||
|
#16
STAY, MUFFLER
444-14791-01-00
|
$18.22 | ||
|
Unavailable |
|||
|
#17
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#19
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.10 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT (276-14719-00)
90109-08391-00
|
$4.85 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-12190-00
Superseded by 90201-126A7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER 1
168-21638-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-18262-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
