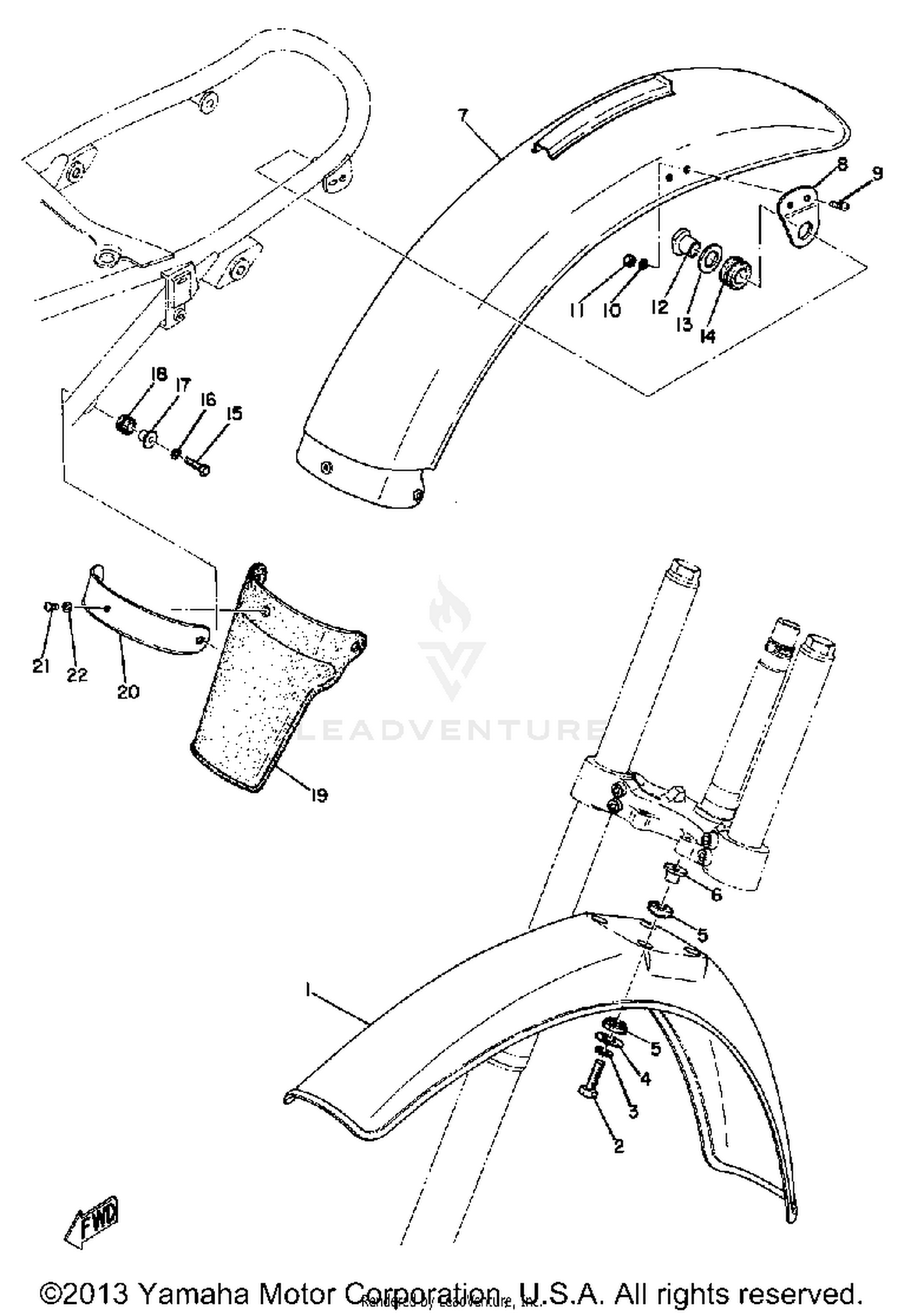

Front Fender - Rear Fender Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FENDER, FRONT
403-21511-01-20
|
$102.99 | ||
|
Unavailable |
|||
|
#2
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER 1
322-21541-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-06388-00
Superseded by 90387-06158-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
FENDER, REAR
444-21610-00-20
|
$67.99 | ||
|
Unavailable |
|||
|
#8
STAY, FENDER 1
248-21613-00-91
|
$4.60 | ||
|
Unavailable |
|||
|
#9
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#11
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, REAR FENDER
248-21635-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90201-12472-00
Superseded by 90201-126A7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
DAMPER 1
168-21638-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Unavailable |
|||
|
#16
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#17
COLLAR
90387-07391-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
GROMMET
90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
GUARD, MUD
248-21629-00-00
|
$8.06 | ||
|
Unavailable |
|||
|
#20
BAND, FLAP
248-21622-00-33
|
$4.15 | ||
|
Unavailable |
|||
|
#21
SCREW, PAN HEAD
98580-06012-00
Superseded by 97885-06012-00
|
$3.10 | ||
|
Unavailable |
|||
|
#22
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
