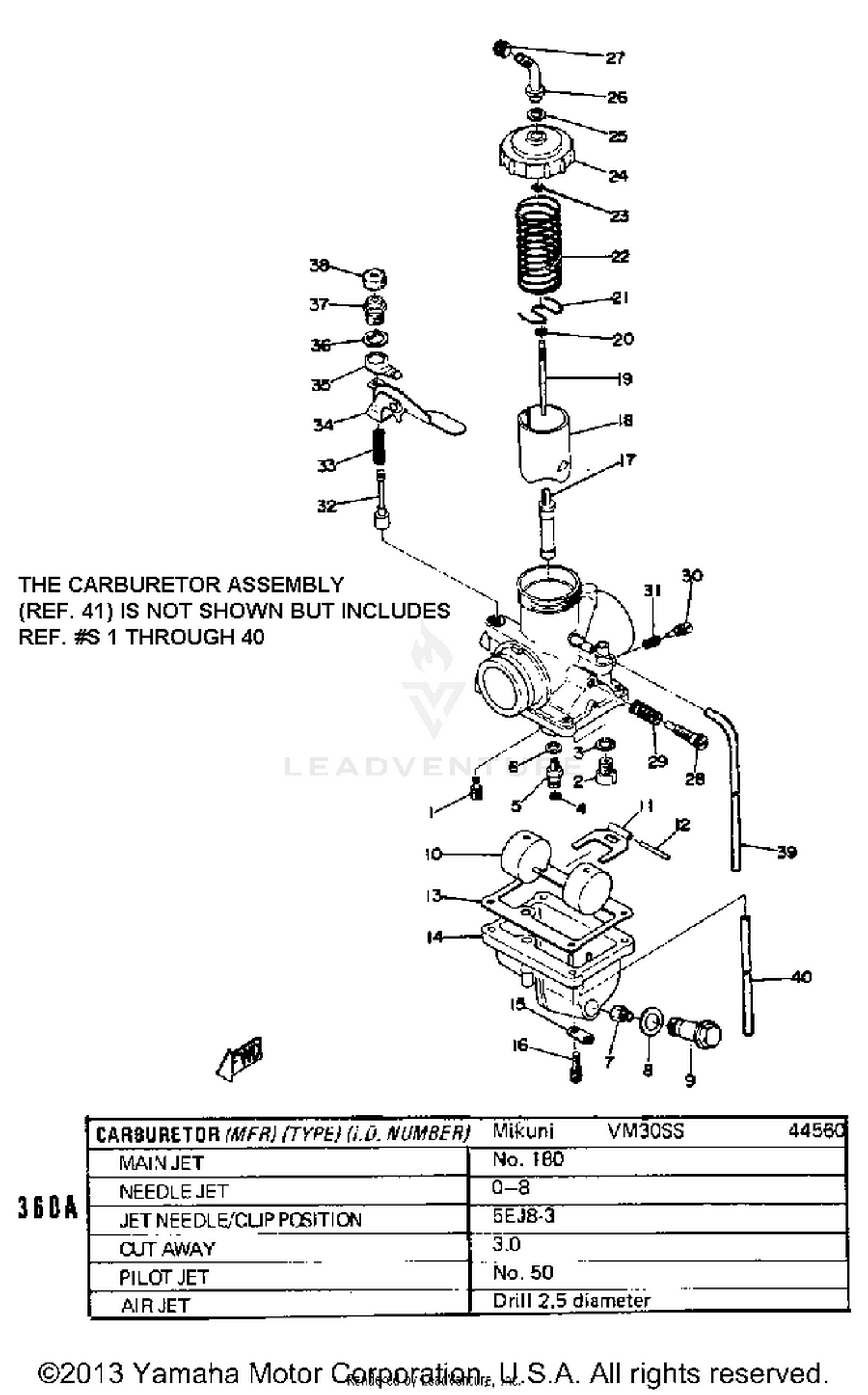

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JET, PILOT #50
193-14142-50-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, PILOT #60
193-14142-60-00
|
$5.00 | ||
|
Unavailable |
|||
|
#2
NEEDLE VALVE SET
168-14190-25-00
Superseded by 23L-14107-25-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, VALVE SEAT
214-14195-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
O-RING
214-14147-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SETTER, NEEDLE JET
137-14145-00-00
|
|||
|
Unavailable |
|||
|
#6
WASHER, MAIN JET
137-14153-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
JET, MAIN (#140)
137-14143-28-00
Superseded by 137-14143-28-A0
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#180)
137-14143-36-00
Superseded by 137-14143-36-A1
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#130)
137-14143-26-00
Superseded by 137-14143-26-A0
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#170)
137-14143-34-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#190)
137-14143-18-00
|
$4.10 | ||
|
Unavailable |
|||
|
#
JET, MAIN (#150)
137-14143-30-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET
248-14198-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#9
BOLT, BANJO
438-14166-00-00
|
$20.34 | ||
|
Unavailable |
|||
|
#10
FLOAT
214-14185-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#11
ARM, FLOAT
214-14187-00-00
|
$9.48 | ||
|
Unavailable |
|||
|
#12
PIN, FLOAT
137-14186-01-00
Superseded by 127-14186-00-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, FLOAT CHAMBER
438-14184-00-00
|
$12.52 | ||
|
Unavailable |
|||
|
#14
BODY, FLOAT CHMBR 1
214-14181-00-00
Superseded by 214-14181-12-00
|
$120.99 | ||
|
Unavailable |
|||
|
#15
PLATE
132-14146-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#17
NOZZLE, MAIN
280-14141-30-00
|
$11.46 | ||
|
Unavailable |
|||
|
#
NOZZLE, MAIN
445-14141-38-00
|
$22.32 | ||
|
Unavailable |
|||
|
#18
VALVE, THROTTLE (2.0)
211-14142-20-00
|
|||
|
Unavailable |
|||
|
#
VALVE, THROTTLE (3.0)
211-14112-30-00
|
$24.99 | ||
|
Unavailable |
|||
|
#19
NEEDLE
438-14116-08-00
|
$11.54 | ||
|
Unavailable |
|||
|
#
NEEDLE
168-14116-07-00
|
$0.05 | ||
|
Unavailable |
|||
|
#20
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAT, SPRING
214-14136-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#22
SPRING,THR0TTLE VALVE
438-14131-00-00
|
$7.26 | ||
|
Unavailable |
|||
|
#23
CLIP
363-14137-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
TOP, MIXING CHAMBER
363-14158-00-33
|
$11.46 | ||
|
Unavailable |
|||
|
#
GASKET
363-14198-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GUIDE, CABLE
363-14155-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#27
NUT, CABLE ADJUSTING
127-14161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, THROTTLE STOP
438-14122-00-00
|
$20.99 | ||
|
Unavailable |
|||
|
#29
SPRING, THROTTLE STOP
493-14133-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, THROTTLE
493-14122-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#
THROTTLE SCREW SET
23X-14103-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#
AIR SCREW SET
152-14123-00-00
Superseded by 23X-14104-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
SPRING, THROTTLE STOP
137-14133-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#
SPRING, AIR ADJUSTING
127-14134-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
PLUNGER, STARTER
132-14171-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPRING, PLUNGER
156-14135-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
LEVER, STARTER LH
248-14175-00-00
|
$11.99 | ||
|
Unavailable |
|||
|
#35
PLATE, STARTER LEVER
170-14178-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#36
WASHER, STARTER LEVER
132-14179-00-00
|
$1.30 | ||
|
Unavailable |
|||
|
#37
CAP, PLUNGER
802-14174-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#38
COVER, PLUNGER CAP
802-14173-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#39
HOSE (L200)
214-14197-00-00
Superseded by 90445-05N13-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIPE, AIR VENT
183-14197-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
CARBURETOR ASSY
438-14101-60-00
|
$74.24 | ||
|
Unavailable |
|||
|
#
CARBURETOR ASSY
445-14101-61-00
|
$90.29 | ||
|
Unavailable |
|||
