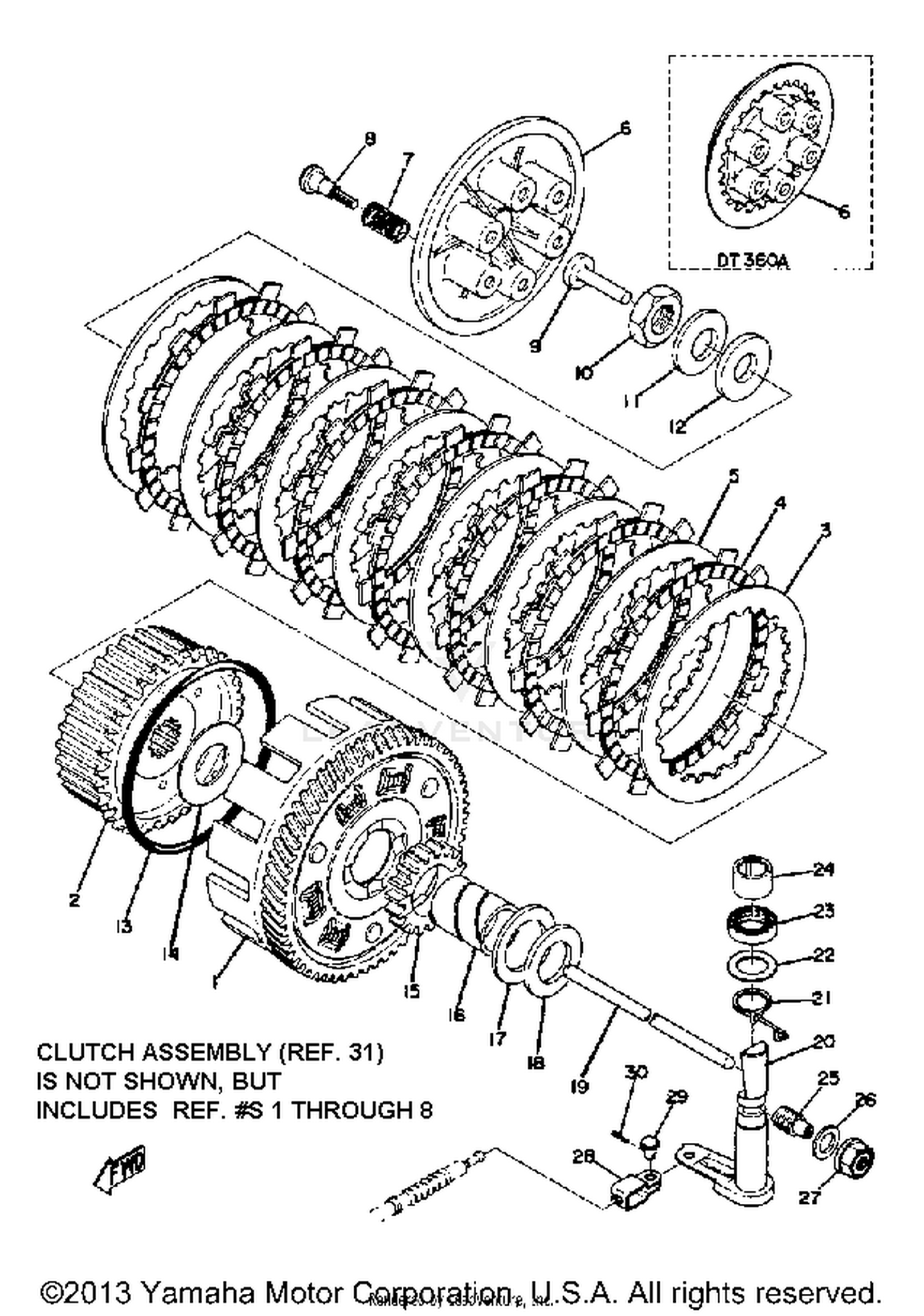

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRI DRIVEN GEAR
363-16150-00-00
|
$117.99 | ||
|
Unavailable |
|||
|
#
PRI DRIVEN GEAR
364-16150-00-00
|
$117.99 | ||
|
Unavailable |
|||
|
#2
BOSS, CLUTCH
363-16371-00-00
|
$29.94 | ||
|
Unavailable |
|||
|
#
BOSS, CLUTCH
214-16371-02-00
|
$47.99 | ||
|
Unavailable |
|||
|
#3
PLATE, CLUTCH 1
214-16324-00-00
|
$11.66 | ||
|
Unavailable |
|||
|
#4
PLATE, FRICTION 2
168-16321-10-00
Superseded by 5Y1-16331-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#
PLATE, FRICTION
363-16321-00-00
Superseded by 363-16321-09-00
|
$20.99 | ||
|
Unavailable |
|||
|
#5
PLATE, CLUTCH 2
371-16325-00-00
Superseded by 371-16325-10-00
|
$14.99 | ||
|
Unavailable |
|||
|
#6
PLATE, PRESSURE
214-16351-01-00
|
$26.68 | ||
|
Unavailable |
|||
|
#
PLATE, PRESSURE
363-16351-00-00
|
$14.62 | ||
|
Unavailable |
|||
|
#7
SPRING, CLUTCH
90501-23138-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, SPECL SHAPE
90149-05057-00
Superseded by 90149-05147-00
|
$1.10 | ||
|
Unavailable |
|||
|
#9
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#
ROD, PUSH
174-16356-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90170-18089-00
|
$6.99 | ||
|
Unavailable |
|||
|
#11
SPRING, BELLEVILLE
214-16119-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#
WASHER(N15)
92901-18100-00
Superseded by 92907-18100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING
93211-10232-00
|
$12.60 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, THRUST 2
170-16164-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
GEAR, KICK PINION (18T)
445-15631-00-00
|
$34.82 | ||
|
Unavailable |
|||
|
#
GEAR, KICK PINION (18T)
438-15631-00-00
|
$33.20 | ||
|
Unavailable |
|||
|
#16
SPACER
214-16181-00-00
|
$14.42 | ||
|
Unavailable |
|||
|
#
SPACER
363-16181-00-00
|
$14.62 | ||
|
Unavailable |
|||
|
#17
PLATE, THRUST
384-16154-00-00
|
|||
|
Unavailable |
|||
|
#18
PLATE, THRUST 1
363-16154-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
ROD, PUSH
634-16356-00-00
|
|||
|
Unavailable |
|||
|
#
ROD, PUSH
363-16356-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#20
AXLE, PUSH LEVER
434-16382-01-00
|
$60.99 | ||
|
Unavailable |
|||
|
#21
SPRING, TORSION
90508-12131-00
|
$1.65 | ||
|
Unavailable |
|||
|
#22
WASHER, PLATE
90201-17327-00
Superseded by 90201-18262-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
OIL SEAL
93102-17004-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
BEARING
93315-11720-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW, ADJUSTING
363-16343-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#
SCREW, ADJUSTING
364-16343-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET
90430-12036-00
Superseded by 90430-12207-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, ADJUSTING
363-16344-00-00
Superseded by 583-16344-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
JOINT
214-16389-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, CLEVIS
90240-06005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIN, COTTER
91401-10010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLUTCH ASSEMBLY
445-16301-00-00
|
$136.99 | ||
|
Unavailable |
|||
|
#
CLUTCH ASSEMBLY
438-16301-00-00
|
$129.99 | ||
|
Unavailable |
|||
