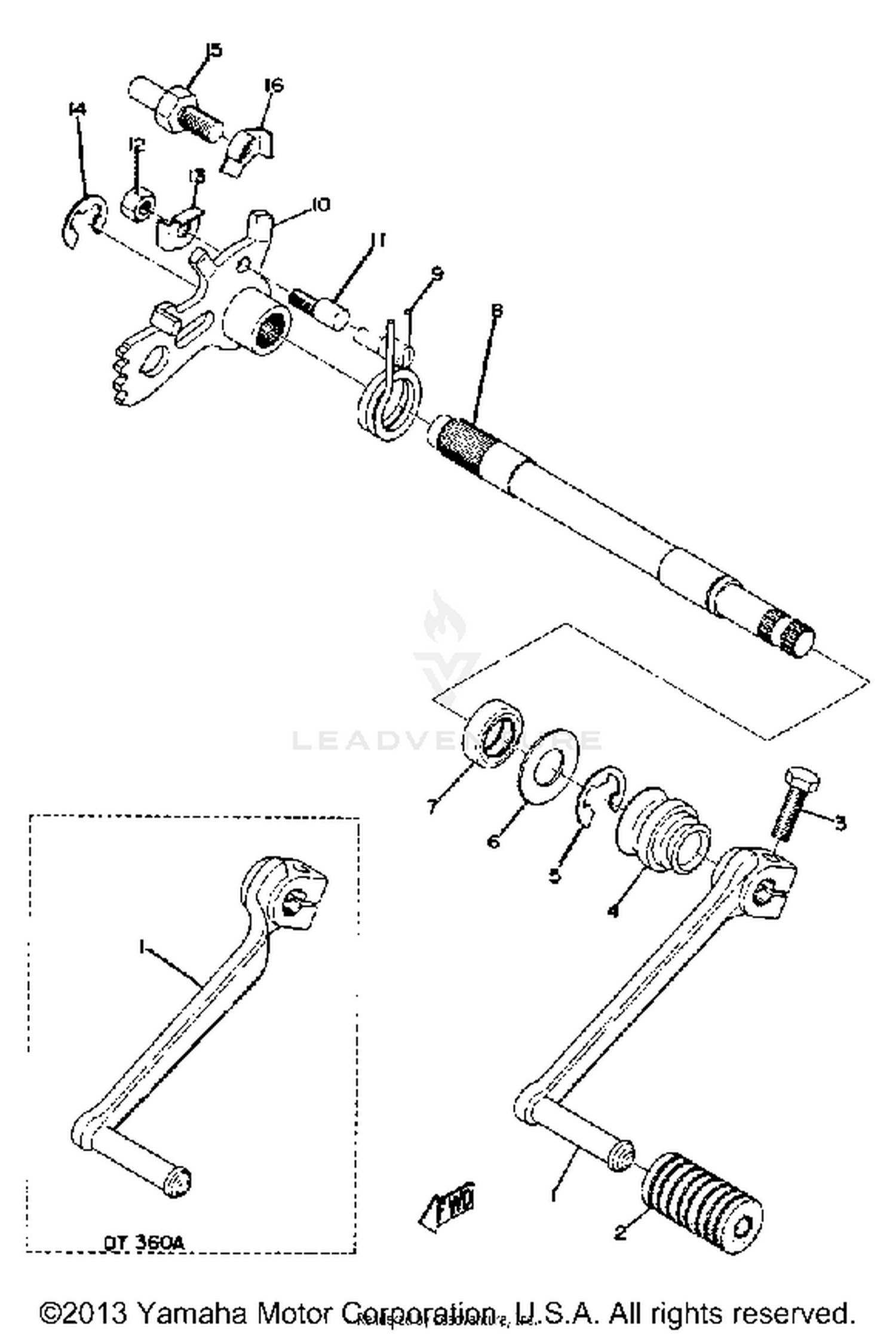

Shifter 2 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, SHIFT
438-18111-00-93
Superseded by 3Y1-18111-00-00
|
$45.99 | ||
|
Unavailable |
|||
|
#
PEDAL, SHIFT
445-18111-00-93
|
$49.33 | ||
|
Unavailable |
|||
|
#2
COVER, SHIFT PEDAL
132-18113-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
97321-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT
214-18131-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#5
CIRCLIP
93430-12009-00
Superseded by 99001-12600-00
|
$5.70 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE
90201-14220-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL, SDO-TYPE
93109-14005-00
Superseded by 93109-14010-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SHAFT, CHANGE
363-18125-00-00
|
$23.94 | ||
|
Unavailable |
|||
|
#9
SPRING
90508-32052-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER, CHANGE 1
434-18121-00-00
|
$22.16 | ||
|
Unavailable |
|||
|
#11
SCREW, ADJUSTING
90149-06017-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, HEXAGON
95301-06600-00
Superseded by 95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, LOCK
90215-06016-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#14
CIRCLIP
93430-10016-00
Superseded by 99006-10600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
STOPPER, SCREW
278-18127-00-00
Superseded by 278-18127-01-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER
90215-08015-00
|
$4.35 | ||
|
Unavailable |
|||
