1974 Yamaha DT250 Flywheel Magneto Dt250a OEM Parts

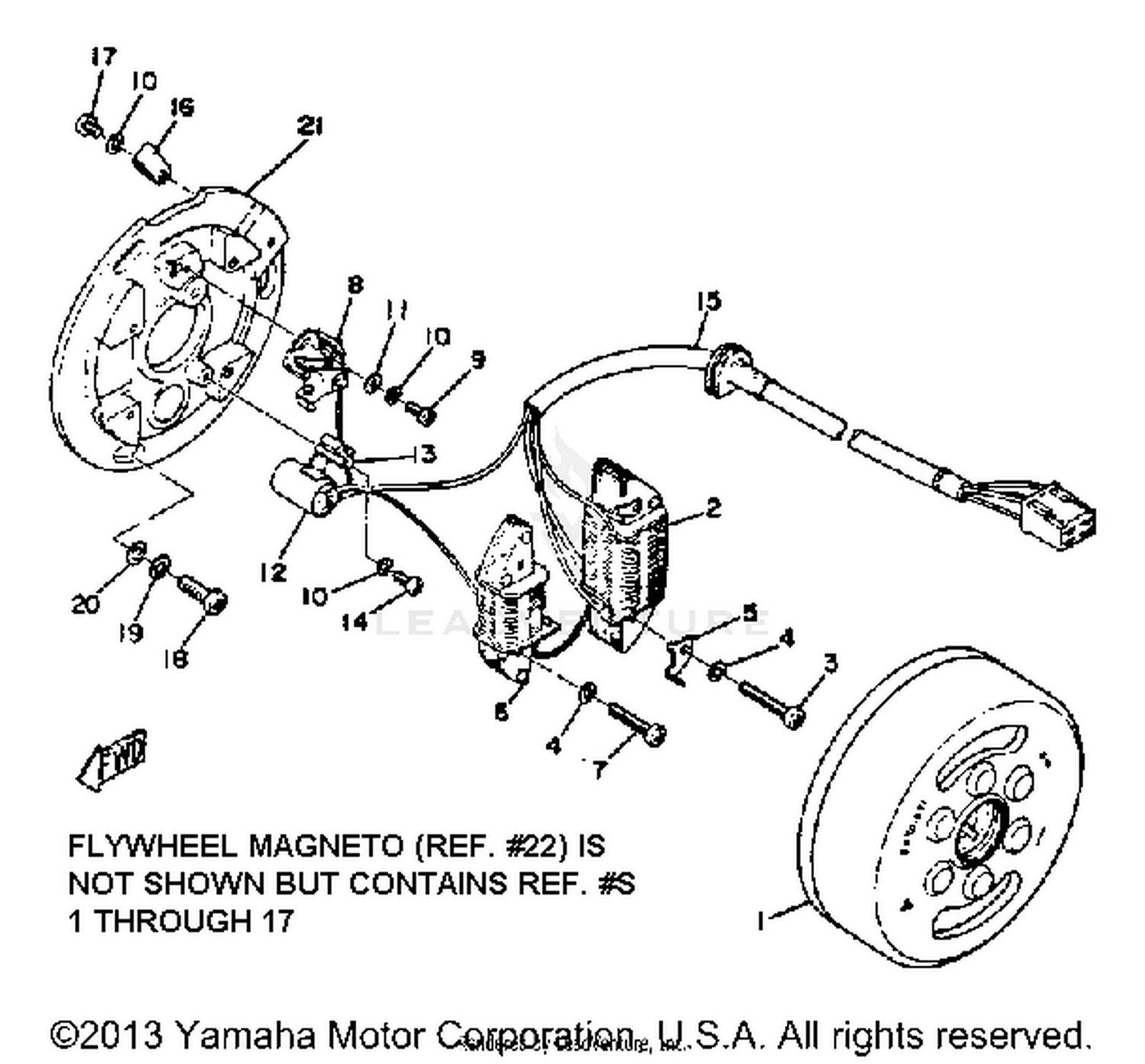

Flywheel Magneto Dt250a Diagram

Item	MSRP	Qty
#1 ROTOR ASSEMBLY 1M1-81350-20-00	$472.99
Unavailable
#3 COIL, LIGHTING 1 498-81313-21-00	$72.94
Unavailable
# SCREW, PAN HEAD 98501-05035-00 Superseded by 98507-05035-00	$7.49
Available to order. Add to View Price
#4 WASHER, SPRING 92903-05100-00 Superseded by 92990-05100-00	$0.30
Available to order. Add to View Price
#5 PLATE, TIMING 438-81332-20-00	$3.50
Unavailable
#6 COIL, SOURCE 438-81312-20-00	$65.88
Unavailable
#7 SCREW, PAN HEAD 98503-05020-00 Superseded by 98580-05020-00	$1.40
Available to order. Add to View Price
#8 CONTACT BREAKER ASSEMBLY (R.H 1M1-81321-20-00	$109.99
Available to order. Add to View Price
#9 SCREW, PAN HEAD 98503-05020-00 Superseded by 98580-05020-00	$1.40
Unavailable
#10 WASHER, SPRING 92901-04100-00 Superseded by 92990-04100-00	$0.80
Available to order. Add to View Price
#11 WASHER, PLAIN 92901-04200-00 Superseded by 92990-04200-00	$1.75
Available to order. Add to View Price
#12 CONDENSER 654-81325-20-00	$42.99
Available to order. Add to View Price
#13 LUBRICATOR 116-81331-20-00	$10.49
Available to order. Add to View Price
#14 SCREW, PAN HEAD 110-81347-21-00 Superseded by 110-81346-21-00	$5.49
Available to order. Add to View Price
#15 LEAD WIRE ASSEMBLY 438-81315-20-00	$19.80
Unavailable
#16 CLAMP 109-81328-11-00	$9.49
Unavailable
#17 SCREW, PAN HEAD 110-81345-21-00 Superseded by 98517-04006-00	$4.15
Available to order. Add to View Price
#18 SCREW, PAN HEAD 92503-06020-00 Superseded by 98580-06020-00	$7.49
Available to order. Add to View Price
#19 WASHER, SPRING 92903-06100-00 Superseded by 92995-06100-00	$3.20
Available to order. Add to View Price
#20 WASHER, PLAIN 92903-06200-00 Superseded by 92990-06200-00	$3.55
Available to order. Add to View Price
#21 BASE, MAGNETO 438-81309-20-00	$34.99
Unavailable
#22 FLYWHEEL MAGNETO ASSEMBLY 438-81300-21-00	$245.99
Unavailable
