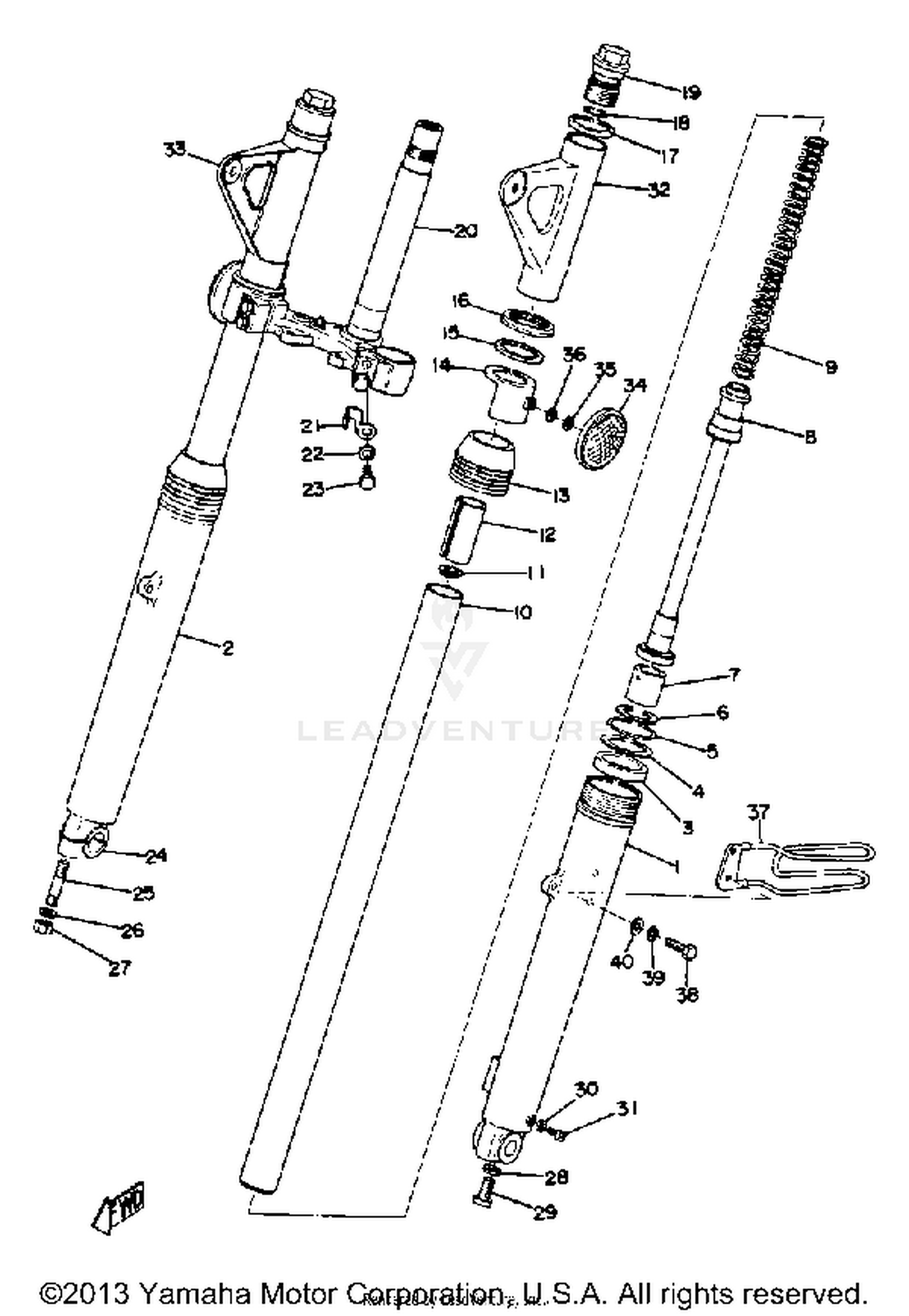

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
498-23101-01-00
|
$375.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
498-23126-00-00
|
$174.99 | ||
|
Unavailable |
|||
|
#3
OIL SEAL
278-23145-51-00
Superseded by 584-23145-50-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, OIL SEAL
214-23146-00-00
|
$7.48 | ||
|
Unavailable |
|||
|
#5
CLIP, OIL SEAL
214-23156-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#6
TUBE, OUTER 2
498-23136-00-00
|
$174.99 | ||
|
Unavailable |
|||
|
#7
BOLT, STUD
90116-08261-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL
278-23145-51-00
Superseded by 584-23145-50-00
|
$59.99 | ||
|
Unavailable |
|||
|
#9
WASHER, OIL SEAL
214-23146-00-00
|
$7.48 | ||
|
Unavailable |
|||
|
#10
CLIP, OIL SEAL
214-23156-00-00
|
$6.68 | ||
|
Unavailable |
|||
|
#11
CIRCLIP, INNER
93450-30033-00
|
$5.49 | ||
|
Unavailable |
|||
|
#12
PISTON, FRONT FORK
434-23171-00-00
|
$10.18 | ||
|
Unavailable |
|||
|
#13
CYLINDER, FRTFRK
498-23170-00-00
|
$56.74 | ||
|
Unavailable |
|||
|
#14
SPRING, FRONT FORK
214-23141-00-00
|
$37.32 | ||
|
Unavailable |
|||
|
#15
TUBE, INNER 1
291-23124-60-00
|
$157.99 | ||
|
Unavailable |
|||
|
#16
SEAT, SPRING UPPER
278-23142-50-00
|
$8.99 | ||
|
Unavailable |
|||
|
#17
SPACER
498-23118-00-00
|
$8.06 | ||
|
Unavailable |
|||
|
#18
SEAL, DUST
278-23144-50-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, OUTER 1
275-23122-60-00
|
$11.99 | ||
|
Unavailable |
|||
|
#20
GASKET (LAMP STAY)
291-23163-61-00
|
$7.99 | ||
|
Unavailable |
|||
|
#21
GUIDE, COVER LOWER
447-23116-52-00
|
$24.99 | ||
|
Unavailable |
|||
|
#22
GUIDE, COVER UPPER
168-23115-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#23
GASKET
214-23114-00-00
|
$6.48 | ||
|
Unavailable |
|||
|
#24
BOLT, CAP
291-23111-60-00
|
$43.24 | ||
|
Unavailable |
|||
|
#
BOLT, CAP
366-23111-60-00
|
$39.99 | ||
|
Unavailable |
|||
|
#25
UNDER BRACKET
456-23340-31-33
|
$79.99 | ||
|
Unavailable |
|||
|
#26
HOLDER, CABLE 1
256-23318-60-00
|
$3.30 | ||
|
Unavailable |
|||
|
#27
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLIP
90468-23060-00
|
$0.99 | ||
|
Unavailable |
|||
|
#29
BOLT, WITH WASHER
18G-23128-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOLDER, AXLE (291-23167-60)
291-23167-61-00
|
$44.99 | ||
|
Unavailable |
|||
|
#32
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
COVER, UPPER 1
438-23121-00-20
|
$41.99 | ||
|
Unavailable |
|||
|
#38
COVER, UPPER 2
438-23131-00-20
|
$41.99 | ||
|
Unavailable |
|||
|
#39
REFLECTOR, FRONT 1
355-85111-01-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#41
DAMPER 1
498-21541-01-00
|
$4.15 | ||
|
Unavailable |
|||
|
#42
HOLDER, CABLE 1
498-23318-01-00
|
$25.04 | ||
|
Unavailable |
|||
|
#43
HOLDER, CABLE 2
498-23319-01-00
|
$9.28 | ||
|
Unavailable |
|||
|
#44
BOLT
97011-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#46
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
