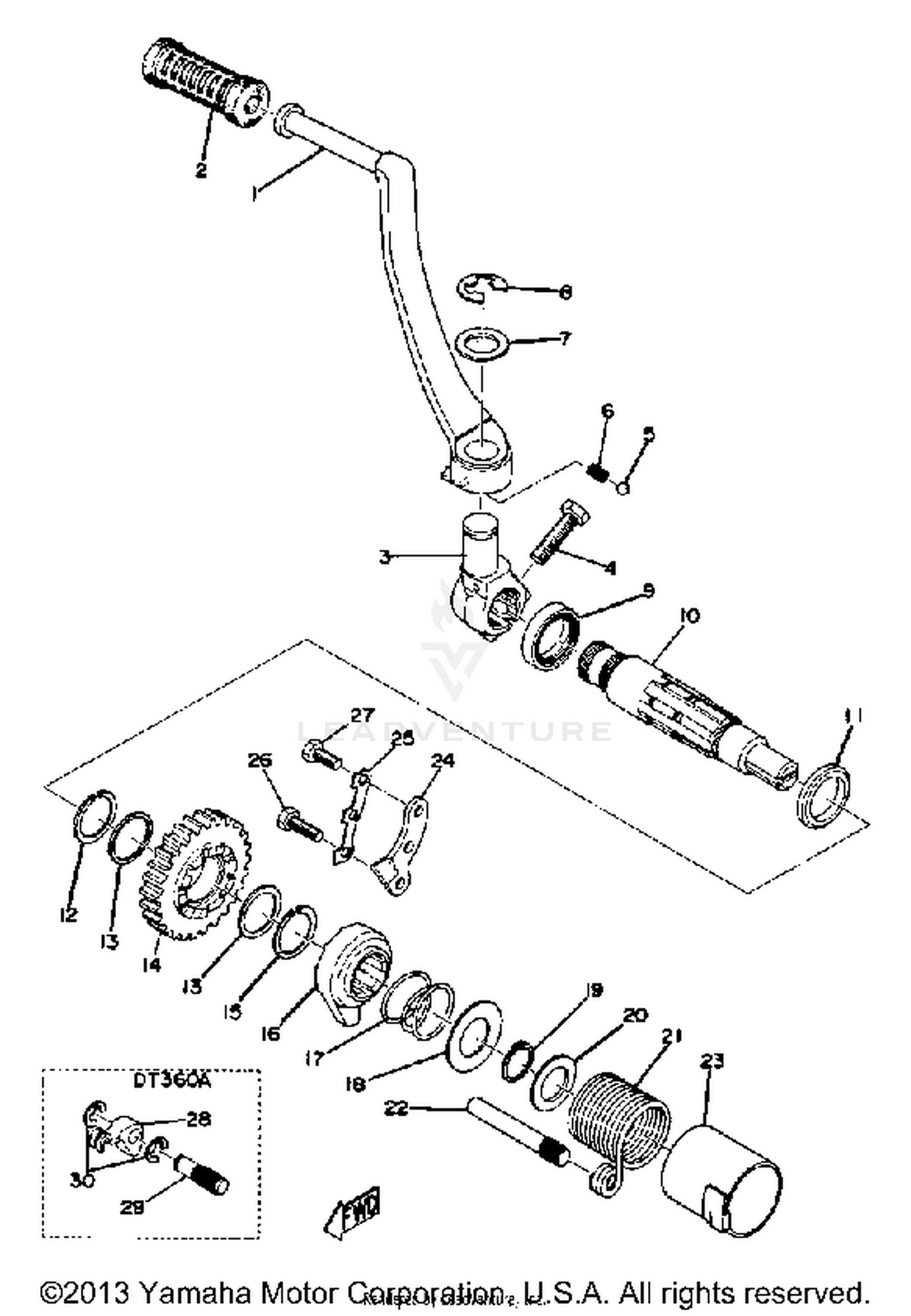

Kick Starter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANK, KICK
363-15611-01-91
|
|||
|
Unavailable |
|||
|
#2
COVER, KICK LEVER
156-15618-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOSS, KICK CRANK
363-15621-00-00
|
$15.48 | ||
|
Unavailable |
|||
|
#4
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#5
BALL
93507-32009-00
Superseded by 93507-32031-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPRING, COMPRESSION
90501-12081-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
90201-17256-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP (E-12)
93430-12022-00
|
$1.40 | ||
|
Unavailable |
|||
|
#9
OIL SEAL
93102-25064-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
AXLE, KICK
363-15661-01-00
|
$45.96 | ||
|
Unavailable |
|||
|
#11
WASHER, PLATE (0.9T)
90201-25290-00
Superseded by 90201-256K6-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#
SPACER, KICK AXLE
90560-25045-00
|
$2.65 | ||
|
Unavailable |
|||
|
#12
CIRCLIP
93440-25020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE (T=1.0)
256-17154-00-10
Superseded by 90201-253K0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GEAR, KICK (26T)
363-15641-00-00
|
$29.38 | ||
|
Unavailable |
|||
|
#15
CIRCLIP
93440-25019-00
Superseded by 93440-25084-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WHEEL, RATCHET
363-15671-01-00
Superseded by 583-15671-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING
90501-23143-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, SPRING
363-15676-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CIRCLIP
93410-19015-00
Superseded by 99009-19400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90201-20278-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, KICK
90508-32060-00
|
$8.99 | ||
|
Unavailable |
|||
|
#22
STOPPER, KICK SPRING
257-15668-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#
STOPPER, KICK SPRING
364-15668-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#23
GUIDE, SPRING
498-15664-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#24
GUIDE, RATCHET WHEEL
363-15674-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#25
WASHER, LOCK
363-15686-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT
97301-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, HEXAGON DEEP R
97301-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#28
LINK
363-15656-00-00
|
$10.18 | ||
|
Unavailable |
|||
|
#29
SHAFT
363-15659-00-00
|
$0.57 | ||
|
Unavailable |
|||
|
#30
CIRCLIP
93430-07020-00
Superseded by 99080-07600-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
