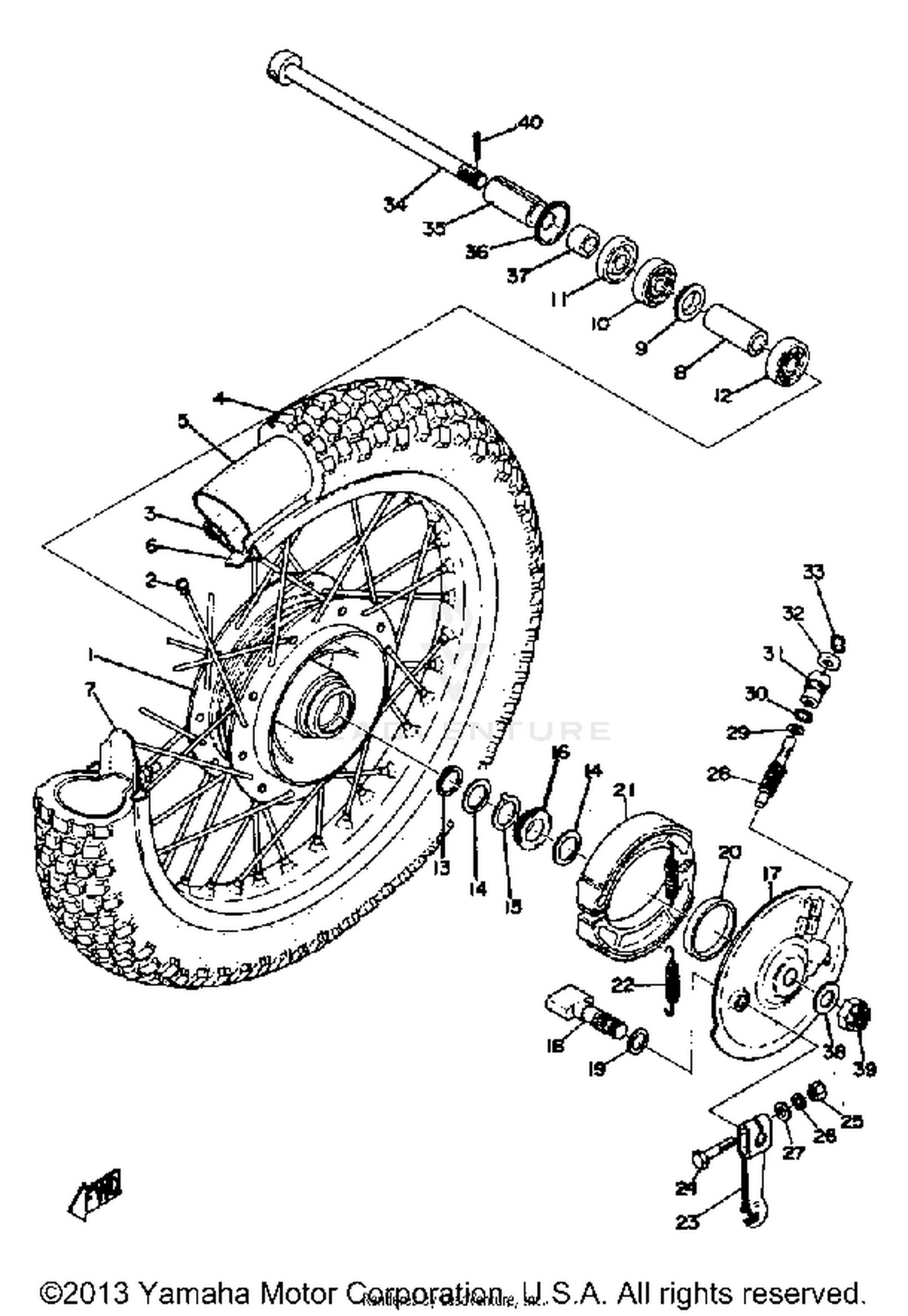

Front Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, FRONT
227-25111-00-00
|
$113.99 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, FRONT
438-25104-00-00
|
$66.58 | ||
|
Unavailable |
|||
|
#3
RIM 1.60X21
94416-21038-00
|
$58.99 | ||
|
Unavailable |
|||
|
#4
TIRE 300X21 DUN TRIUNI
94130-21316-00
|
$50.99 | ||
|
Unavailable |
|||
|
#5
TUBE (80/100-21 M/C TR4)
94203-21316-00
|
|||
|
Unavailable |
|||
|
#6
BAND, RIM
94327-21024-00
|
$4.60 | ||
|
Unavailable |
|||
|
#7
SPACER, BEAD
1T1-25194-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPACER
214-25117-00-00
Superseded by 90560-15293-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
FLANGE, SPACER 2
136-25115-00-00
Superseded by 146-25116-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING
93306-20201-00
Superseded by 93306-20211-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
OIL SEAL
93102-20009-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BEARING
93306-20204-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CIRCLIP
93410-22014-00
Superseded by 99009-22400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER
90201-22283-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLUTCH, METER
214-25149-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
GEAR, DRIVE
308-25135-00-00
|
$57.99 | ||
|
Unavailable |
|||
|
#17
PLATE, BRAKE SHOE
438-25120-10-00
|
$65.99 | ||
|
Unavailable |
|||
|
#18
CAMSHAFT
214-25151-00-00
|
$13.49 | ||
|
Unavailable |
|||
|
#19
SHIM
90201-25286-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
OIL SEAL, SDD-TYPE (SDD-50-62-7
93105-50010-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRAKE SHOE KIT
214-25130-00-00
Superseded by 3GW-W253A-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPRING, TENSION
90507-20002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
LEVER, CAMSHAFT 1
214-25155-01-00
|
$55.99 | ||
|
Unavailable |
|||
|
#24
BOLT
97313-06030-00
Superseded by 97013-06030-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT
95303-03600-00
|
|||
|
Unavailable |
|||
|
#26
WASHER, SPRING
92903-06100-00
Superseded by 92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLAIN
92903-06200-00
Superseded by 92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#28
GEAR, METER
308-25138-00-00
|
$43.99 | ||
|
Unavailable |
|||
|
#29
WASHER, PLATE
90201-07076-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING
93210-14104-00
Superseded by 93210-14579-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BUSH
109-25136-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
OIL SEAL, SO-TYPE
93104-07003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
RING, STOP
102-25137-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
AXLE, WHEEL
275-25181-00-00
|
$73.99 | ||
|
Unavailable |
|||
|
#35
COLLAR
90387-15117-00
|
$4.35 | ||
|
Unavailable |
|||
|
#36
COVER, HUB DUST
214-25118-00-00
Superseded by 1R0-25118-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
COLLAR (136-25183-00)
90387-15111-00
Superseded by 90387-157G5-00
|
$11.99 | ||
|
Unavailable |
|||
|
#38
WASHER, PLAIN
92901-14200-00
Superseded by 92990-14200-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#39
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
