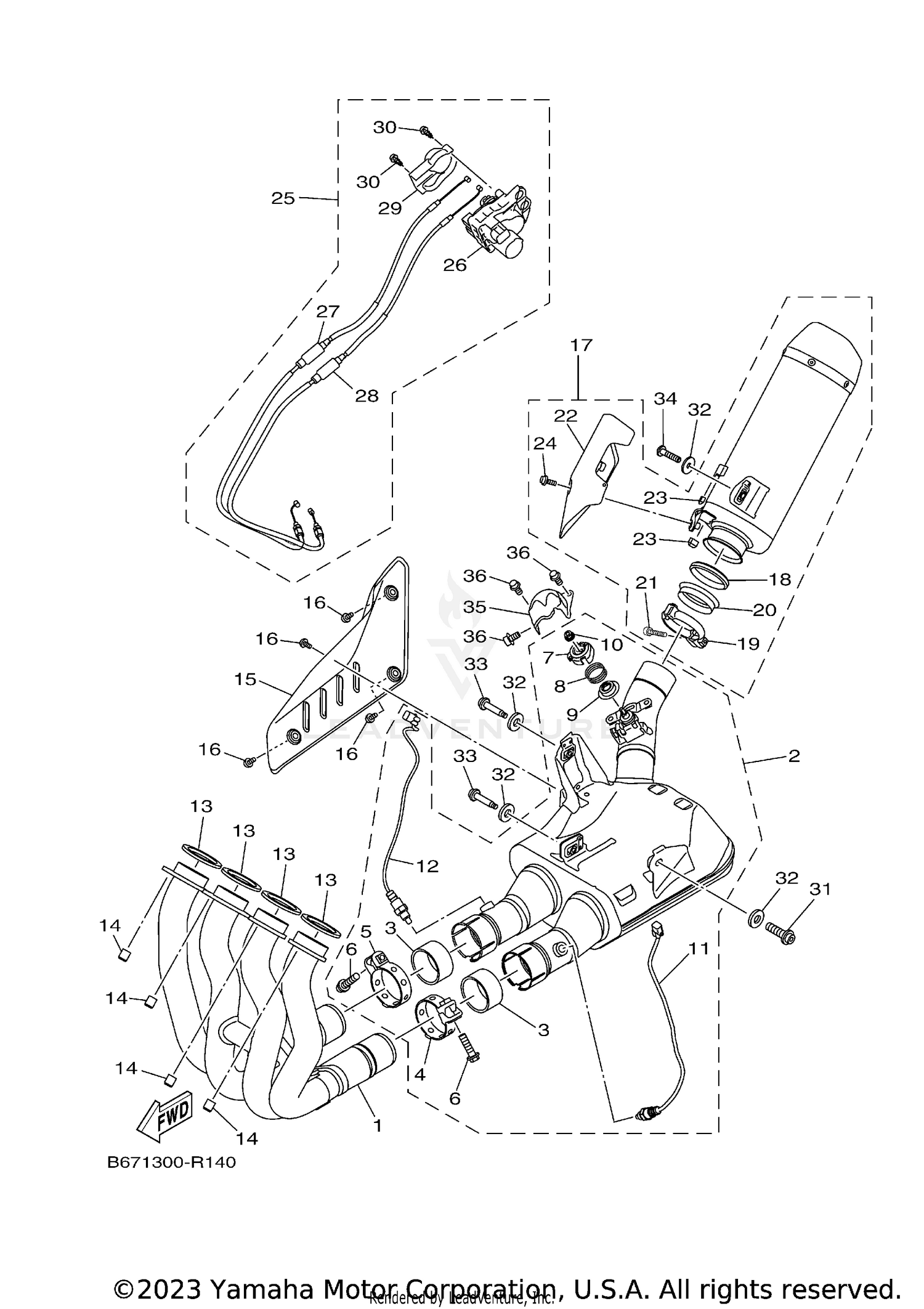

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
EXHAUST PIPE COMP.
B60-14602-00-00
|
$881.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CHAMBER ASSY
B67-14730-10-00
|
$820.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET, MUFFLER
5YU-14714-10-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BAND, MUFFLER
39P-14715-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BAND, MUFFLER
2CR-14715-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE (SMALL HEAD)
95024-08035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PULLEY
2C0-14865-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING
2C0-14856-00-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAT, SPRING
2D1-14843-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT
90179-06063-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#11
SENSOR, OXYGEN
1WS-8592A-00-00
Superseded by 1WS-8592A-10-00
|
$215.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SENSOR, OXYGEN
2CR-8592A-10-00
Superseded by 2CR-8592A-20-00
|
$218.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, EXHAUST PIPE
2CR-14613-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
90179-08442-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PROTECTOR, MUFFLER 1
B67-14718-00-00
|
$200.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT,HEX. SOCKET BUT
90111-06163-00
Superseded by 90111-06164-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#17
SILENCER ASSY
B67-14750-00-00
|
$1,697.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET, EXHAUST PIPE
2CR-14623-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND, MUFFLER
2CR-14725-00-00
|
$45.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
RING, STOPPER
2CR-14618-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
90110-06343-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#22
PROTECTOR, MUFFLER 2
B67-14728-00-00
|
$257.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
DAMPER, MUFFLER
5S7-14737-00-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT
B67-14777-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SERVO MOTOR COMP
B67-4616A-00-00
|
$308.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
SERVO MOTOR ASSY
2CR-85820-00-00
|
$218.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
CABLE, PULLEY 1
B67-1133E-00-00
|
$104.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CABLE, PULLEY 2
B67-1133F-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COVER, SERVO MOTOR
5VY-85829-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, TAPPING
97702-50514-00
Superseded by 97780-50514-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
90110-08099-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, PLATE
90201-087G2-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT
90109-08238-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT, HEXAGON SOCKET HEAD
90110-08071-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PROTECTOR, EXHAUST
B67-14826-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, WITH WASHER
90119-06115-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
