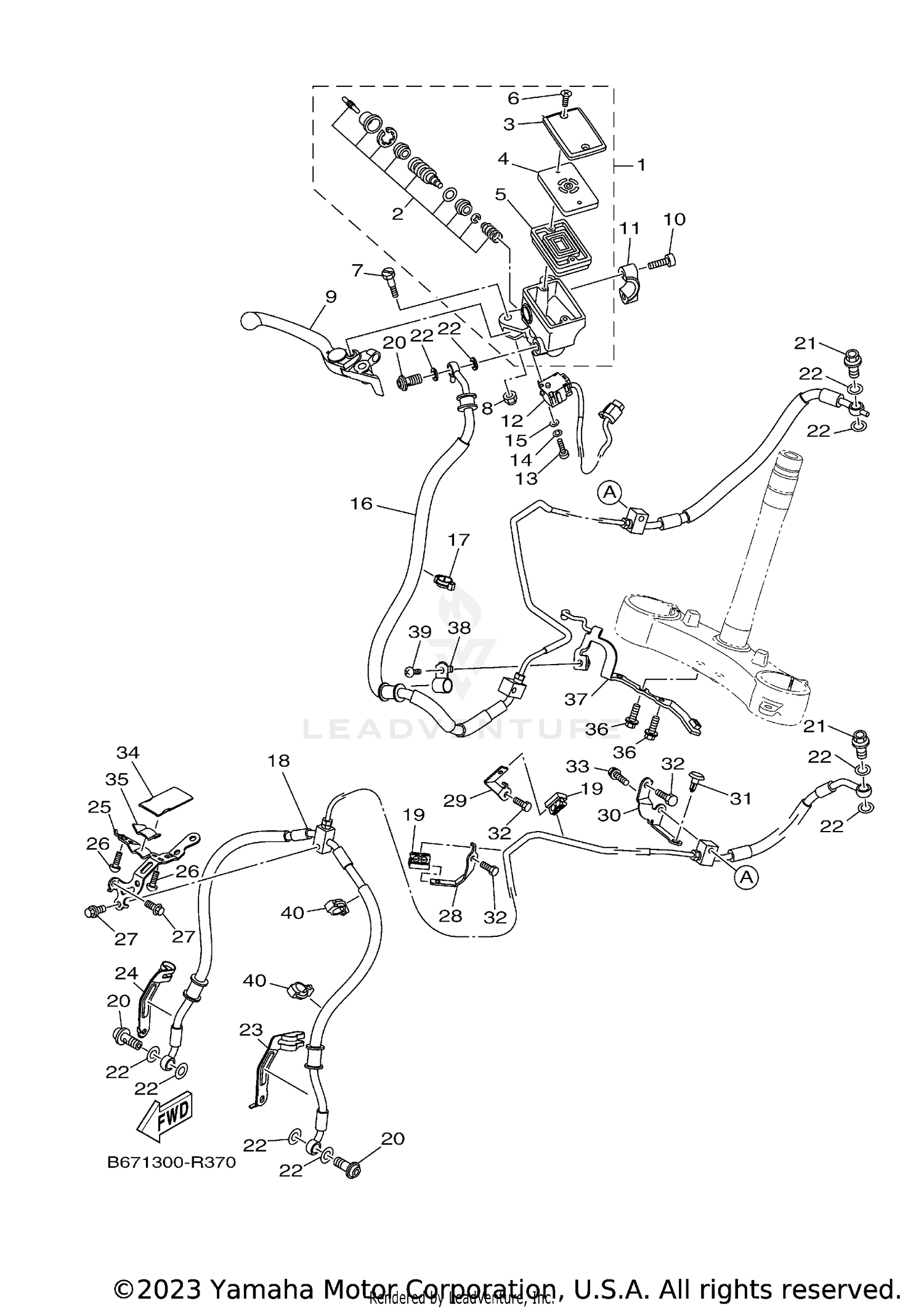

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY 2
1XB-2580A-00-00
|
$242.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CYLINDER KIT, MASTER
1WS-25807-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
CAP, RESERVOIR
5VS-25852-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH, DIAPHRAGM
5VS-25855-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DIAPHRAGM, RESERVOIR
20S-25854-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW
5VS-2589H-00-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, LEVER
5VS-2589F-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, S/L
95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
LEVER 2
5VS-83922-00-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT
5VS-26332-00-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, MASTER CYLINDER
5VS-25867-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
FRONT STOP SWITCH AS
B67-83980-00-00
Superseded by B67-83980-02-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW,PANHEAD
98502-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING
92902-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
92902-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BRAKE HOSE ASSY
B67-2584A-00-00
|
$199.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLAMP
90464-14003-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE, BRAKE
B67-2584B-00-00
|
$241.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90464-07014-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, UNION
90401-10049-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#22
GASKET
90430-10005-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
HOLDER, BRAKE HOSE 1
2CR-25875-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOLDER, BRAKE HOSE 2
2CR-25876-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
BRACKET
B67-2612E-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, HEX. SOCKET BUTTON
92017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT, FLANGE
95027-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
BRACKET 2
2CR-2612K-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
BRACKET 3
2CR-2612L-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
BRACKET 4
B67-2612M-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
RIVET
90269-08005-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, HEXAGON DEEP R
97022-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE
95022-06030-00
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#34
DAMPER
3YL-12232-00-00
Superseded by 5H0-8235Y-M0-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
DAMPER, LOCATING 1
2CR-2622F-00-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT, HEXAGON SOCKET HEAD
90110-06218-00
Superseded by 90110-06219-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BRACKET, HORN
B67-23377-00-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLAMP
90461-10132-00
Superseded by 90461-08031-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, BUTTON HEAD
92012-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLAMP
90464-12013-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
