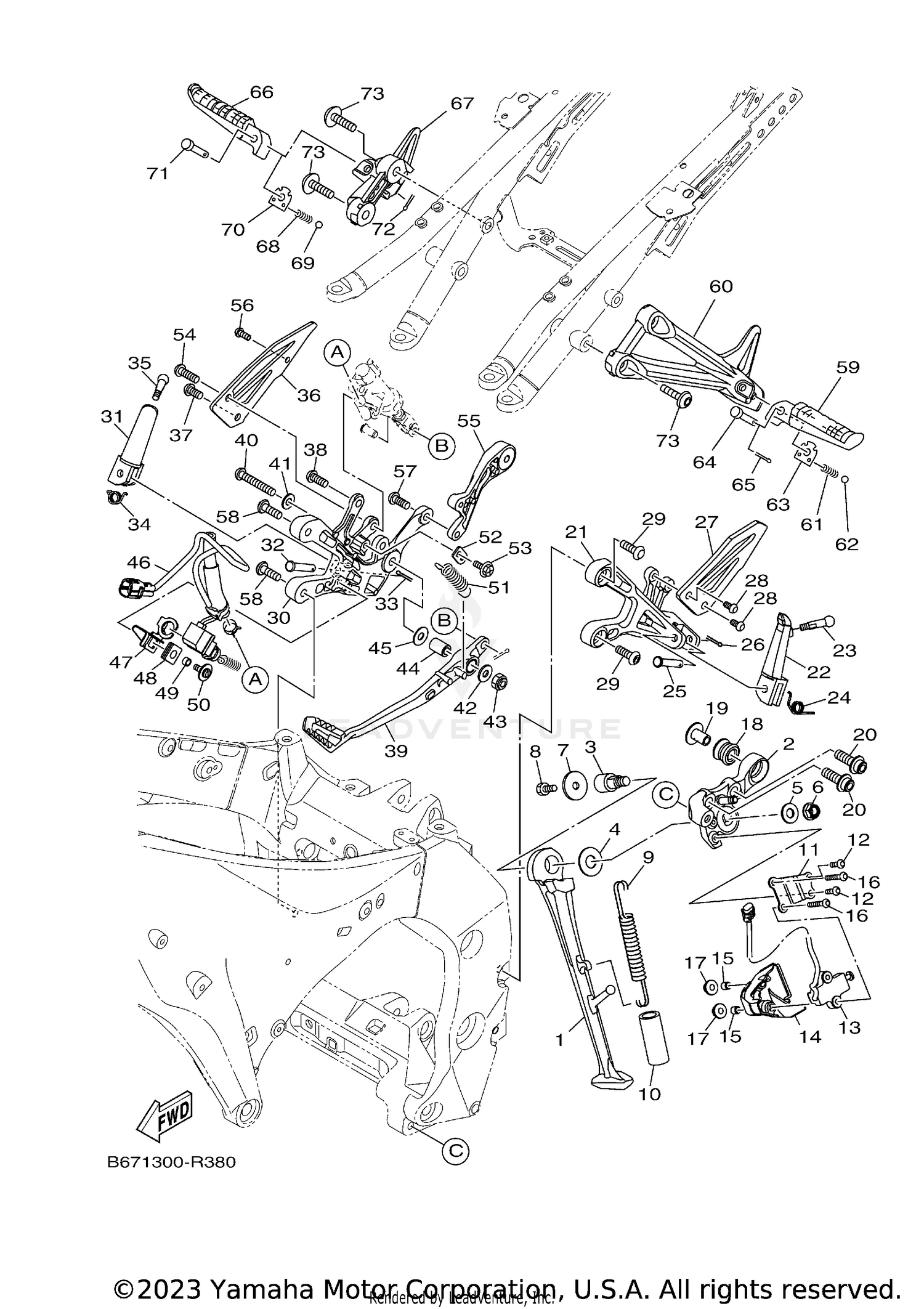

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
STAND, SIDE
B67-27311-00-00
|
$224.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BRACKET, SIDE STAND
B67-27321-00-00
|
$218.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GUIDE, SIDE STAND
2C0-27351-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-146F9-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-10035-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, S/L FLANGE
95602-10200-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90201-08050-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT
90101-08662-00
Superseded by 97017-08020-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TENSION
90506-20032-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOSE (L60)
90445-197J2-00
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET, SENSOR 1
14B-27961-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, BUTTON HEAD
92012-05016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
SWITCH, SIDE STAND
2CR-82566-00-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER ASSY
2CR-27406-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-05025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, BUTTON HEAD
92012-05030-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
NUT, U FLANGE
95602-05200-00
Superseded by 95607-05200-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER, MUFFLER
5VY-14747-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR
90387-08021-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEXAGON SOCKET
90109-10002-00
Superseded by 90110-10026-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BRACKET 2
B67-27442-00-00
|
$92.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
FOOTREST
3XV-27451-02-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90109-08231-00
Superseded by 90109-08202-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING, TORSION
90508-18134-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, CLEVIS
91701-08040-00
Superseded by 91702-08040-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#26
PIN. COTTER
91402-25015-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#27
PLATE 1
B67-27445-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, BUTTON HEAD
90111-06065-00
Superseded by 92012-06012-00
|
$4.10 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT
90111-08085-00
Superseded by 90109-085G6-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
BRACKET 3
B67-27443-00-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
FOOTREST
3XV-27461-02-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
PIN, CLEVIS
91701-08040-00
Superseded by 91702-08040-00
|
$4.10 | ||
|
Unavailable |
|||
|
#33
PIN. COTTER
91402-25015-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#34
SPRING, TORSION
90508-18135-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT
90109-08231-00
Superseded by 90109-08202-00
|
$4.50 | ||
|
Unavailable |
|||
|
#36
PLATE 2
B67-27446-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
BOLT, BUTTON HEAD
92012-08016-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, BUTTON HEAD
92012-08020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#39
PEDAL, BRAKE
B67-27211-00-00
|
$114.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
BOLT, BUTTON HEAD
92012-08050-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER
92902-08200-00
|
$0.25 | ||
|
Available to order. Add to View Price |
|||
|
#42
WASHER, PLATE
90201-08048-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
NUT, SELF-LOCKING
90185-08089-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
COLLAR
90387-08102-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER, PLATE
90201-08103-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#46
STOP SWITCH ASSY
B67-82530-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
STAY, STOP SWITCH
B67-2144G-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
GROMMET
90480-12607-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#49
COLLAR
90387-06M16-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#50
SCREW, WITH WASHER
90159-06150-00
Superseded by 90159-06082-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#51
SPRING, TENSION
90506-23008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
BRACKET 1
B67-27432-00-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#53
BOLT, FLANGE
95802-06010-00
Superseded by 95812-06010-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#54
BOLT, BUTTON HEAD
92012-08025-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#55
STAY, MUFFLER 3
B67-21487-00-00
|
$106.99 | ||
|
Available to order. Add to View Price |
|||
|
#56
BOLT, BUTTON HEAD
92012-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#57
BOLT, BUTTON HEAD
92012-08020-00
|
$6.49 | ||
|
Unavailable |
|||
|
#58
BOLT
90111-08085-00
Superseded by 90109-085G6-00
|
$3.05 | ||
|
Unavailable |
|||
|
#59
FOOTREST, REAR 1
3VR-27431-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#60
BRACKET 4
1RC-2741L-01-00
Superseded by 1RC-2741L-02-00
|
$64.99 | ||
|
Unavailable |
|||
|
#61
SPRING, COMPRESSION
90501-12743-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#62
BALL
93501-04011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#63
WASHER, SPECIAL
5VX-27437-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#64
PIN, CLEVIS
91702-08040-00
|
$4.10 | ||
|
Unavailable |
|||
|
#65
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#66
FOOTREST, REAR 2
3VR-27441-02-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
BRACKET 5
B67-2742L-00-00
Superseded by B67-2742L-01-00
|
$64.99 | ||
|
Unavailable |
|||
|
#68
SPRING, COMPRESSION
90501-12743-00
|
$3.90 | ||
|
Unavailable |
|||
|
#69
BALL
93501-04011-00
|
$7.49 | ||
|
Unavailable |
|||
|
#70
WASHER, SPECIAL
5VX-27437-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#71
PIN, CLEVIS
91702-08040-00
|
$4.10 | ||
|
Unavailable |
|||
|
#72
PIN. COTTER
91401-25015-00
Superseded by 91490-25020-00
|
$3.00 | ||
|
Unavailable |
|||
|
#73
BOLT, BUTTON HEAD
90149-08230-00
Superseded by 92017-08020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
