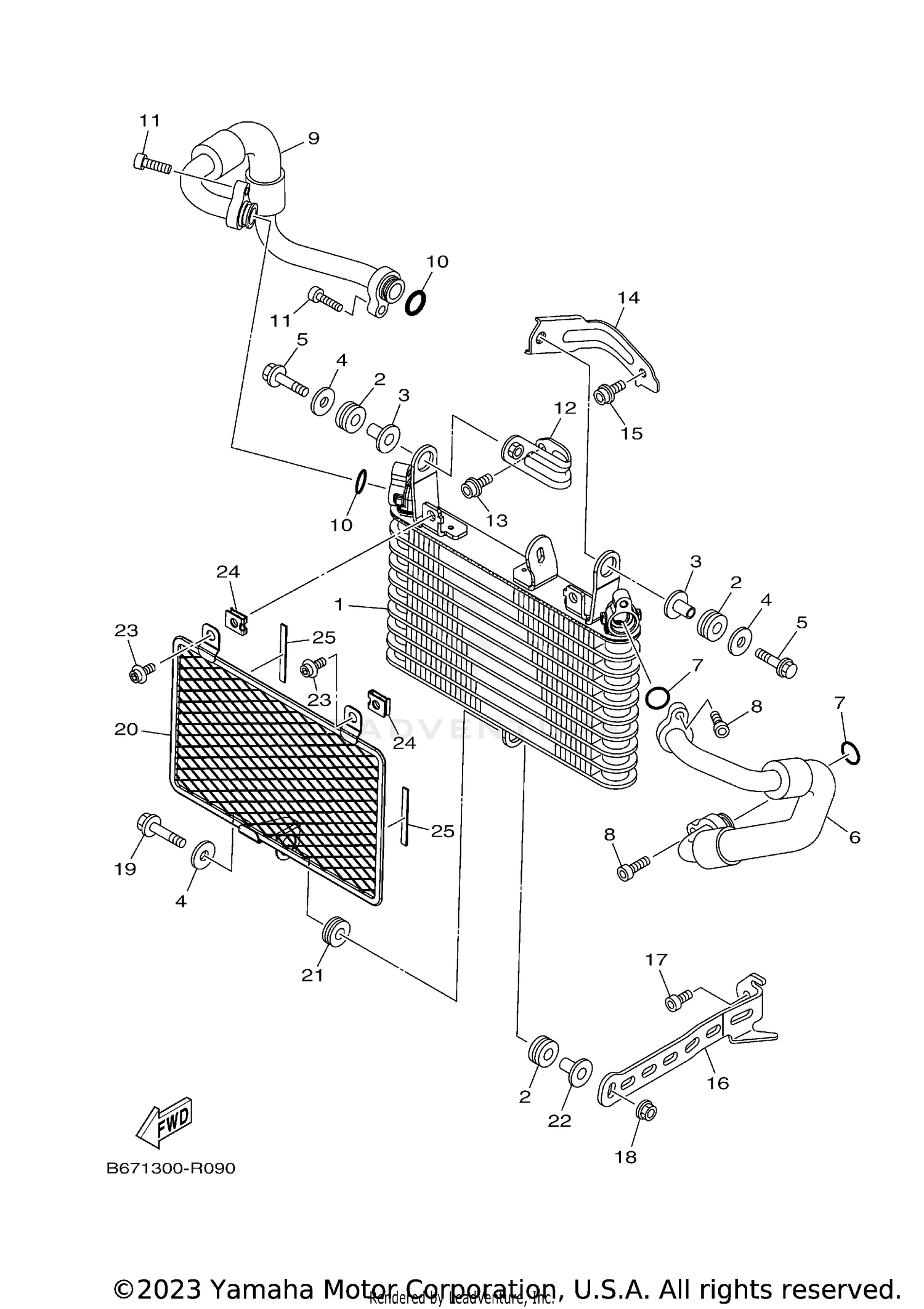

Oil Cooler Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
OIL COOLER ASSY
B67-13470-00-00
|
$350.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GROMMET
90480-15363-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-0614M-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-06071-00
Superseded by 90201-063J2-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOLT, HEXAGON SOCKET HEAD
90110-06346-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
HOSE, OIL 1
2CR-13464-00-00
|
$211.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
O-RING
93210-13657-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, HEXAGON SOCKET HEAD
90110-06211-00
Superseded by 91314-06020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
HOSE, OIL 2
2CR-13465-00-00
|
$205.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
93210-13657-00
|
$6.49 | ||
|
Unavailable |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
90110-06211-00
Superseded by 91314-06020-00
|
$1.40 | ||
|
Unavailable |
|||
|
#12
STAY
2CR-13151-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
90110-06341-00
|
$2.90 | ||
|
Available to order. Add to View Price |
|||
|
#14
STAY 2
2CR-13152-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, HEXAGON SOCKET HEAD
90110-06341-00
|
$2.90 | ||
|
Unavailable |
|||
|
#16
STAY
B67-13782-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
90110-06341-00
|
$2.90 | ||
|
Unavailable |
|||
|
#18
NUT, U FLANGE
95607-06200-00
Superseded by 95604-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT, FLANGE
95827-06040-00
Superseded by 95817-06040-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER, OIL COOLER
B67-13463-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
GROMMET, ANODE
27D-11328-00-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-06098-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, HEXAGON SOCKET HEAD
90110-06400-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT 1
5SL-12671-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER
2CR-13381-00-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
