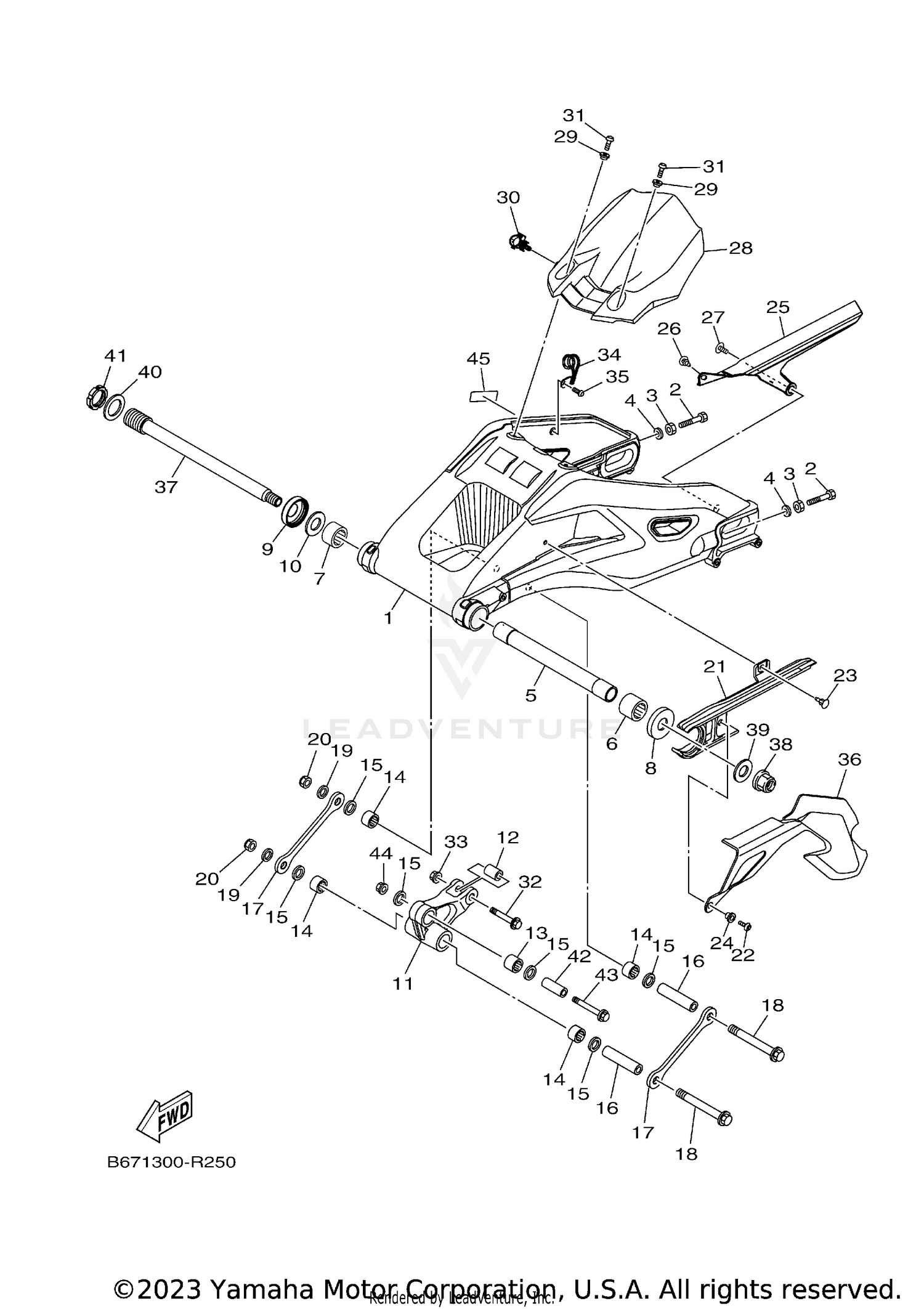

Rear Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM COMP.
B67-22110-00-00
Superseded by B67-22110-09-00
|
$2,236.99 | ||
|
Unavailable |
|||
|
#2
BOLT
90101-08013-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#3
NUT, HEXAGON
95302-08600-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
90201-08057-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BUSH
2CR-22184-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING
93317-52897-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BEARING
93317-428U8-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, THRUST 1
5VY-22128-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER, THRUST 1
4C8-22128-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-22019-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
ARM, RELAY
2CR-2217A-00-00
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-1012A-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BEARING
93315-31759-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BEARING
93315-31758-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
OIL SEAL
93109-17071-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
COLLAR
90387-126Y1-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
ARM 1
B67-2217M-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
90105-12065-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
92902-12600-00
Superseded by 92907-12600-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, SELF-LOCKING
90185-12011-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SEAL, GUARD
2CR-22151-00-00
Superseded by 2CR-22151-10-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, BUTTON HEAD
92012-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
RIVET
90269-07007-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-062X0-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CASE, CHAIN
B67-22311-00-00
Superseded by B67-22311-01-00
|
$26.99 | ||
|
Unavailable |
|||
|
#26
RIVET
90269-07007-00
|
$3.85 | ||
|
Unavailable |
|||
|
#27
BOLT, HEXAGON SOCKET HEAD
90111-06091-00
Superseded by 90110-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
REAR FENDER COMP.
B67-21650-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-06075-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP
90464-16012-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, BUTTON HEAD
92014-06014-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE
90105-10017-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, S/L FLANGE
95602-10200-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
HOLDER, BRAKE HOSE 5
B67-2588F-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
BOLT, BUTTON HEAD
92012-06016-00
|
$7.49 | ||
|
Unavailable |
|||
|
#36
COVER ASSY 1
B67-228A0-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
SHAFT, PIVOT
14B-22141-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT, SELF-LOCKING
90185-20008-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, PLATE
90201-20026-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
90201-30016-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
NUT
4C8-22252-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
COLLAR
90387-1012B-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT
90109-10017-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT, S/L FLANGE
95602-10200-00
|
$4.55 | ||
|
Unavailable |
|||
|
#45
LABEL, TIRE
2CR-21668-00-00
Superseded by 2CR-21668-01-00
|
$2.20 | ||
|
Unavailable |
|||
