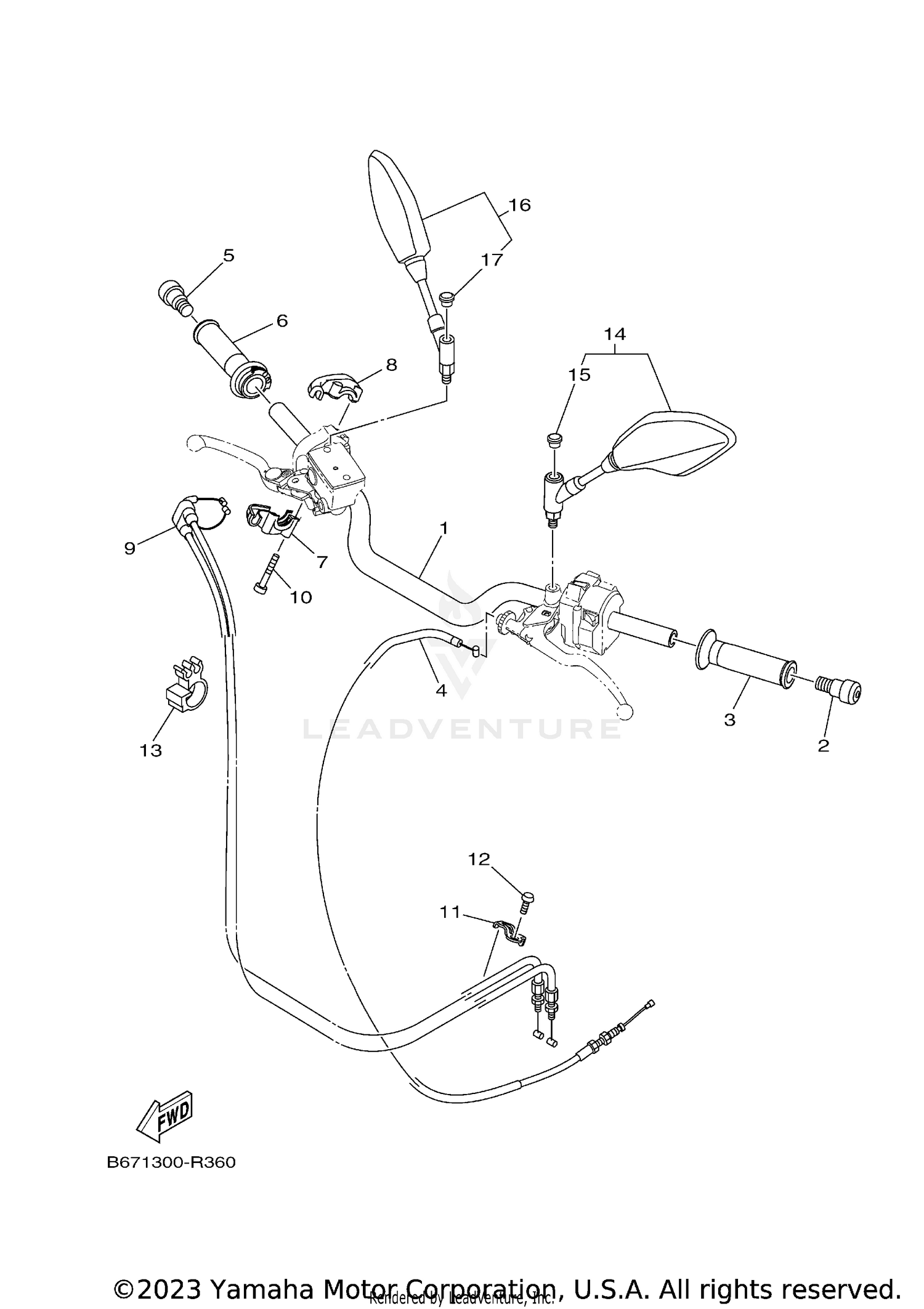

Steering Handle Cable Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HANDLEBAR
B67-26111-00-00
|
$277.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
END, GRIP
5GJ-26246-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
GRIP
4YR-26241-02-00
Superseded by 4YR-26241-03-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WIRE, CLUTCH
B67-26335-00-00
Superseded by B67-26335-01-00
|
$37.99 | ||
|
Unavailable |
|||
|
#5
END, GRIP
5GJ-26246-00-00
|
$26.99 | ||
|
Unavailable |
|||
|
#6
GRIP ASSY
4YR-26240-02-00
Superseded by 4YR-26240-03-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP, GRIP UPPER
1WS-26281-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, GRIP UNDER
1WS-26282-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
THROTTLE CABLE ASSY
B67-26302-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, HEX. SOCKET HEAD
91317-05040-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP, WIRE
2CR-2627E-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, BUTTON HEAD
92014-06012-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90464-16023-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#14
REAR VIEW MIRROR ASS
B67-26280-00-00
Superseded by B67-26280-01-00
|
$73.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP
5PS-26133-20-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
REAR VIEW MIRROR ASS
B67-26290-00-00
Superseded by B67-26290-01-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CAP
5PS-26133-20-00
|
$6.49 | ||
|
Unavailable |
|||
